Suzuki DF 200 Parts Listings 2004 to S/N 20002F-11XXXX 2004 to S/N 20002Z-11XXXX

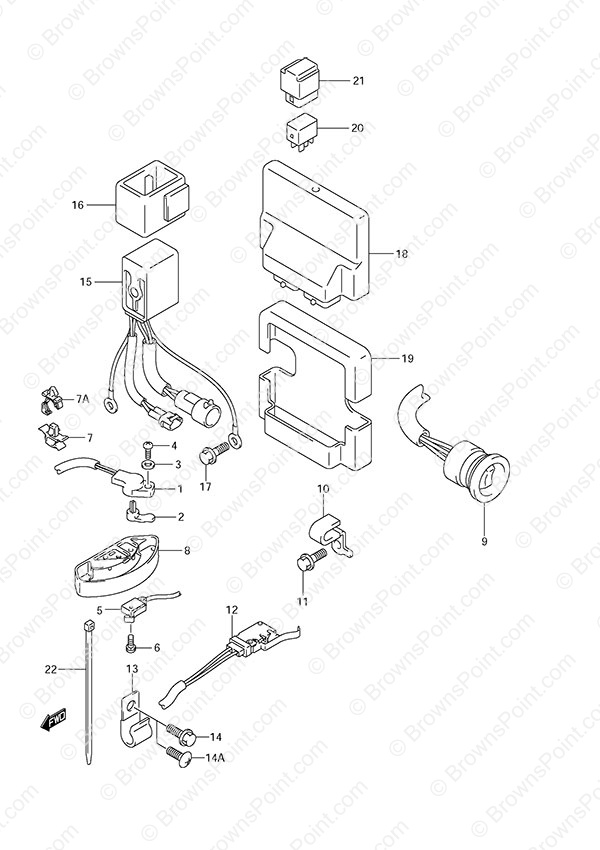

Fig. 35 - PTT Switch/Engine Control Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13580-93J03 Shift Position Sensor Assembly
SKU: 13580-93J03 Weight: 0.250000 Brand: Price: $ 190.66 |
Shift Position Sensor Assembly | 1 | $ 190.66 | ||
| 2 | 37729-93J00 Shift Sensor Lever
SKU: 37729-93J00 Weight: 0.200000 Brand: Price: $ 1.96 |
Shift Sensor Lever | 1 | $ 1.96 | ||
| 3 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 1 | $ 1.70 | ||
| 4 | 02112-35167 SCREW
SKU: 02112-35167 Weight: 0.060000 Brand: Price: $ 2.28 |
SCREW | 1 | $ 2.28 | ||
| 5 | 37721-93J00 Neutral Switch Assembly
SKU: 37721-93J00 Weight: 0.250000 Brand: Price: $ 41.14 |
Neutral Switch Assembly | 1 | $ 41.14 | ||
| 6 | 09137-04004 Screw (4x16)
SKU: 09137-04004 Weight: 0.060000 Brand: Price: $ 2.36 |
Screw (4x16) | 2 | $ 2.36 | ||
| 7 | 09403-07327 Clamp
SKU: 09403-07327 Weight: 0.100000 Brand: Price: $ 2.41 |
Clamp | 1 | $ 2.41 | ||
| 7A | 09403-12412 Clamp
SKU: 09403-12412 Weight: 0.060000 Brand: Price: $ 3.37 |
Clamp | 1 | $ 3.37 | DF200T: S/N 421271 Newer DF200Z: S/N 421071 Newer | |
| 8 | 37725-93J11 Switch Assembly Cover
SKU: 37725-93J11 Weight: 0.125000 Brand: Price: $ 9.56 |
Switch Assembly Cover | 1 | $ 9.56 | ||
| 9 | 37850-99E05 PTT Switch Assembly
SKU: 37850-99E05 Weight: 0.250000 Brand: Price: $ 83.20 |
PTT Switch Assembly | 1 | $ 83.20 | ||
| 10 | 09403-11315 Clamp (NLA)
SKU: 09403-11315 Weight: 0.100000 Brand: Price: $ 3.50 |
Clamp (NLA) | 1 | $ 3.50 | ||
| 11 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 12 | 37722-93J14 Tilt Limit Switch Assembly
SKU: 37722-93J14 Weight: 0.000000 Brand: Price: $ 27.93 |
Tilt Limit Switch Assembly | 1 | $ 27.93 | ||
| 13 | 09403-09316 Clamp (NLA)
SKU: 09403-09316 Weight: 0.100000 Brand: Price: $ 1.22 |
Clamp (NLA) | 1 | $ 1.22 | Type: X | |
| 14 | 29103-93J00 Bolt (6x12)
SKU: 29103-93J00 Weight: 0.060000 Brand: Price: $ 2.05 |
Bolt (6x12) | 1 | $ 2.05 | ||
| 14A | 29125-93J00 Screw (NLA)
SKU: 29125-93J00 Weight: 0.100000 Brand: Price: $ 1.92 |
Screw (NLA) | 1 | $ 1.92 | Type: X DF200T: S/N 110001 Newer DF200Z: S/N 110001 Newer | |
| 15 | 38410-93J12 PTT Relay Assembly
SKU: 38410-93J12 Weight: 0.460000 Brand: Price: $ 136.14 |
PTT Relay Assembly | 1 | $ 136.14 | ||
| 16 | 38415-93J00 PTT Relay Holder
SKU: 38415-93J00 Weight: 0.060000 Brand: Price: $ 6.68 |
PTT Relay Holder | 1 | $ 6.68 | ||
| 17 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 18-1 | 33920-93JC1 Engine Control Unit
SKU: 33920-93JC1 Weight: 2.000000 Brand: Price: $ 2,072.63 |
Engine Control Unit | 1 | $ 2,072.63 | ||
| 18-2 | 33920-93JJ0 Engine Control Unit
SKU: 33920-93JJ0 Weight: 2.000000 Brand: Price: $ 2,151.64 |
Engine Control Unit | 1 | $ 2,151.64 | DF200T: S/N 110001 Newer DF200Z: S/N 110001 Newer | |
| 19 | 33925-93J00 ECU/BCM Cushion
SKU: 33925-93J00 Weight: 0.250000 Brand: Price: $ 8.27 |
ECU/BCM Cushion | 1 | $ 8.27 | ||
| 20 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 36.31 |
Relay | 1 | $ 36.31 | ||
| 21 | 38915-90J00 Relay Holder
SKU: 38915-90J00 Weight: 0.060000 Brand: Price: $ 4.39 |
Relay Holder | 1 | $ 4.39 | ||
| 22 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | w/Transom (L) |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
