Suzuki DF 200 Parts Listings 2004 to S/N 20002F-11XXXX 2004 to S/N 20002Z-11XXXX

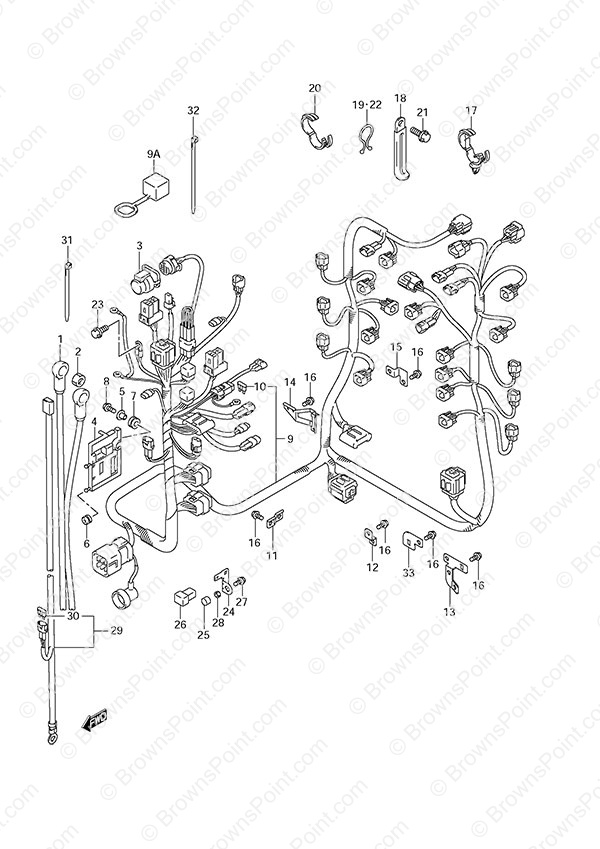

Fig. 34 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-98J01 Starter Motor Cable Assembly
SKU: 33810-98J01 Weight: 5.000000 Brand: Price: $ 306.83 |
Starter Motor Cable Assembly | 1 | $ 306.83 | L:4000 | |
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 1 | $ 2.27 | ||
| 3 | 33634-99E00 Service Connector Cap
SKU: 33634-99E00 Weight: 0.250000 Brand: Price: $ 7.63 |
Service Connector Cap | 1 | $ 7.63 | 2004 to 2007 | |
| 4 | 36616-93J01 Connector Holder
SKU: 36616-93J01 Weight: 0.125000 Brand: Price: $ 7.28 |
Connector Holder | 1 | $ 7.28 | ||
| 5 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 1 | $ 2.52 | ||
| 6 | 09320-04013 Bushing
SKU: 09320-04013 Weight: 0.060000 Brand: Price: $ 1.60 |
Bushing | 2 | $ 1.60 | ||
| 7 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 1.97 |
Cushion | 1 | $ 1.97 | ||
| 8 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 9-1 | 36610-93J01 Wiring Harness Assembly
SKU: 36610-93J01 Weight: 5.000000 Brand: Price: $ 785.01 |
Wiring Harness Assembly | 1 | $ 785.01 | ||
| 9-2 | 36610-93J80 Wiring Harness Assembly
SKU: 36610-93J80 Weight: 5.000000 Brand: Price: $ 835.11 |
Wiring Harness Assembly | 1 | $ 835.11 | 2006 to 2007 | |
| 9-3 | 36610-93JD0 Wiring Harness Assembly (NLA)
SKU: 36610-93JD0 Weight: 5.000000 Brand: Price: $ 790.90 |
Wiring Harness Assembly (NLA) | 1 | $ 790.90 | 2008 to 2009 | |
| 9-4 | 36610-93JJ1 Wiring Harness Assembly
SKU: 36610-93JJ1 Weight: 5.000000 Brand: Price: $ 737.63 |
Wiring Harness Assembly | 1 | $ 737.63 | DF200T: S/N 880554 Newer DF200Z: S/N 880122 Newer | |
| 9-5 | 36610-93JN1 Wiring Harness Assembly
SKU: 36610-93JN1 Weight: 5.000000 Brand: Price: $ 842.16 |
Wiring Harness Assembly | 1 | $ 842.16 | DF200T: S/N 110001 Newer DF200Z: S/N 110001 Newer | |
| 9A-1 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | 2008 Newer | |
| 9A-2 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.06 |
15 Amp Fuse | 1 | $ 2.06 | DF200T: S/N 110001 Newer DF200Z: S/N 110001 Newer | |
| 10 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | ||
| 11 | 36617-93J00 Harness Bracket
SKU: 36617-93J00 Weight: 0.125000 Brand: Price: $ 2.05 |
Harness Bracket | 3 | $ 2.05 | ||
| 12 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 4 | $ 2.00 | ||
| 13 | 36617-93J20 Harness Bracket
SKU: 36617-93J20 Weight: 0.400000 Brand: Price: $ 5.65 |
Harness Bracket | 1 | $ 5.65 | ||
| 14 | 36617-93J30 Harness Bracket (NLA)
SKU: 36617-93J30 Weight: 0.080000 Brand: Price: $ 7.22 |
Harness Bracket (NLA) | 1 | $ 7.22 | ||
| 15 | 36617-93J40 Harness Bracket
SKU: 36617-93J40 Weight: 0.060000 Brand: Price: $ 3.26 |
Harness Bracket | 1 | $ 3.26 | ||
| 16-1 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 11 | $ 2.33 | ||
| 16-2 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 12 | $ 2.33 | DF200T: S/N 880554 Newer DF200Z: S/N 880122 Newer | |
| 17 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 | ||
| 18 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 19-1 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | ||
| 19-2 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 2 | $ 2.13 | DF200T: S/N 421366 Newer DF200Z: S/N 421071 Newer | |
| 19-3 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | 2008 Newer | |
| 20 | 09408-00184 Clamp
SKU: 09408-00184 Weight: 0.125000 Brand: Price: $ 2.95 |
Clamp | 3 | $ 2.95 | ||
| 21 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 22 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.13 |
Clamp | 1 | $ 2.13 | ||
| 23 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 24 | 36865-90J00 Main Fuse Terminal
SKU: 36865-90J00 Weight: 0.060000 Brand: Price: $ 8.91 |
Main Fuse Terminal | 2 | $ 8.91 | ||
| 25 | 09251-09008 Cap
SKU: 09251-09008 Weight: 0.060000 Brand: Price: $ 3.56 |
Cap | 2 | $ 3.56 | ||
| 26 | 09481-60401 60 Amp Fuse
SKU: 09481-60401 Weight: 0.060000 Brand: Price: $ 6.71 |
60 Amp Fuse | 2 | $ 6.71 | ||
| 27 | 01570-06127 BOLT
SKU: 01570-06127 Weight: 0.062500 Brand: Price: $ 2.52 |
BOLT | 2 | $ 2.52 | ||
| 28 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.85 |
Nut | 2 | $ 1.85 | ||
| 29-1 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 44.63 |
ECM Battery Lead | 1 | $ 44.63 | 2004 L:65000 | |
| 29-2 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 44.63 |
ECM Battery Lead | 1 | $ 44.63 | 2005 Newer L:3700 | |
| 29-3 | 36625-93J10 ECM Battery Lead
SKU: 36625-93J10 Weight: 0.750000 Brand: Price: $ 44.63 |
ECM Battery Lead | 1 | $ 44.63 | Optional L:6500 | |
| 30 | 09481-15501 15 Amp Fuse
SKU: 09481-15501 Weight: 0.060000 Brand: Price: $ 2.06 |
15 Amp Fuse | 1 | $ 2.06 | ||
| 31 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 2 | $ 3.09 | ||
| 32 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | 2008 Newer | |
| 33 | 36617-93J50 Harness Bracket
SKU: 36617-93J50 Weight: 0.100000 Brand: Price: $ 3.37 |
Harness Bracket | 1 | $ 3.37 | DF200T: S/N 880554 Newer DF200Z: S/N 880122 Newer |
