Suzuki DF 9.9B Parts Listings - 2021
S/N 00995F-140001 to 00995F-14XXXX

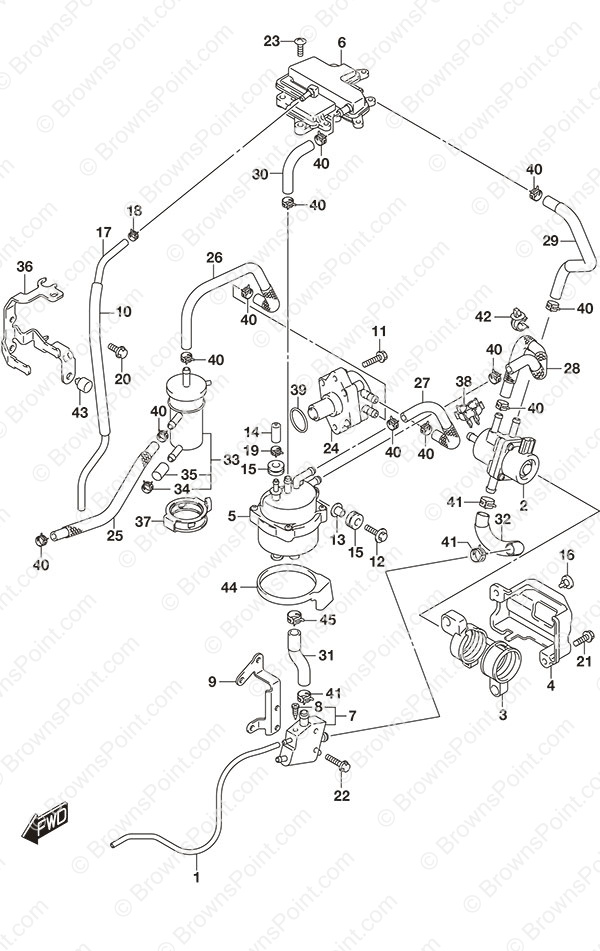

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13684-89L00 Drain Hose
SKU: 13684-89L00 Weight: 0.250000 Brand: Price: $ 8.21 |
Drain Hose | 1 | $ 8.21 | ||
| 2 | 15200-89L11 Fuel Pump Assembly
SKU: 15200-89L11 Weight: 0.500000 Brand: Price: $ 279.48 |
Fuel Pump Assembly | 1 | $ 279.48 | High Pressure | |
| 3 | 15217-89L00 Fuel Pump Cushion
SKU: 15217-89L00 Weight: 0.250000 Brand: Price: $ 17.70 |
Fuel Pump Cushion | 1 | $ 17.70 | ||
| 4 | 15218-89L00 Fuel Pump Bracket
SKU: 15218-89L00 Weight: 0.250000 Brand: Price: $ 27.99 |
Fuel Pump Bracket | 1 | $ 27.99 | ||
| 5 | 15600-89L00 Fuel Vapor Separator Assembly
SKU: 15600-89L00 Weight: 1.000000 Brand: Price: $ 466.54 |
Fuel Vapor Separator Assembly | 1 | $ 466.54 | ||
| 6 | 15690-89L02 Evaporation Chamber
SKU: 15690-89L02 Weight: 0.500000 Brand: Price: $ 30.42 |
Evaporation Chamber | 1 | $ 30.42 | ||
| 7 | 15770-89L02 Fuel Cooler
SKU: 15770-89L02 Weight: 0.250000 Brand: Price: $ 68.08 |
Fuel Cooler | 1 | $ 68.08 | ||
| 8 | 15629-89L00 Fuel Drain Screw
SKU: 15629-89L00 Weight: 0.250000 Brand: Price: $ 6.33 |
Fuel Drain Screw | 1 | $ 6.33 | ||
| 9 | 15790-89L00 Fuel Cooler Bracket (NLA)
SKU: 15790-89L00 Weight: 0.250000 Brand: Price: $ 6.67 |
Fuel Cooler Bracket (NLA) | 1 | $ 6.67 | ||
| 10 | 18498-87JB1 Protector (L:200)
SKU: 18498-87JB1 Weight: 0.250000 Brand: Price: $ 0.00 |
Protector (L:200) | 1 | $ 0.00 | ||
| 11 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.46 |
BOLT | 2 | $ 1.46 | ||
| 12 | 09116-06517 Bolt (6x25)
SKU: 09116-06517 Weight: 0.060000 Brand: Price: $ 2.75 |
Bolt (6x25) | 1 | $ 2.75 | ||
| 13 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 1 | $ 2.52 | ||
| 14 | 09251-05006 Plug
SKU: 09251-05006 Weight: 0.100000 Brand: Price: $ 5.94 |
Plug | 1 | $ 5.94 | ||
| 15 | 09320-09052 Cushion
SKU: 09320-09052 Weight: 0.250000 Brand: Price: $ 1.91 |
Cushion | 3 | $ 1.91 | ||
| 16 | 09321-08026 CUSHION
SKU: 09321-08026 Weight: 0.000000 Brand: Price: $ 1.95 |
CUSHION | 1 | $ 1.95 | ||
| 17 | 15662-89L10 Evaporation Hose
SKU: 15662-89L10 Weight: 0.250000 Brand: Price: $ 27.83 |
Evaporation Hose | 1 | $ 27.83 | ||
| 18 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 19 | 09401-10412 Clip
SKU: 09401-10412 Weight: 0.060000 Brand: Price: $ 2.72 |
Clip | 1 | $ 2.72 | ||
| 20 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 | ||
| 21 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 2 | $ 1.68 | ||
| 22 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.46 |
BOLT | 2 | $ 1.46 | ||
| 23 | 03542-06209 SCREW
SKU: 03542-06209 Weight: 0.100000 Brand: Price: $ 2.24 |
SCREW | 3 | $ 2.24 | ||
| 24 | 15100-89L21 Fuel Pump Assembly
SKU: 15100-89L21 Weight: 0.500000 Brand: Price: $ 134.17 |
Fuel Pump Assembly | 1 | $ 134.17 | Low Pressure | |
| 25 | 15191-89L00 Fuel Hose
SKU: 15191-89L00 Weight: 0.250000 Brand: Price: $ 9.95 |
Fuel Hose | 1 | $ 9.95 | Connector to Filter | |
| 26 | 15192-89L02 HOSE,FUEL(FILTE
SKU: 15192-89L02 Weight: 0.000000 Brand: Price: $ 19.38 |
HOSE,FUEL(FILTE | 1 | $ 19.38 | Filter to L/P Pump | |
| 27 | 15192-89L10 Fuel Hose (NLA)
SKU: 15192-89L10 Weight: 0.250000 Brand: Price: $ 12.64 |
Fuel Hose (NLA) | 1 | $ 12.64 | L/P Pump to Separator | |
| 28 | 15192-89L21 Fuel Hose
SKU: 15192-89L21 Weight: 0.250000 Brand: Price: $ 14.10 |
Fuel Hose | 1 | $ 14.10 | H/P Pump to Separator | |
| 29 | 15192-89L30 Fuel Hose
SKU: 15192-89L30 Weight: 0.250000 Brand: Price: $ 22.49 |
Fuel Hose | 1 | $ 22.49 | H/P Pump to 3 Way | |
| 30 | 15192-89L40 Fuel Hose
SKU: 15192-89L40 Weight: 0.250000 Brand: Price: $ 8.90 |
Fuel Hose | 1 | $ 8.90 | Separator to Evaporator | |
| 31 | 15193-89L10 Fuel Hose
SKU: 15193-89L10 Weight: 0.250000 Brand: Price: $ 9.49 |
Fuel Hose | 1 | $ 9.49 | Separator to Cooler | |
| 32 | 15194-89L10 Fuel Hose
SKU: 15194-89L10 Weight: 0.250000 Brand: Price: $ 15.78 |
Fuel Hose | 1 | $ 15.78 | Cooler to H/P Pump | |
| 33 | 15410-87L00 Fuel Filter
SKU: 15410-87L00 Weight: 0.100000 Brand: Price: $ 17.76 |
Fuel Filter | 1 | $ 17.76 | ||
| 34 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 35 | 15419-87J00 Fuel Filter Cap
SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.40 |
Fuel Filter Cap | 1 | $ 7.40 | ||
| 36 | 15421-89L01 Fuel Filter Bracket
SKU: 15421-89L01 Weight: 0.250000 Brand: Price: $ 19.58 |
Fuel Filter Bracket | 1 | $ 19.58 | ||
| 37 | 15422-89L00 Fuel Filter Clamp
SKU: 15422-89L00 Weight: 0.250000 Brand: Price: $ 8.73 |
Fuel Filter Clamp | 1 | $ 8.73 | ||
| 38 | 15685-89L00 Fuel Hose Clamp (NLA)
SKU: 15685-89L00 Weight: 0.250000 Brand: Price: $ 3.37 |
Fuel Hose Clamp (NLA) | 1 | $ 3.37 | ||
| 39 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.33 |
O-Ring | 1 | $ 2.33 | ||
| 40 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 12 | $ 2.09 | ||
| 41 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 4 | $ 1.58 | ||
| 42 | 09403-11320 Clamp
SKU: 09403-11320 Weight: 0.060000 Brand: Price: $ 2.52 |
Clamp | 2 | $ 2.52 | ||
| 43 | 61151-91J11 Cushion
SKU: 61151-91J11 Weight: 0.060000 Brand: Price: $ 3.66 |
Cushion | 1 | $ 3.66 | ||
| 44 | 15676-89L01 Vapor Separator Cushion
SKU: 15676-89L01 Weight: 0.060000 Brand: Price: $ 4.94 |
Vapor Separator Cushion | 1 | $ 4.94 | ||
| 45 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 1 | $ 1.58 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
