Suzuki DF 2.5 Parts Listings - 2021
S/N 00252F-140001 to 00252F-14XXXX

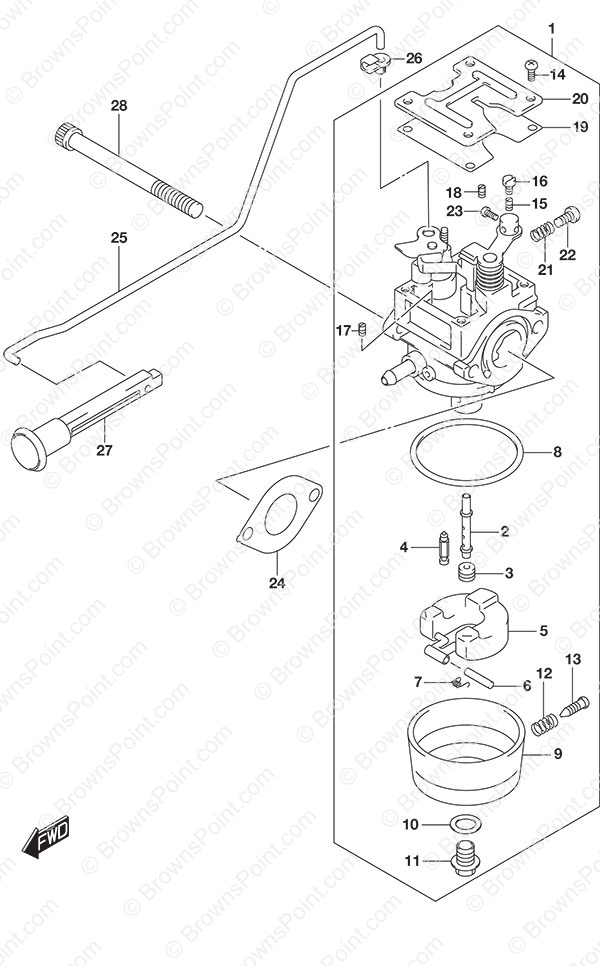

Fig. 128 - Carburetor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13200-97J50 Carburetor Assembly
SKU: 13200-97J50 Weight: 1.250000 Brand: Price: $ 175.98 |
Carburetor Assembly | 1 | $ 175.98 | ||
| 2 | 13236-97J30 Main Nozzle
SKU: 13236-97J30 Weight: 0.100000 Brand: Price: $ 25.12 |
Main Nozzle | 1 | $ 25.12 | ||
| 3-1 | 09491-60014 Main Jet #60
SKU: 09491-60014 Weight: 0.060000 Brand: Price: $ 13.02 |
Main Jet #60 | 1 | $ 13.02 | ||
| 3-2 | 09491-62009 Main Jet #62
SKU: 09491-62009 Weight: 0.060000 Brand: Price: $ 15.13 |
Main Jet #62 | 1 | $ 15.13 | ||
| 3-3 | 09491-64003 Main Jet #64
SKU: 09491-64003 Weight: 0.060000 Brand: Price: $ 15.13 |
Main Jet #64 | 1 | $ 15.13 | ||
| 4 | 13371-97J00 Needle Valve
SKU: 13371-97J00 Weight: 0.060000 Brand: Price: $ 24.19 |
Needle Valve | 1 | $ 24.19 | ||
| 5 | 13250-97J00 Carburetor Float
SKU: 13250-97J00 Weight: 0.125000 Brand: Price: $ 31.27 |
Carburetor Float | 1 | $ 31.27 | ||
| 6 | 13254-97J00 Float Pin
SKU: 13254-97J00 Weight: 0.060000 Brand: Price: $ 3.57 |
Float Pin | 1 | $ 3.57 | ||
| 7 | 13268-97J30 Spring
SKU: 13268-97J30 Weight: 0.060000 Brand: Price: $ 3.07 |
Spring | 1 | $ 3.07 | ||
| 8 | 13251-97J00 Float Chamber Gasket
SKU: 13251-97J00 Weight: 0.060000 Brand: Price: $ 6.78 |
Float Chamber Gasket | 1 | $ 6.78 | ||
| 9 | 13245-97J00 Float Chamber
SKU: 13245-97J00 Weight: 0.125000 Brand: Price: $ 16.86 |
Float Chamber | 1 | $ 16.86 | ||
| 10 | 13249-97J00 Gasket
SKU: 13249-97J00 Weight: 0.060000 Brand: Price: $ 2.59 |
Gasket | 1 | $ 2.59 | ||
| 11 | 13247-97J00 Screw
SKU: 13247-97J00 Weight: 0.100000 Brand: Price: $ 4.14 |
Screw | 1 | $ 4.14 | ||
| 12 | 13268-97J10 Spring
SKU: 13268-97J10 Weight: 0.100000 Brand: Price: $ 4.39 |
Spring | 1 | $ 4.39 | ||
| 13 | 13616-97J00 Screw
SKU: 13616-97J00 Weight: 0.100000 Brand: Price: $ 22.62 |
Screw | 1 | $ 22.62 | ||
| 14 | 13267-97J00 Screw (NLA)
SKU: 13267-97J00 Weight: 0.100000 Brand: Price: $ 1.57 |
Screw (NLA) | 4 | $ 1.57 | ||
| 15-1 | 09492-32011 Pilot Jet #32
SKU: 09492-32011 Weight: 0.060000 Brand: Price: $ 15.87 |
Pilot Jet #32 | 1 | $ 15.87 | ||
| 15-2 | 09492-34004 Pilot Jet #34
SKU: 09492-34004 Weight: 0.060000 Brand: Price: $ 15.58 |
Pilot Jet #34 | 1 | $ 15.58 | ||
| 15-3 | 09492-36L01 Pilot Jet #36
SKU: 09492-36L01 Weight: 0.060000 Brand: Price: $ 13.26 |
Pilot Jet #36 | 1 | $ 13.26 | ||
| 16 | 13267-97J10 Screw
SKU: 13267-97J10 Weight: 0.100000 Brand: Price: $ 4.20 |
Screw | 1 | $ 4.20 | ||
| 17 | 09493-27L01 Pilot Air Jet #135
SKU: 09493-27L01 Weight: 0.100000 Brand: Price: $ 12.43 |
Pilot Air Jet #135 | 1 | $ 12.43 | ||
| 18 | 09493-29004 Pilot Air Jet #145
SKU: 09493-29004 Weight: 0.060000 Brand: Price: $ 15.14 |
Pilot Air Jet #145 | 1 | $ 15.14 | ||
| 19 | 13249-97J10 Gasket
SKU: 13249-97J10 Weight: 0.060000 Brand: Price: $ 11.50 |
Gasket | 1 | $ 11.50 | ||
| 20 | 13248-97J00 Plate (NLA)
SKU: 13248-97J00 Weight: 0.100000 Brand: Price: $ 13.48 |
Plate (NLA) | 1 | $ 13.48 | ||
| 21 | 13268-97J20 Spring
SKU: 13268-97J20 Weight: 0.100000 Brand: Price: $ 4.74 |
Spring | 1 | $ 4.74 | ||
| 22 | 13534-97J10 Screw
SKU: 13534-97J10 Weight: 0.100000 Brand: Price: $ 3.71 |
Screw | 1 | $ 3.71 | ||
| 23 | 13267-97J20 Screw (NLA)
SKU: 13267-97J20 Weight: 0.100000 Brand: Price: $ 2.64 |
Screw (NLA) | 1 | $ 2.64 | ||
| 24 | 13125-97J00 Carburetor Gasket
SKU: 13125-97J00 Weight: 0.060000 Brand: Price: $ 2.81 |
Carburetor Gasket | 1 | $ 2.81 | ||
| 25 | 13413-97J10 Choke Rod
SKU: 13413-97J10 Weight: 0.125000 Brand: Price: $ 8.17 |
Choke Rod | 1 | $ 8.17 | ||
| 26 | 13436-91J00 Choke Rod Connector
SKU: 13436-91J00 Weight: 0.060000 Brand: Price: $ 3.08 |
Choke Rod Connector | 1 | $ 3.08 | ||
| 27 | 13631-91J00 Choke Knob
SKU: 13631-91J00 Weight: 0.060000 Brand: Price: $ 6.21 |
Choke Knob | 1 | $ 6.21 | ||
| 28 | 09103-06522 Bolt
SKU: 09103-06522 Weight: 0.060000 Brand: Price: $ 2.54 |
Bolt | 2 | $ 2.54 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
