Suzuki DF 2.5 Parts Listings - 2021
S/N 00252F-140001 to 00252F-14XXXX

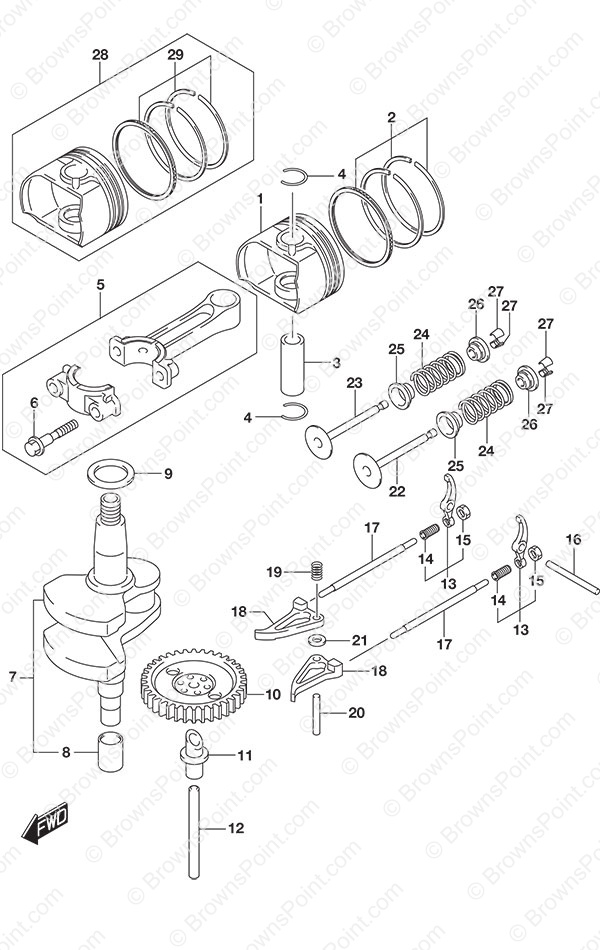

Fig. 116 - Crankshaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12111-97J10-0B0 Piston
SKU: 12111-97J10-0B0 Weight: 1.000000 Brand: Price: $ 74.29 |
Piston | 1 | $ 74.29 | No Paint | |
| 2 | 12140-97J00 Piston Ring Set
SKU: 12140-97J00 Weight: 0.100000 Brand: Price: $ 49.48 |
Piston Ring Set | 1 | $ 49.48 | ||
| 3 | 12151-97J00 Piston Pin
SKU: 12151-97J00 Weight: 0.100000 Brand: Price: $ 8.05 |
Piston Pin | 1 | $ 8.05 | ||
| 4 | 59382-97J00 Piston Pin Circlip
SKU: 59382-97J00 Weight: 0.100000 Brand: Price: $ 4.39 |
Piston Pin Circlip | 2 | $ 4.39 | ||
| 5 | 12160-97JL0-0A0 Connecting Rod Assembly
SKU: 12160-97JL0-0A0 Weight: 1.000000 Brand: Price: $ 33.37 |
Connecting Rod Assembly | 1 | $ 33.37 | Red | |
| 6 | 12163-97JL0 Connecting Rod Bolt
SKU: 12163-97JL0 Weight: 0.250000 Brand: Price: $ 2.42 |
Connecting Rod Bolt | 2 | $ 2.42 | ||
| 7 | 12220-97JL1 Crankshaft Assembly
SKU: 12220-97JL1 Weight: 5.000000 Brand: Price: $ 258.43 |
Crankshaft Assembly | 1 | $ 258.43 | ||
| 8 | 12242-97JL1 Spline
SKU: 12242-97JL1 Weight: 0.500000 Brand: Price: $ 15.86 |
Spline | 1 | $ 15.86 | ||
| 9 | 08211-17241 Thrust Washer
SKU: 08211-17241 Weight: 0.250000 Brand: Price: $ 2.34 |
Thrust Washer | 1 | $ 2.34 | ||
| 10 | 12710-97J00 Camshaft
SKU: 12710-97J00 Weight: 2.000000 Brand: Price: $ 29.80 |
Camshaft | 1 | $ 29.80 | ||
| 11 | 12742-97J10 Oil Pump Shaft
SKU: 12742-97J10 Weight: 0.250000 Brand: Price: $ 6.18 |
Oil Pump Shaft | 1 | $ 6.18 | ||
| 12 | 12743-97J00 Shaft
SKU: 12743-97J00 Weight: 1.000000 Brand: Price: $ 8.36 |
Shaft | 1 | $ 8.36 | ||
| 13 | 12840-97J10 Rocker Arm
SKU: 12840-97J10 Weight: 0.200000 Brand: Price: $ 24.11 |
Rocker Arm | 2 | $ 24.11 | ||
| 14 | 12842-22G10 Tappet Adjust Screw
SKU: 12842-22G10 Weight: 0.060000 Brand: Price: $ 4.58 |
Tappet Adjust Screw | 2 | $ 4.58 | ||
| 15 | 12843-27A00 Tappet Adjust Nut
SKU: 12843-27A00 Weight: 0.100000 Brand: Price: $ 3.11 |
Tappet Adjust Nut | 2 | $ 3.11 | ||
| 16 | 09261-04017 Pin (4x43)
SKU: 09261-04017 Weight: 0.060000 Brand: Price: $ 2.66 |
Pin (4x43) | 1 | $ 2.66 | ||
| 17 | 12894-97JL0 Push Rod
SKU: 12894-97JL0 Weight: 0.250000 Brand: Price: $ 6.33 |
Push Rod | 2 | $ 6.33 | ||
| 18 | 12845-97J00 Cam Rocker Arm (NLA)
SKU: 12845-97J00 Weight: 0.100000 Brand: Price: $ 18.69 |
Cam Rocker Arm (NLA) | 2 | $ 18.69 | ||
| 19 | 12847-22G00 Cam Rocker Arm Spring
SKU: 12847-22G00 Weight: 0.250000 Brand: Price: $ 2.28 |
Cam Rocker Arm Spring | 1 | $ 2.28 | ||
| 20 | 09261-04005 Roller Pin (4x23.8)
SKU: 09261-04005 Weight: 0.250000 Brand: Price: $ 1.44 |
Roller Pin (4x23.8) | 1 | $ 1.44 | ||
| 21 | 08322-0104A Washer
SKU: 08322-0104A Weight: 0.100000 Brand: Price: $ 1.91 |
Washer | 2 | $ 1.91 | ||
| 22 | 12911-97JL0 Intake Valve
SKU: 12911-97JL0 Weight: 0.100000 Brand: Price: $ 23.61 |
Intake Valve | 1 | $ 23.61 | ||
| 23 | 12915-97JL0 Exhaust Valve
SKU: 12915-97JL0 Weight: 0.200000 Brand: Price: $ 33.39 |
Exhaust Valve | 1 | $ 33.39 | ||
| 24 | 12921-97JL0 Valve Spring
SKU: 12921-97JL0 Weight: 0.100000 Brand: Price: $ 4.39 |
Valve Spring | 2 | $ 4.39 | ||
| 25 | 09289-04006 Valve Stem Oil Seal
SKU: 09289-04006 Weight: 0.250000 Brand: Price: $ 8.26 |
Valve Stem Oil Seal | 2 | $ 8.26 | ||
| 26 | 12931-97JL0 Valve Spring Retainer (NLA)
SKU: 12931-97JL0 Weight: 0.250000 Brand: Price: $ 2.92 |
Valve Spring Retainer (NLA) | 2 | $ 2.92 | ||
| 27 | 12932-05C00 Valve Cotter
SKU: 12932-05C00 Weight: 0.060000 Brand: Price: $ 2.12 |
Valve Cotter | 4 | $ 2.12 | ||
| 28 | 12100-97J10-050 Piston & Ring Set (OS:0.50)
SKU: 12100-97J10-050 Weight: 1.000000 Brand: Price: $ 96.45 |
Piston & Ring Set (OS:0.50) | 1 | $ 96.45 | Optional | |
| 29 | 12140-97J00-050 Piston Ring Set (OS:0.50) (NLA)
SKU: 12140-97J00-050 Weight: 0.100000 Brand: Price: $ 35.08 |
Piston Ring Set (OS:0.50) (NLA) | 1 | $ 35.08 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
