Suzuki DF 300B Parts Listings - 2020
S/N 30003F-040001 to 30003F-04XXXX

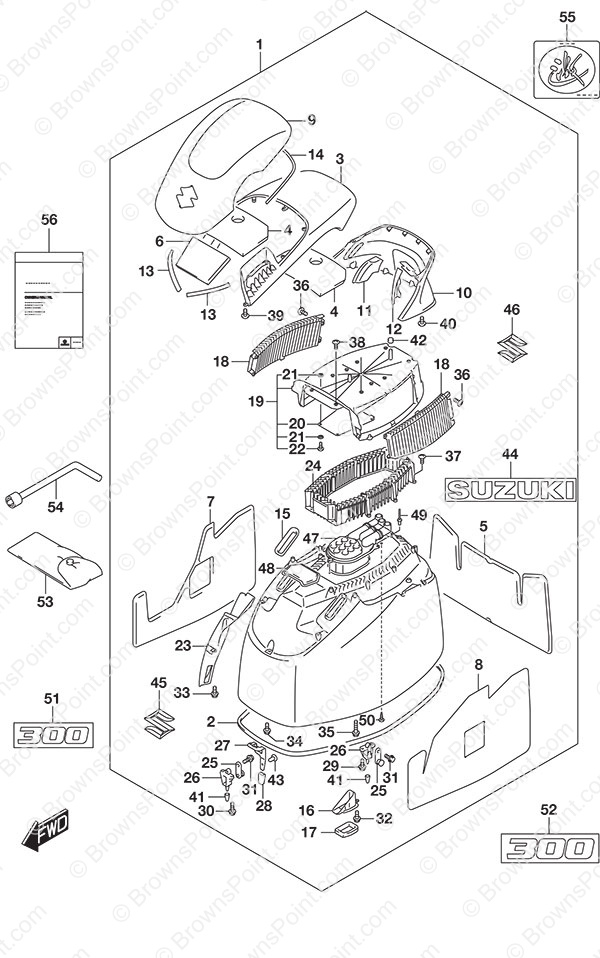

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61420-98823-AML Engine Cover Set
SKU: 61420-98823-AML Weight: 45.000000 Brand: Price: $ 1,610.51 |
Engine Cover Set | 1 | $ 1,610.51 | Black | |
| 1-2 | 61420-98823-BBK Engine Cover Set
SKU: 61420-98823-BBK Weight: 45.000000 Brand: Price: $ 2,227.01 |
Engine Cover Set | 1 | $ 2,227.01 | White | |
| 2 | 61414-98L00 Engine Cover Seal
SKU: 61414-98L00 Weight: 2.000000 Brand: Price: $ 69.46 |
Engine Cover Seal | 1 | $ 69.46 | ||
| 3-1 | 61421-98L00-YAY Engine Cover Top
SKU: 61421-98L00-YAY Weight: 5.000000 Brand: Price: $ 365.79 |
Engine Cover Top | 1 | $ 365.79 | Black | |
| 3-2 | 61421-98L00-Y5S Engine Cover Top
SKU: 61421-98L00-Y5S Weight: 5.000000 Brand: Price: $ 365.79 |
Engine Cover Top | 1 | $ 365.79 | White | |
| 4 | 61425-98L00 Top Cover Silencer
SKU: 61425-98L00 Weight: 0.250000 Brand: Price: $ 33.37 |
Top Cover Silencer | 2 | $ 33.37 | ||
| 5 | 61426-98L10 Engine Cover Silencer
SKU: 61426-98L10 Weight: 1.000000 Brand: Price: $ 90.14 |
Engine Cover Silencer | 1 | $ 90.14 | ||
| 6 | 61427-98L00 Engine Cover Silencer
SKU: 61427-98L00 Weight: 0.250000 Brand: Price: $ 22.62 |
Engine Cover Silencer | 1 | $ 22.62 | ||
| 7 | 61428-98L00 Starboard Engine Cover Silencer
SKU: 61428-98L00 Weight: 1.000000 Brand: Price: $ 102.32 |
Starboard Engine Cover Silencer | 1 | $ 102.32 | ||
| 8 | 61429-98L00 Port Engine Cover Silencer
SKU: 61429-98L00 Weight: 1.000000 Brand: Price: $ 102.32 |
Port Engine Cover Silencer | 1 | $ 102.32 | ||
| 9 | 61430-98L00-20H Top Front Engine Cover
SKU: 61430-98L00-20H Weight: 5.000000 Brand: Price: $ 317.48 |
Top Front Engine Cover | 1 | $ 317.48 | Silver | |
| 10 | 61432-98L00-20H Air Intake Garnish
SKU: 61432-98L00-20H Weight: 5.000000 Brand: Price: $ 257.69 |
Air Intake Garnish | 1 | $ 257.69 | Silver | |
| 11 | 61433-98L00 Starboard Air Intake Cover
SKU: 61433-98L00 Weight: 0.250000 Brand: Price: $ 17.16 |
Starboard Air Intake Cover | 1 | $ 17.16 | ||
| 12 | 61434-98L00 Port Air Intake Cover
SKU: 61434-98L00 Weight: 0.250000 Brand: Price: $ 17.16 |
Port Air Intake Cover | 1 | $ 17.16 | ||
| 13 | 61437-98L00 Air Intake Seal
SKU: 61437-98L00 Weight: 0.060000 Brand: Price: $ 3.64 |
Air Intake Seal | 2 | $ 3.64 | ||
| 14 | 61438-98L01 Engine Cover Top Seal
SKU: 61438-98L01 Weight: 0.060000 Brand: Price: $ 18.16 |
Engine Cover Top Seal | 1 | $ 18.16 | ||
| 15 | 61439-98L00 Air Vent No 2 Seal
SKU: 61439-98L00 Weight: 0.060000 Brand: Price: $ 7.68 |
Air Vent No 2 Seal | 2 | $ 7.68 | ||
| 16 | 61475-98L00 Air Vent Guide
SKU: 61475-98L00 Weight: 0.060000 Brand: Price: $ 7.72 |
Air Vent Guide | 1 | $ 7.72 | ||
| 17 | 61476-98L00 Air Vent No 1 Seal
SKU: 61476-98L00 Weight: 0.060000 Brand: Price: $ 5.92 |
Air Vent No 1 Seal | 1 | $ 5.92 | ||
| 18 | 61561-98L00 Air Intake Outer Louver
SKU: 61561-98L00 Weight: 1.000000 Brand: Price: $ 28.93 |
Air Intake Outer Louver | 2 | $ 28.93 | ||
| 19 | 61560-98L00 Air Intake Frame
SKU: 61560-98L00 Weight: 3.000000 Brand: Price: $ 145.13 |
Air Intake Frame | 1 | $ 145.13 | ||
| 20 | 61563-98L00 Air Intake Silencer
SKU: 61563-98L00 Weight: 0.500000 Brand: Price: $ 48.09 |
Air Intake Silencer | 1 | $ 48.09 | ||
| 21 | 09160-04029 Washer
SKU: 09160-04029 Weight: 0.100000 Brand: Price: $ 1.80 |
Washer | 8 | $ 1.80 | ||
| 22 | 09229-04018 Rivet
SKU: 09229-04018 Weight: 0.060000 Brand: Price: $ 1.72 |
Rivet | 4 | $ 1.72 | ||
| 23 | 61565-98L00 Air Intake Duct
SKU: 61565-98L00 Weight: 0.500000 Brand: Price: $ 27.07 |
Air Intake Duct | 1 | $ 27.07 | ||
| 24 | 61591-98L00 Air Intake Inner Louver
SKU: 61591-98L00 Weight: 5.000000 Brand: Price: $ 65.42 |
Air Intake Inner Louver | 1 | $ 65.42 | ||
| 25 | 61610-98L00 Fastener
SKU: 61610-98L00 Weight: 0.060000 Brand: Price: $ 13.61 |
Fastener | 3 | $ 13.61 | ||
| 26 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 27 | 61682-98L00 Engine Cover Stand
SKU: 61682-98L00 Weight: 0.125000 Brand: Price: $ 23.98 |
Engine Cover Stand | 1 | $ 23.98 | ||
| 28 | 61683-98L00 Engine Cover Stand Cushion
SKU: 61683-98L00 Weight: 0.060000 Brand: Price: $ 11.38 |
Engine Cover Stand Cushion | 1 | $ 11.38 | ||
| 29 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 4 | $ 1.66 | ||
| 30 | 01547-06207 BOLT 6 X 20
SKU: 01547-06207 Weight: 0.060000 Brand: Price: $ 2.04 |
BOLT 6 X 20 | 2 | $ 2.04 | ||
| 31 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 3 | $ 1.73 | ||
| 32 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 33 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 | ||
| 34 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 3 | $ 1.73 | ||
| 35 | 01550-0630C BOLT
SKU: 01550-0630C Weight: 0.060000 Brand: Price: $ 2.24 |
BOLT | 2 | $ 2.24 | ||
| 36 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 8 | $ 2.16 | ||
| 37 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 9 | $ 2.16 | ||
| 38 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 14 | $ 2.16 | ||
| 39 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 7 | $ 2.16 | ||
| 40 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 13 | $ 2.16 | ||
| 41 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 42 | 09329-12004 Cushion
SKU: 09329-12004 Weight: 0.060000 Brand: Price: $ 2.67 |
Cushion | 2 | $ 2.67 | ||
| 44 | 61441-98L00 Suzuki Mark
SKU: 61441-98L00 Weight: 0.250000 Brand: Price: $ 109.21 |
Suzuki Mark | 2 | $ 109.21 | ||
| 45 | 68111-93J00 Emblem Mark 'S'
SKU: 68111-93J00 Weight: 0.060000 Brand: Price: $ 16.42 |
Emblem Mark 'S' | 1 | $ 16.42 | ||
| 46 | 77811-63J00-0PG Chrome S Emblem
SKU: 77811-63J00-0PG Weight: 0.200000 Brand: Price: $ 18.49 |
Chrome S Emblem | 1 | $ 18.49 | ||
| 47 | 61416-98L10 Air Intake Guard
SKU: 61416-98L10 Weight: 0.250000 Brand: Price: $ 57.19 |
Air Intake Guard | 1 | $ 57.19 | ||
| 48 | 6142A-98L00 Engine Upper Front Silencer
SKU: 6142A-98L00 Weight: 0.250000 Brand: Price: $ 38.81 |
Engine Upper Front Silencer | 1 | $ 38.81 | ||
| 49 | 09229-04018 Rivet
SKU: 09229-04018 Weight: 0.060000 Brand: Price: $ 1.72 |
Rivet | 3 | $ 1.72 | ||
| 50 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 1 | $ 2.16 | ||
| 51 | 61422-98L70 Front Emblem Mark (300)
SKU: 61422-98L70 Weight: 0.060000 Brand: Price: $ 86.25 |
Front Emblem Mark (300) | 1 | $ 86.25 | ||
| 52 | 61435-98L70 Rear Emblem Mark (300)
SKU: 61435-98L70 Weight: 0.060000 Brand: Price: $ 101.82 |
Rear Emblem Mark (300) | 1 | $ 101.82 | ||
| 53 | 09800-81835 Tool Set
SKU: 09800-81835 Weight: 1.060000 Brand: Price: $ 46.36 |
Tool Set | 1 | $ 46.36 | ||
| 54 | 09816-00175 Box Wrench
SKU: 09816-00175 Weight: 1.060000 Brand: Price: $ 13.98 |
Box Wrench | 1 | $ 13.98 | ||
| 55-1 | 61424-98L00 Emblem Mark (GEKI)
SKU: 61424-98L00 Weight: 0.060000 Brand: Price: $ 58.64 |
Emblem Mark (GEKI) | 1 | $ 58.64 | For Black | |
| 55-2 | 61424-98L10 Emblem Mark (GEKI)
SKU: 61424-98L10 Weight: 0.060000 Brand: Price: $ 57.57 |
Emblem Mark (GEKI) | 1 | $ 57.57 | For White | |
| 56 | 99011-98L41-03B Owners Manual DF300B - 2020
SKU: 99011-98L41-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF300B - 2020 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
