Suzuki DF 300B Parts Listings - 2020
S/N 30003F-040001 to 30003F-04XXXX

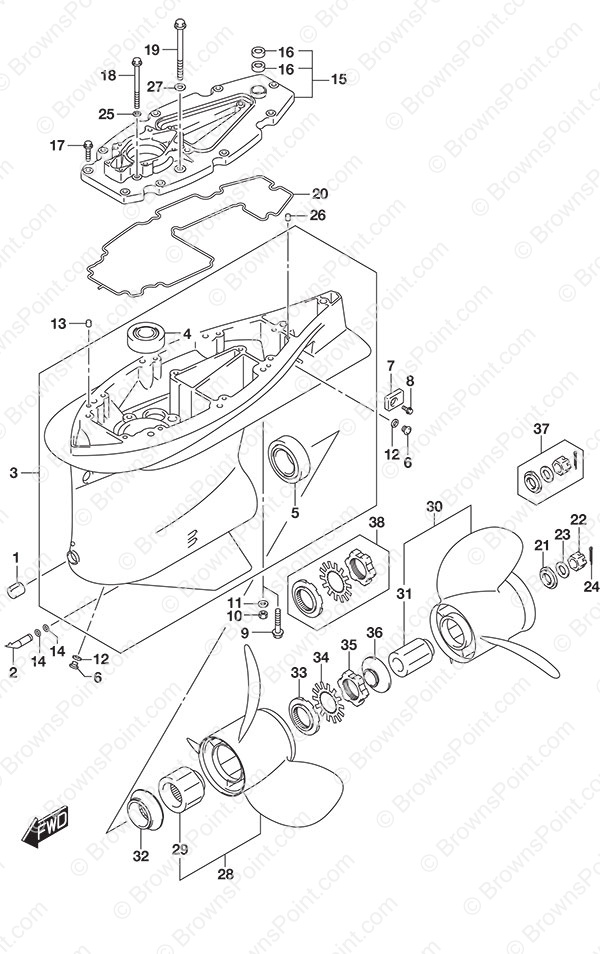

Fig. 407 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17631-98L03 Water Filter
SKU: 17631-98L03 Weight: 0.060000 Brand: Price: $ 12.75 |
Water Filter | 1 | $ 12.75 | ||
| 2 | 17635-98L01 Sub Water Filter
SKU: 17635-98L01 Weight: 0.060000 Brand: Price: $ 19.30 |
Sub Water Filter | 2 | $ 19.30 | ||
| 3-1 | 55100-98851-YAY CASE SET,GEAR
SKU: 55100-98851-YAY Weight: 0.000000 Brand: Price: $ 1,251.90 |
CASE SET,GEAR | 1 | $ 1,251.90 | Black Includes Fig 220 Ref# 29 | |
| 3-2 | 55100-98851-Y5S CASE SET,GEAR
SKU: 55100-98851-Y5S Weight: 0.000000 Brand: Price: $ 1,251.90 |
CASE SET,GEAR | 1 | $ 1,251.90 | White Includes Fig 220 Ref# 29 | |
| 4 | 57710-98L00 Contra Pinion Bearing
SKU: 57710-98L00 Weight: 0.250000 Brand: Price: $ 76.70 |
Contra Pinion Bearing | 1 | $ 76.70 | ||
| 5 | 09265-50001 Bearing (50x90x32)
SKU: 09265-50001 Weight: 2.000000 Brand: Price: $ 138.71 |
Bearing (50x90x32) | 1 | $ 138.71 | ||
| 6 | 55128-93L00 Drain Plug w/Magnet
SKU: 55128-93L00 Weight: 0.060000 Brand: Price: $ 12.96 |
Drain Plug w/Magnet | 3 | $ 12.96 | ||
| 7 | 55321-93J01 Protection Anode
SKU: 55321-93J01 Weight: 0.125000 Brand: Price: $ 15.13 |
Protection Anode | 2 | $ 15.13 | ||
| 8 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 2 | $ 1.78 | ||
| 9 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 6 | $ 15.95 | w/Transom (X) | |
| 10 | 09140-10031 Nut (10mm)
SKU: 09140-10031 Weight: 0.060000 Brand: Price: $ 2.04 |
Nut (10mm) | 6 | $ 2.04 | w/Transom (XX) | |
| 11 | 09160-10141 Washer (10.5x19x2)
SKU: 09160-10141 Weight: 0.060000 Brand: Price: $ 3.41 |
Washer (10.5x19x2) | 6 | $ 3.41 | w/Transom (XX) | |
| 12 | 09168-10038 GASKET,DRAIN PL
SKU: 09168-10038 Weight: 0.000000 Brand: Price: $ 2.23 |
GASKET,DRAIN PL | 3 | $ 2.23 | ||
| 13 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 14 | 09280-10012 O-Ring
SKU: 09280-10012 Weight: 0.060000 Brand: Price: $ 1.97 |
O-Ring | 2 | $ 1.97 | ||
| 15 | 56130-98L12 Drive Shaft Bearing Housing
SKU: 56130-98L12 Weight: 2.000000 Brand: Price: $ 407.49 |
Drive Shaft Bearing Housing | 1 | $ 407.49 | Includes Fig 220 Ref# 38 | |
| 16 | 09282-15010 Oil Seal
SKU: 09282-15010 Weight: 0.060000 Brand: Price: $ 5.16 |
Oil Seal | 2 | $ 5.16 | ||
| 17 | 29116-93J10 Bolt (8x35)
SKU: 29116-93J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Bolt (8x35) | 11 | $ 2.90 | ||
| 18 | 09103-08552 Bolt (8x105)
SKU: 09103-08552 Weight: 0.125000 Brand: Price: $ 11.75 |
Bolt (8x105) | 2 | $ 11.75 | ||
| 19 | 09103-10461 Bolt (10x107)
SKU: 09103-10461 Weight: 0.125000 Brand: Price: $ 18.40 |
Bolt (10x107) | 3 | $ 18.40 | ||
| 20 | 55122-98L00 Drive Shaft Bearing Housing Seal
SKU: 55122-98L00 Weight: 0.125000 Brand: Price: $ 58.80 |
Drive Shaft Bearing Housing Seal | 1 | $ 58.80 | ||
| 21 | 58641-98L00 Rear Propeller Nut Spacer
SKU: 58641-98L00 Weight: 0.180000 Brand: Price: $ 34.76 |
Rear Propeller Nut Spacer | 1 | $ 34.76 | ||
| 22 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 23 | 09160-18019 Washer (18.5x32x2.5)
SKU: 09160-18019 Weight: 0.060000 Brand: Price: $ 2.26 |
Washer (18.5x32x2.5) | 1 | $ 2.26 | ||
| 24 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 25 | 09169-08038 Washer (8.3x15x3)
SKU: 09169-08038 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (8.3x15x3) | 2 | $ 3.79 | ||
| 26 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 1 | $ 2.07 | ||
| 27 | 09169-10023 Washer
SKU: 09169-10023 Weight: 0.060000 Brand: Price: $ 5.73 |
Washer | 3 | $ 5.73 | ||
| 28 | 58531-98L00 Front Propeller Stopper Bushing
SKU: 58531-98L00 Weight: 0.250000 Brand: Price: $ 59.98 |
Front Propeller Stopper Bushing | 1 | $ 59.98 | ||
| 29 | 58541-98L00 Front Propeller Nut Spacer
SKU: 58541-98L00 Weight: 0.250000 Brand: Price: $ 43.54 |
Front Propeller Nut Spacer | 1 | $ 43.54 | ||
| 30 | 58551-98L00 Front Propeller Nut Stopper
SKU: 58551-98L00 Weight: 0.200000 Brand: Price: $ 6.80 |
Front Propeller Nut Stopper | 1 | $ 6.80 | ||
| 31 | 58561-98L01 NUT,FRONT PROPE
SKU: 58561-98L01 Weight: 0.000000 Brand: Price: $ 127.24 |
NUT,FRONT PROPE | 1 | $ 127.24 | ||
| 32 | 58631-98L00 Rear Propeller Stopper Bushing
SKU: 58631-98L00 Weight: 0.250000 Brand: Price: $ 44.11 |
Rear Propeller Stopper Bushing | 1 | $ 44.11 | ||
| 33-1 | 990C0-0090F-18P S/S Propeller 3x15.5x18 Front
SKU: 990C0-0090F-18P Weight: 18.000000 Brand: Price: $ 892.73 |
S/S Propeller 3x15.5x18 Front | 1 | $ 892.73 | Optional | |
| 33-2 | 990C0-0090F-195 S/S Propeller 3x15.5x19.5 Front
SKU: 990C0-0090F-195 Weight: 18.000000 Brand: Price: $ 892.73 |
S/S Propeller 3x15.5x19.5 Front | 1 | $ 892.73 | Optional | |
| 33-3 | 990C0-0090F-21P S/S Propeller 3x15.5x21 Front
SKU: 990C0-0090F-21P Weight: 18.000000 Brand: Price: $ 892.73 |
S/S Propeller 3x15.5x21 Front | 1 | $ 892.73 | Optional | |
| 33-4 | 990C0-0090F-225 S/S Propeller 3x15.5x22.5 Front
SKU: 990C0-0090F-225 Weight: 18.000000 Brand: Price: $ 892.73 |
S/S Propeller 3x15.5x22.5 Front | 1 | $ 892.73 | Optional | |
| 33-5 | 990C0-0090F-24P S/S Propeller 3x15.5x24 Front
SKU: 990C0-0090F-24P Weight: 18.000000 Brand: Price: $ 892.73 |
S/S Propeller 3x15.5x24 Front | 1 | $ 892.73 | Optional | |
| 33-6 | 990C0-0090F-255 S/S Propeller 3x15.5x25.5 Front
SKU: 990C0-0090F-255 Weight: 18.000000 Brand: Price: $ 892.73 |
S/S Propeller 3x15.5x25.5 Front | 1 | $ 892.73 | Optional | |
| 33-7 | 990C0-0090F-27P S/S Propeller 3x15.5x27 Front
SKU: 990C0-0090F-27P Weight: 18.000000 Brand: Price: $ 892.73 |
S/S Propeller 3x15.5x27 Front | 1 | $ 892.73 | Optional | |
| 33-8 | 990C0-0090F-285 S/S Propeller 3x15.5x28.5 Front
SKU: 990C0-0090F-285 Weight: 18.000000 Brand: Price: $ 892.73 |
S/S Propeller 3x15.5x28.5 Front | 1 | $ 892.73 | Optional | |
| 33-9 | 990C0-0090F-30P S/S Propeller 3x15.5x30 Front
SKU: 990C0-0090F-30P Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x30 Front | 1 | $ 892.71 | Optional | |
| 33-10 | 990C0-0090F-315 S/S Propeller 3x15.5x31.5 Front
SKU: 990C0-0090F-315 Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x31.5 Front | 1 | $ 892.71 | Optional | |
| 34 | 58520-98L00 Front Propeller Bushing
SKU: 58520-98L00 Weight: 1.000000 Brand: Price: $ 217.03 |
Front Propeller Bushing | 1 | $ 217.03 | Optional | |
| 35-1 | 990C0-0091R-18P S/S Propeller 3x15.5x18 Rear
SKU: 990C0-0091R-18P Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x18 Rear | 1 | $ 892.71 | Optional | |
| 35-1 | 990C0-0091R-195 S/S Propeller 3x15.5x19.5 Rear
SKU: 990C0-0091R-195 Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x19.5 Rear | 1 | $ 892.71 | Optional | |
| 35-2 | 990C0-0091R-21P S/S Propeller 3x15.5x21 Rear
SKU: 990C0-0091R-21P Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x21 Rear | 1 | $ 892.71 | Optional | |
| 35-3 | 990C0-0091R-225 S/S Propeller 3x15.5x22.5 Rear
SKU: 990C0-0091R-225 Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x22.5 Rear | 1 | $ 892.71 | Optional | |
| 35-4 | 990C0-0091R-24P S/S Propeller 3x15.5x24 Rear
SKU: 990C0-0091R-24P Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x24 Rear | 1 | $ 892.71 | Optional | |
| 35-5 | 990C0-0091R-255 S/S Propeller 3x15.5x25.5 Rear
SKU: 990C0-0091R-255 Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x25.5 Rear | 1 | $ 892.71 | Optional | |
| 35-6 | 990C0-0091R-27P PROP RR 3X15.5X
SKU: 990C0-0091R-27P Weight: 0.000000 Brand: Price: $ 892.71 |
PROP RR 3X15.5X | 1 | $ 892.71 | Optional | |
| 35-7 | 990C0-0090R-285 S/S Propeller 3x15.5x28.5 Rear
SKU: 990C0-0090R-285 Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x28.5 Rear | 1 | $ 892.71 | Optional | |
| 35-8 | 990C0-0090R-30P S/S Propeller 3x15.5x30 Rear
SKU: 990C0-0090R-30P Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x30 Rear | 1 | $ 892.71 | Optional | |
| 35-9 | 990C0-0090R-315 S/S Propeller 3x15.5x31.5 Rear
SKU: 990C0-0090R-315 Weight: 18.000000 Brand: Price: $ 892.71 |
S/S Propeller 3x15.5x31.5 Rear | 1 | $ 892.71 | Optional | |
| 36 | 58620-98L00 Rear Propeller Bushing
SKU: 58620-98L00 Weight: 1.000000 Brand: Price: $ 195.33 |
Rear Propeller Bushing | 1 | $ 195.33 | Optional | |
| 37 | 58640-98L00 Rear Propeller Nut Kit
SKU: 58640-98L00 Weight: 1.000000 Brand: Price: $ 37.82 |
Rear Propeller Nut Kit | 1 | $ 37.82 | Optional | |
| 38 | 58540-98L10 KIT,FRONT PROPE
SKU: 58540-98L10 Weight: 0.000000 Brand: Price: $ 121.54 |
KIT,FRONT PROPE | 1 | $ 121.54 | Optional | |
| 39 | 25700-98L04 Gear Case Seal Kit - DF 300B/350A 2017-2022
SKU: 25700-98L04 Weight: 0.250000 Brand: Price: $ 83.59 |
Gear Case Seal Kit - DF 300B/350A 2017-2022 | 1 | $ 83.59 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
