Suzuki DF 300B Parts Listings - 2020
S/N 30003F-040001 to 30003F-04XXXX

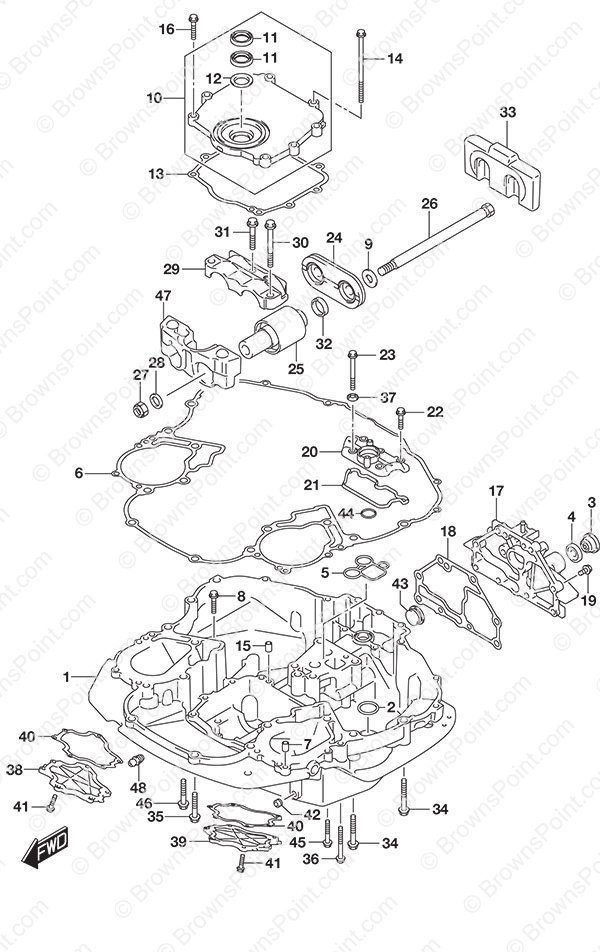

Fig. 401 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 51111-98L01-YAY HOLDER,ENGINE
SKU: 51111-98L01-YAY Weight: 0.000000 Brand: Price: $ 1,372.96 |
HOLDER,ENGINE | 1 | $ 1,372.96 | Black | |
| 1-2 | 51111-98L01-Y5S HOLDER,ENGINE
SKU: 51111-98L01-Y5S Weight: 0.000000 Brand: Price: $ 1,322.58 |
HOLDER,ENGINE | 1 | $ 1,322.58 | White | |
| 2 | 16519-93J00 Engine Holder Seal
SKU: 16519-93J00 Weight: 0.060000 Brand: Price: $ 5.02 |
Engine Holder Seal | 1 | $ 5.02 | ||
| 3 | 17913-93J00 Water Flush Plug
SKU: 17913-93J00 Weight: 0.060000 Brand: Price: $ 4.56 |
Water Flush Plug | 1 | $ 4.56 | ||
| 4 | 17914-93J01 Water Flush Plug Gasket
SKU: 17914-93J01 Weight: 0.060000 Brand: Price: $ 2.28 |
Water Flush Plug Gasket | 1 | $ 2.28 | ||
| 5 | 51116-98L00 Water Return Seal
SKU: 51116-98L00 Weight: 0.060000 Brand: Price: $ 6.36 |
Water Return Seal | 1 | $ 6.36 | ||
| 6 | 51211-98L00 Engine Holder Gasket
SKU: 51211-98L00 Weight: 1.000000 Brand: Price: $ 71.43 |
Engine Holder Gasket | 1 | $ 71.43 | ||
| 7 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 2 | $ 1.78 | ||
| 8 | 01550-1050A BOLT
SKU: 01550-1050A Weight: 0.060000 Brand: Price: $ 3.04 |
BOLT | 4 | $ 3.04 | ||
| 9 | 09160-14076 Washer (14.5x32x3)
SKU: 09160-14076 Weight: 0.060000 Brand: Price: $ 23.84 |
Washer (14.5x32x3) | 2 | $ 23.84 | ||
| 10 | 51120-98L00 Mount Oil Seal Cover Assembly
SKU: 51120-98L00 Weight: 1.000000 Brand: Price: $ 167.93 |
Mount Oil Seal Cover Assembly | 1 | $ 167.93 | ||
| 11 | 51124-93J01 Oil Seal
SKU: 51124-93J01 Weight: 0.060000 Brand: Price: $ 7.75 |
Oil Seal | 2 | $ 7.75 | ||
| 12 | 51125-93J00 Scrapper
SKU: 51125-93J00 Weight: 0.060000 Brand: Price: $ 11.18 |
Scrapper | 1 | $ 11.18 | ||
| 13 | 51123-98L00 Mount Oil Seal Cover Gasket
SKU: 51123-98L00 Weight: 0.060000 Brand: Price: $ 7.21 |
Mount Oil Seal Cover Gasket | 1 | $ 7.21 | ||
| 14 | 09103-08109 Bolt (8x120)
SKU: 09103-08109 Weight: 0.060000 Brand: Price: $ 3.22 |
Bolt (8x120) | 2 | $ 3.22 | ||
| 15 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 2 | $ 1.78 | ||
| 16 | 01550-0830A BOLT
SKU: 01550-0830A Weight: 0.060000 Brand: Price: $ 3.09 |
BOLT | 6 | $ 3.09 | ||
| 17 | 51140-98L00-019 Engine Holder Cover
SKU: 51140-98L00-019 Weight: 0.500000 Brand: Price: $ 303.23 |
Engine Holder Cover | 1 | $ 303.23 | ||
| 18 | 51142-98L00 Engine Holder Cover Gasket
SKU: 51142-98L00 Weight: 0.060000 Brand: Price: $ 7.28 |
Engine Holder Cover Gasket | 1 | $ 7.28 | ||
| 19 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 8 | $ 4.66 | ||
| 20 | 51151-98L00 Engine Holder Upper Cover
SKU: 51151-98L00 Weight: 0.250000 Brand: Price: $ 157.70 |
Engine Holder Upper Cover | 1 | $ 157.70 | ||
| 21 | 51152-98L00 Engine Holder Upper Cover Seal
SKU: 51152-98L00 Weight: 0.060000 Brand: Price: $ 12.23 |
Engine Holder Upper Cover Seal | 1 | $ 12.23 | ||
| 22 | 01550-0830C Bolt
SKU: 01550-0830C Weight: 0.060000 Brand: Price: $ 1.80 |
Bolt | 3 | $ 1.80 | ||
| 23 | 01550-0860C Bolt
SKU: 01550-0860C Weight: 0.060000 Brand: Price: $ 2.02 |
Bolt | 2 | $ 2.02 | ||
| 24 | 54120-98L00 Upper Mount Plate
SKU: 54120-98L00 Weight: 0.125000 Brand: Price: $ 90.14 |
Upper Mount Plate | 1 | $ 90.14 | ||
| 25 | 54130-98L01 Upper Mount
SKU: 54130-98L01 Weight: 0.500000 Brand: Price: $ 80.07 |
Upper Mount | 2 | $ 80.07 | ||
| 26 | 54112-93J00 Upper Mount Bolt
SKU: 54112-93J00 Weight: 0.250000 Brand: Price: $ 73.85 |
Upper Mount Bolt | 2 | $ 73.85 | ||
| 27 | 29159-93J00 Upper Mount Bolt Nut
SKU: 29159-93J00 Weight: 0.060000 Brand: Price: $ 13.25 |
Upper Mount Bolt Nut | 2 | $ 13.25 | ||
| 28 | 09160-15051 Upper Mount Bolt Washer
SKU: 09160-15051 Weight: 0.100000 Brand: Price: $ 1.96 |
Upper Mount Bolt Washer | 2 | $ 1.96 | ||
| 29 | 54137-93J02 Upper Mount Cover
SKU: 54137-93J02 Weight: 1.000000 Brand: Price: $ 82.13 |
Upper Mount Cover | 1 | $ 82.13 | ||
| 30 | 09116-10135 Bolt (10x95)
SKU: 09116-10135 Weight: 0.200000 Brand: Price: $ 8.85 |
Bolt (10x95) | 2 | $ 8.85 | ||
| 31 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 1 | $ 6.90 | ||
| 32 | 54127-98L00 Upper Side Mount
SKU: 54127-98L00 Weight: 0.060000 Brand: Price: $ 8.67 |
Upper Side Mount | 2 | $ 8.67 | ||
| 33 | 54140-98J11 MOUNT,UPPER THR
SKU: 54140-98J11 Weight: 0.000000 Brand: Price: $ 107.43 |
MOUNT,UPPER THR | 1 | $ 107.43 | ||
| 34 | 09116-10137 Bolt (10x70)
SKU: 09116-10137 Weight: 0.120000 Brand: Price: $ 8.02 |
Bolt (10x70) | 6 | $ 8.02 | ||
| 35 | 09116-10175 Bolt (10x50)
SKU: 09116-10175 Weight: 0.125000 Brand: Price: $ 6.90 |
Bolt (10x50) | 4 | $ 6.90 | ||
| 36 | 09116-08126 Bolt (8x65)
SKU: 09116-08126 Weight: 0.100000 Brand: Price: $ 4.34 |
Bolt (8x65) | 2 | $ 4.34 | ||
| 37 | 09169-08038 Washer (8.3x15x3)
SKU: 09169-08038 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (8.3x15x3) | 2 | $ 3.79 | ||
| 38 | 51161-98L00 Starboard Engine Holder Water Jacket Cover
SKU: 51161-98L00 Weight: 0.125000 Brand: Price: $ 157.70 |
Starboard Engine Holder Water Jacket Cover | 1 | $ 157.70 | ||
| 39 | 51165-98L00 Port Engine Holder Water Jacket Cover
SKU: 51165-98L00 Weight: 0.125000 Brand: Price: $ 157.70 |
Port Engine Holder Water Jacket Cover | 1 | $ 157.70 | ||
| 40 | 51162-98L00 Engine Holder Water Jacket Cover Gasket
SKU: 51162-98L00 Weight: 0.060000 Brand: Price: $ 13.10 |
Engine Holder Water Jacket Cover Gasket | 2 | $ 13.10 | ||
| 41 | 09116-06516 Bolt (6x25)
SKU: 09116-06516 Weight: 0.060000 Brand: Price: $ 3.18 |
Bolt (6x25) | 12 | $ 3.18 | ||
| 42 | 09246-08006 Plug
SKU: 09246-08006 Weight: 0.060000 Brand: Price: $ 6.87 |
Plug | 2 | $ 6.87 | ||
| 43 | 09248-26003 Plug
SKU: 09248-26003 Weight: 0.060000 Brand: Price: $ 19.80 |
Plug | 1 | $ 19.80 | ||
| 44 | 09280-26014 O-Ring
SKU: 09280-26014 Weight: 0.060000 Brand: Price: $ 4.95 |
O-Ring | 1 | $ 4.95 | ||
| 45 | 09116-08131 Bolt (8x45)
SKU: 09116-08131 Weight: 0.060000 Brand: Price: $ 4.89 |
Bolt (8x45) | 4 | $ 4.89 | ||
| 46 | 09116-10135 Bolt (10x95)
SKU: 09116-10135 Weight: 0.200000 Brand: Price: $ 8.85 |
Bolt (10x95) | 2 | $ 8.85 | ||
| 47 | 54180-98L01 MOUNT,UPPER SID
SKU: 54180-98L01 Weight: 0.000000 Brand: Price: $ 65.56 |
MOUNT,UPPER SID | 1 | $ 65.56 | ||
| 48 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 1 | $ 3.36 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
