Suzuki DF 300B Parts Listings - 2020
S/N 30003F-040001 to 30003F-04XXXX

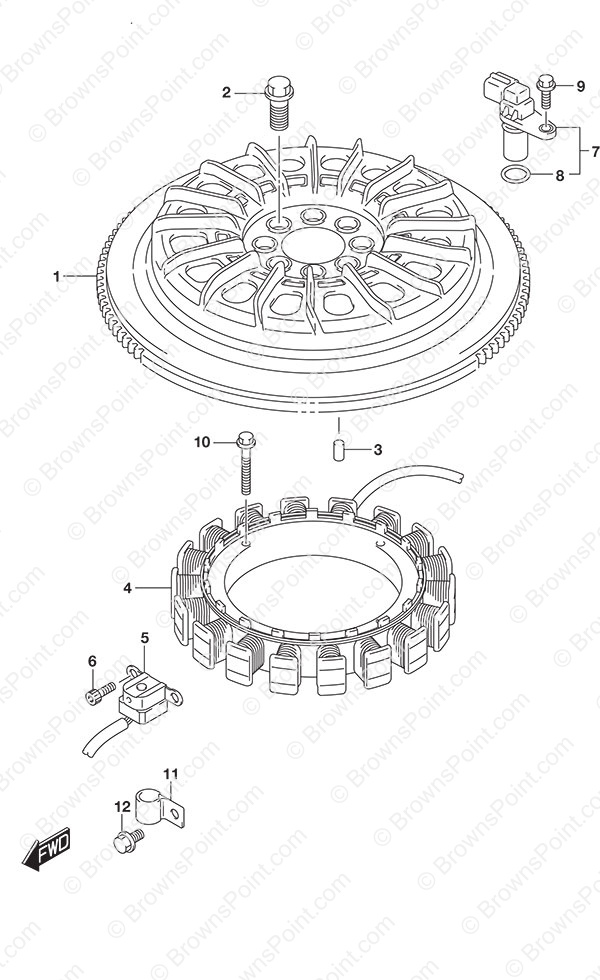

Fig. 303 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-98J20 FLYWHEEL COMP,M
SKU: 32102-98J20 Weight: 0.000000 Brand: Price: $ 869.59 |
FLYWHEEL COMP,M | 1 | $ 869.59 | ||
| 2 | 09103-12125 Flywheel Bolt (12x26)
SKU: 09103-12125 Weight: 0.125000 Brand: Price: $ 2.90 |
Flywheel Bolt (12x26) | 8 | $ 2.90 | ||
| 3 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 1 | $ 2.07 | ||
| 4 | 32120-98L10 COIL COMP,BATTE
SKU: 32120-98L10 Weight: 0.000000 Brand: Price: $ 535.01 |
COIL COMP,BATTE | 1 | $ 535.01 | ||
| 5 | 32160-98L00 Ignition Timing Coil
SKU: 32160-98L00 Weight: 0.250000 Brand: Price: $ 110.47 |
Ignition Timing Coil | 1 | $ 110.47 | ||
| 6 | 09106-05030 Bolt (5x10)
SKU: 09106-05030 Weight: 0.060000 Brand: Price: $ 2.62 |
Bolt (5x10) | 2 | $ 2.62 | ||
| 7 | 33220-98J00 Cam Position Sensor
SKU: 33220-98J00 Weight: 0.250000 Brand: Price: $ 117.17 |
Cam Position Sensor | 3 | $ 117.17 | ||
| 8 | 33221-42F00 O-Ring
SKU: 33221-42F00 Weight: 0.100000 Brand: Price: $ 6.88 |
O-Ring | 3 | $ 6.88 | ||
| 9 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 3 | $ 1.73 | ||
| 10 | 09103-06231 Bolt (6x35)
SKU: 09103-06231 Weight: 0.060000 Brand: Price: $ 2.81 |
Bolt (6x35) | 4 | $ 2.81 | ||
| 11 | 09403-13413 CLAMP
SKU: 09403-13413 Weight: 0.000000 Brand: Price: $ 5.28 |
CLAMP | 2 | $ 5.28 | ||
| 12 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
