Suzuki DF 300B Parts Listings - 2020
S/N 30003F-040001 to 30003F-04XXXX

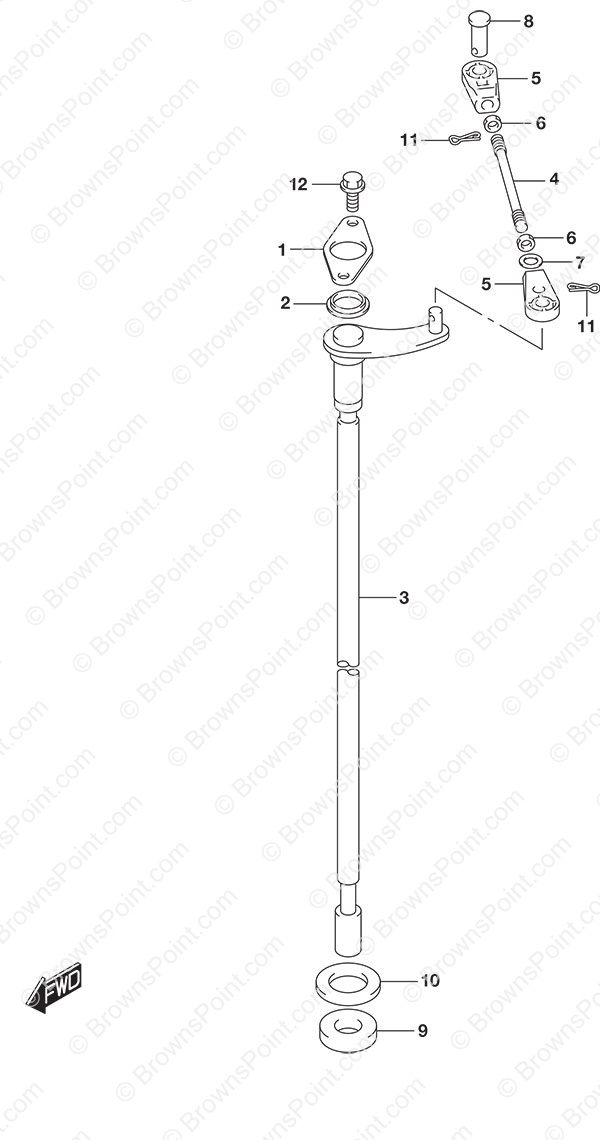

Fig. 204 - Clutch Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 21152-98L00 Clutch Shaft Plate
SKU: 21152-98L00 Weight: 0.060000 Brand: Price: $ 11.02 |
Clutch Shaft Plate | 1 | $ 11.02 | ||
| 2 | 21153-98L00 Clutch Shaft Bushing
SKU: 21153-98L00 Weight: 0.060000 Brand: Price: $ 9.96 |
Clutch Shaft Bushing | 1 | $ 9.96 | ||
| 3 | 21210-98L01 SHAFT COMP,CLUT
SKU: 21210-98L01 Weight: 0.000000 Brand: Price: $ 179.84 |
SHAFT COMP,CLUT | 1 | $ 179.84 | ||
| 4 | 21241-98L00 Clutch Lever Link
SKU: 21241-98L00 Weight: 0.060000 Brand: Price: $ 7.78 |
Clutch Lever Link | 1 | $ 7.78 | ||
| 5 | 67467-98L00 Clutch Connector
SKU: 67467-98L00 Weight: 0.060000 Brand: Price: $ 9.53 |
Clutch Connector | 2 | $ 9.53 | ||
| 6 | 09140-06023 Nut
SKU: 09140-06023 Weight: 0.100000 Brand: Price: $ 2.06 |
Nut | 2 | $ 2.06 | ||
| 7 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 1 | $ 1.63 | ||
| 8 | 09200-08074 Pin
SKU: 09200-08074 Weight: 0.060000 Brand: Price: $ 5.96 |
Pin | 1 | $ 5.96 | ||
| 9 | 09262-17019 Bearing (17x35x8)
SKU: 09262-17019 Weight: 0.125000 Brand: Price: $ 19.69 |
Bearing (17x35x8) | 1 | $ 19.69 | ||
| 10 | 09282-22008 Oil Seal (22x38x6)
SKU: 09282-22008 Weight: 0.060000 Brand: Price: $ 6.03 |
Oil Seal (22x38x6) | 1 | $ 6.03 | ||
| 11 | 09385-08004 Pin
SKU: 09385-08004 Weight: 0.060000 Brand: Price: $ 1.23 |
Pin | 2 | $ 1.23 | ||
| 12 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
