Suzuki DF 300B Parts Listings - 2020
S/N 30003F-040001 to 30003F-04XXXX

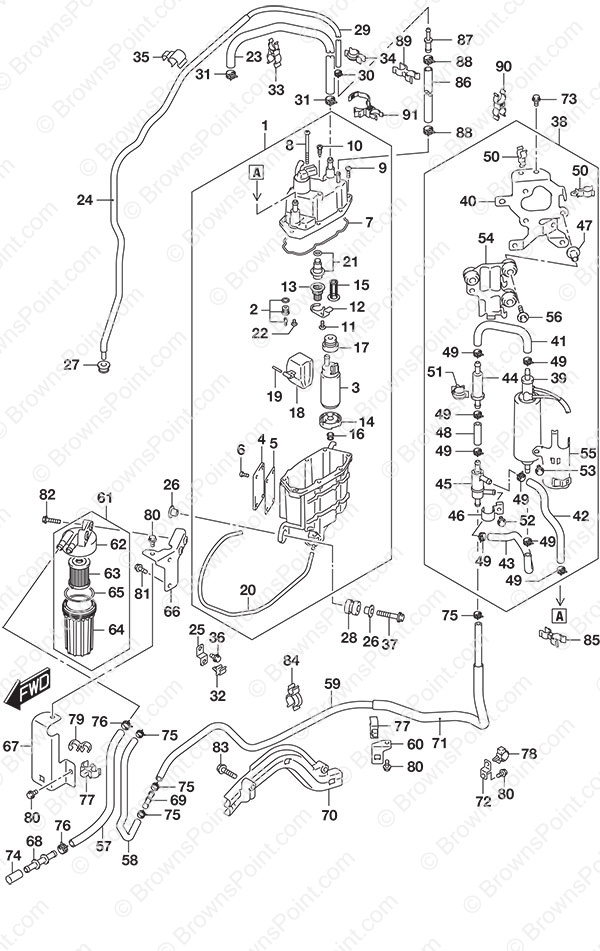

Fig. 147 - Fuel Pump/Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15600-98L21 Fuel Vapor Separator Assembly
SKU: 15600-98L21 Weight: 5.000000 Brand: Price: $ 880.34 |
Fuel Vapor Separator Assembly | 1 | $ 880.34 | ||
| 2 | 13370-93J10 Needle Valve Assembly
SKU: 13370-93J10 Weight: 0.060000 Brand: Price: $ 46.03 |
Needle Valve Assembly | 1 | $ 46.03 | ||
| 3 | 15200-98L00 Fuel Pump Assembly
SKU: 15200-98L00 Weight: 0.750000 Brand: Price: $ 370.40 |
Fuel Pump Assembly | 1 | $ 370.40 | High Pressure | |
| 4 | 15612-98L00 Cover
SKU: 15612-98L00 Weight: 0.125000 Brand: Price: $ 14.29 |
Cover | 1 | $ 14.29 | ||
| 5 | 15613-98L00 Gasket
SKU: 15613-98L00 Weight: 0.060000 Brand: Price: $ 15.33 |
Gasket | 1 | $ 15.33 | ||
| 6 | 15614-98L00 Screw
SKU: 15614-98L00 Weight: 0.060000 Brand: Price: $ 3.99 |
Screw | 4 | $ 3.99 | ||
| 7 | 15626-93J00 Separator Gasket
SKU: 15626-93J00 Weight: 0.060000 Brand: Price: $ 13.02 |
Separator Gasket | 1 | $ 13.02 | ||
| 8 | 15627-93J00 Screw (NLA)
SKU: 15627-93J00 Weight: 0.060000 Brand: Price: $ 4.29 |
Screw (NLA) | 1 | $ 4.29 | ||
| 9 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.42 |
Screw (L:15) | 6 | $ 2.42 | ||
| 10 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 5.49 |
Drain Screw | 2 | $ 5.49 | ||
| 11 | 15631-98L00 Screw
SKU: 15631-98L00 Weight: 0.060000 Brand: Price: $ 2.79 |
Screw | 1 | $ 2.79 | ||
| 12 | 15638-98L00 Plate
SKU: 15638-98L00 Weight: 0.060000 Brand: Price: $ 9.14 |
Plate | 1 | $ 9.14 | ||
| 13 | 15639-98L00 Cover
SKU: 15639-98L00 Weight: 0.060000 Brand: Price: $ 7.30 |
Cover | 1 | $ 7.30 | ||
| 14 | 15641-98L01 SPACER
SKU: 15641-98L01 Weight: 0.000000 Brand: Price: $ 19.51 |
SPACER | 1 | $ 19.51 | ||
| 15 | 15642-88L10 Fuel Filter
SKU: 15642-88L10 Weight: 0.060000 Brand: Price: $ 17.73 |
Fuel Filter | 1 | $ 17.73 | ||
| 16 | 15642-90J00 Fuel Pump Filter
SKU: 15642-90J00 Weight: 0.060000 Brand: Price: $ 11.18 |
Fuel Pump Filter | 1 | $ 11.18 | ||
| 17 | 15647-98L00 Fuel Pump Bushing
SKU: 15647-98L00 Weight: 0.060000 Brand: Price: $ 15.84 |
Fuel Pump Bushing | 1 | $ 15.84 | ||
| 18 | 15650-93J00 Float Assembly
SKU: 15650-93J00 Weight: 0.100000 Brand: Price: $ 69.39 |
Float Assembly | 1 | $ 69.39 | ||
| 19 | 15654-99E00 Float Pin
SKU: 15654-99E00 Weight: 0.060000 Brand: Price: $ 2.50 |
Float Pin | 1 | $ 2.50 | ||
| 20 | 15683-98L00 Drain Hose
SKU: 15683-98L00 Weight: 0.125000 Brand: Price: $ 7.08 |
Drain Hose | 1 | $ 7.08 | ||
| 21 | 15760-98L00 Fuel Pressure Regulator
SKU: 15760-98L00 Weight: 0.250000 Brand: Price: $ 145.84 |
Fuel Pressure Regulator | 1 | $ 145.84 | ||
| 22 | 02142-0408B SCREW
SKU: 02142-0408B Weight: 0.060000 Brand: Price: $ 1.72 |
SCREW | 1 | $ 1.72 | ||
| 23 | 15681-98L00 Fuel Hose (V/S to Delivery Pipe)
SKU: 15681-98L00 Weight: 0.125000 Brand: Price: $ 56.84 |
Fuel Hose (V/S to Delivery Pipe) | 1 | $ 56.84 | ||
| 24 | 18498-98L21 Hose Protector
SKU: 18498-98L21 Weight: 0.125000 Brand: Price: $ 4.95 |
Hose Protector | 1 | $ 4.95 | ||
| 25 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 1 | $ 2.00 | ||
| 26 | 09169-08042 Washer
SKU: 09169-08042 Weight: 0.060000 Brand: Price: $ 5.86 |
Washer | 6 | $ 5.86 | ||
| 27 | 09320-08520 CUSHION
SKU: 09320-08520 Weight: 0.000000 Brand: Price: $ 2.71 |
CUSHION | 1 | $ 2.71 | ||
| 28 | 09320-12072 Cushion
SKU: 09320-12072 Weight: 0.060000 Brand: Price: $ 2.32 |
Cushion | 3 | $ 2.32 | ||
| 29 | 09352-50003-06A Hose (5x8.2x106)
SKU: 09352-50003-06A Weight: 0.250000 Brand: Price: $ 64.68 |
Hose (5x8.2x106) | 1 | $ 64.68 | ||
| 30 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 31 | 09401-11425 Clip
SKU: 09401-11425 Weight: 0.060000 Brand: Price: $ 3.46 |
Clip | 2 | $ 3.46 | ||
| 32 | 09403-07323 Clamp
SKU: 09403-07323 Weight: 0.060000 Brand: Price: $ 2.21 |
Clamp | 1 | $ 2.21 | ||
| 33 | 09408-00056 Clip
SKU: 09408-00056 Weight: 0.100000 Brand: Price: $ 2.67 |
Clip | 1 | $ 2.67 | ||
| 34 | 09408-00142 Clip
SKU: 09408-00142 Weight: 0.060000 Brand: Price: $ 0.00 |
Clip | 1 | $ 0.00 | ||
| 35 | 09408-00198 Clamp
SKU: 09408-00198 Weight: 0.060000 Brand: Price: $ 0.00 |
Clamp | 3 | $ 0.00 | ||
| 36 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 37 | 01550-0840C Bolt
SKU: 01550-0840C Weight: 0.060000 Brand: Price: $ 1.80 |
Bolt | 3 | $ 1.80 | ||
| 38 | 15100-98L12 Fuel Pump Set (L)
SKU: 15100-98L12 Weight: 2.000000 Brand: Price: $ 1,001.43 |
Fuel Pump Set (L) | 1 | $ 1,001.43 | Low Pressure | |
| 39 | 15100-98J00 Fuel Pump (L)
SKU: 15100-98J00 Weight: 2.000000 Brand: Price: $ 698.95 |
Fuel Pump (L) | 1 | $ 698.95 | ||
| 40 | 15116-98L10 Fuel Pump Bracket (L)
SKU: 15116-98L10 Weight: 0.250000 Brand: Price: $ 24.88 |
Fuel Pump Bracket (L) | 1 | $ 24.88 | ||
| 41 | 15632-98L10 Fuel Hose (Pump to Filter)
SKU: 15632-98L10 Weight: 0.125000 Brand: Price: $ 15.51 |
Fuel Hose (Pump to Filter) | 1 | $ 15.51 | ||
| 42 | 15635-98L01 Fuel Hose (Valve to VST)
SKU: 15635-98L01 Weight: 0.125000 Brand: Price: $ 22.52 |
Fuel Hose (Valve to VST) | 1 | $ 22.52 | ||
| 43 | 15637-98L10 Fuel Hose (Valve to Pump)
SKU: 15637-98L10 Weight: 0.125000 Brand: Price: $ 21.61 |
Fuel Hose (Valve to Pump) | 1 | $ 21.61 | ||
| 44 | 15643-98L00 Fuel Filter (L)
SKU: 15643-98L00 Weight: 0.125000 Brand: Price: $ 26.63 |
Fuel Filter (L) | 1 | $ 26.63 | ||
| 45 | 15645-93J10 Check Valve
SKU: 15645-93J10 Weight: 0.125000 Brand: Price: $ 84.77 |
Check Valve | 1 | $ 84.77 | ||
| 46 | 15674-98L00 Check Valve Clip
SKU: 15674-98L00 Weight: 0.060000 Brand: Price: $ 8.15 |
Check Valve Clip | 1 | $ 8.15 | ||
| 47 | 09169-06093 Washer
SKU: 09169-06093 Weight: 0.060000 Brand: Price: $ 2.38 |
Washer | 3 | $ 2.38 | ||
| 48 | 09343-70503-040 Fuel Hose (7x12x40)
SKU: 09343-70503-040 Weight: 0.060000 Brand: Price: $ 3.93 |
Fuel Hose (7x12x40) | 1 | $ 3.93 | Filter to Valve | |
| 49 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 8 | $ 2.09 | ||
| 50 | 09403-13310 Clamp
SKU: 09403-13310 Weight: 0.060000 Brand: Price: $ 2.50 |
Clamp | 2 | $ 2.50 | ||
| 51 | 09403-16307 CLAMP
SKU: 09403-16307 Weight: 0.000000 Brand: Price: $ 2.20 |
CLAMP | 1 | $ 2.20 | ||
| 52 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 53 | 01570-06127 BOLT
SKU: 01570-06127 Weight: 0.062500 Brand: Price: $ 2.52 |
BOLT | 1 | $ 2.52 | ||
| 54 | 15114-93J00 Fuel Pump Bracket No. 1
SKU: 15114-93J00 Weight: 0.250000 Brand: Price: $ 17.70 |
Fuel Pump Bracket No. 1 | 1 | $ 17.70 | ||
| 55 | 15115-93J00 Fuel Pump Bracket No. 2
SKU: 15115-93J00 Weight: 0.250000 Brand: Price: $ 17.70 |
Fuel Pump Bracket No. 2 | 1 | $ 17.70 | ||
| 56 | 09116-06524 Bolt
SKU: 09116-06524 Weight: 0.060000 Brand: Price: $ 2.53 |
Bolt | 3 | $ 2.53 | ||
| 57 | 15191-98L20 Fuel Hose (Connector to Filter)
SKU: 15191-98L20 Weight: 0.125000 Brand: Price: $ 34.07 |
Fuel Hose (Connector to Filter) | 1 | $ 34.07 | ||
| 58 | 15192-98L00 Fuel Hose (Filter to 2 Way)
SKU: 15192-98L00 Weight: 0.125000 Brand: Price: $ 26.69 |
Fuel Hose (Filter to 2 Way) | 1 | $ 26.69 | ||
| 59 | 15193-98L00 Fuel Hose (2 Way to 2 Way)
SKU: 15193-98L00 Weight: 0.125000 Brand: Price: $ 56.84 |
Fuel Hose (2 Way to 2 Way) | 1 | $ 56.84 | ||
| 60 | 15198-98L00 Fuel Hose Bracket
SKU: 15198-98L00 Weight: 0.060000 Brand: Price: $ 4.68 |
Fuel Hose Bracket | 1 | $ 4.68 | ||
| 61 | 15410-98L00 Fuel Filter Assembly (L)
SKU: 15410-98L00 Weight: 1.000000 Brand: Price: $ 127.37 |
Fuel Filter Assembly (L) | 1 | $ 127.37 | ||
| 62 | 15411-93J10 Fuel Filter Cap
SKU: 15411-93J10 Weight: 0.250000 Brand: Price: $ 61.29 |
Fuel Filter Cap | 1 | $ 61.29 | ||
| 63 | 15412-93J10 Fuel Filter Element
SKU: 15412-93J10 Weight: 0.125000 Brand: Price: $ 24.80 |
Fuel Filter Element | 1 | $ 24.80 | ||
| 64 | 15413-98L00 Fuel Filter Cup
SKU: 15413-98L00 Weight: 0.250000 Brand: Price: $ 69.46 |
Fuel Filter Cup | 1 | $ 69.46 | ||
| 65 | 15415-93J10 Fuel Filter O-Ring
SKU: 15415-93J10 Weight: 0.060000 Brand: Price: $ 10.90 |
Fuel Filter O-Ring | 1 | $ 10.90 | ||
| 66 | 15421-98L01 BRACKET,FUEL FI
SKU: 15421-98L01 Weight: 0.000000 Brand: Price: $ 10.63 |
BRACKET,FUEL FI | 1 | $ 10.63 | ||
| 67 | 15423-98L00 Fuel Hose Guard
SKU: 15423-98L00 Weight: 0.250000 Brand: Price: $ 12.66 |
Fuel Hose Guard | 1 | $ 12.66 | ||
| 68 | 15830-98J01 Fuel Hose Joint
SKU: 15830-98J01 Weight: 0.060000 Brand: Price: $ 35.40 |
Fuel Hose Joint | 1 | $ 35.40 | ||
| 69 | 15831-96J00 2 Way Union
SKU: 15831-96J00 Weight: 0.100000 Brand: Price: $ 7.13 |
2 Way Union | 1 | $ 7.13 | ||
| 70 | 15852-98L00 Fuel Hose Guard
SKU: 15852-98L00 Weight: 0.250000 Brand: Price: $ 28.45 |
Fuel Hose Guard | 1 | $ 28.45 | ||
| 71 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.51 |
Hose Protector (L:610) | 1 | $ 11.51 | L:610->450 | |
| 72 | 36617-93J10 Harness Bracket
SKU: 36617-93J10 Weight: 0.060000 Brand: Price: $ 2.00 |
Harness Bracket | 1 | $ 2.00 | ||
| 73 | 09103-06267 Bolt (6x18)
SKU: 09103-06267 Weight: 0.100000 Brand: Price: $ 2.72 |
Bolt (6x18) | 2 | $ 2.72 | ||
| 74 | 09251-09009 PLUG
SKU: 09251-09009 Weight: 0.000000 Brand: Price: $ 3.40 |
PLUG | 1 | $ 3.40 | ||
| 75 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 4 | $ 2.09 | ||
| 76 | 09401-14409 Clip
SKU: 09401-14409 Weight: 0.200000 Brand: Price: $ 1.58 |
Clip | 2 | $ 1.58 | ||
| 77 | 09403-13308 Clamp
SKU: 09403-13308 Weight: 0.060000 Brand: Price: $ 1.80 |
Clamp | 2 | $ 1.80 | ||
| 78 | 09403-17403 Clamp
SKU: 09403-17403 Weight: 0.060000 Brand: Price: $ 2.01 |
Clamp | 1 | $ 2.01 | ||
| 79 | 09408-00121 Clamp (NLA)
SKU: 09408-00121 Weight: 0.200000 Brand: Price: $ 1.85 |
Clamp (NLA) | 1 | $ 1.85 | ||
| 80 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 4 | $ 1.73 | ||
| 81 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 | ||
| 82 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.46 |
BOLT | 2 | $ 1.46 | ||
| 83 | 01550-0630C BOLT
SKU: 01550-0630C Weight: 0.060000 Brand: Price: $ 2.24 |
BOLT | 2 | $ 2.24 | ||
| 84 | 09408-00142 Clip
SKU: 09408-00142 Weight: 0.060000 Brand: Price: $ 0.00 |
Clip | 1 | $ 0.00 | ||
| 85 | 09408-00054 Clamp (NLA)
SKU: 09408-00054 Weight: 0.060000 Brand: Price: $ 2.26 |
Clamp (NLA) | 1 | $ 2.26 | ||
| 86 | 09343-70503-600 Fuel Hose (7x12x600)
SKU: 09343-70503-600 Weight: 0.160000 Brand: Price: $ 53.16 |
Fuel Hose (7x12x600) | 1 | $ 53.16 | L:600->240 | |
| 87 | 15695-98L00 Evaporation Union
SKU: 15695-98L00 Weight: 0.060000 Brand: Price: $ 9.76 |
Evaporation Union | 1 | $ 9.76 | ||
| 88 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 2 | $ 2.09 | ||
| 89 | 09408-00050 Clip
SKU: 09408-00050 Weight: 0.060000 Brand: Price: $ 2.32 |
Clip | 1 | $ 2.32 | ||
| 90 | 09408-00173 Clamp
SKU: 09408-00173 Weight: 0.060000 Brand: Price: $ 3.92 |
Clamp | 2 | $ 3.92 | ||
| 91 | 09408-00337 Clip
SKU: 09408-00337 Weight: 0.060000 Brand: Price: $ 3.19 |
Clip | 1 | $ 3.19 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
- Prices and Part Numbers subject to change without notice.
- All contents of this website apply to the continental U.S. market only.
- All trademarks or product names mentioned herein are the property of their respective owners.
