Suzuki DF 250 Parts Listings - 2020
S/N 25004F-040001 to 25004F-04XXXX

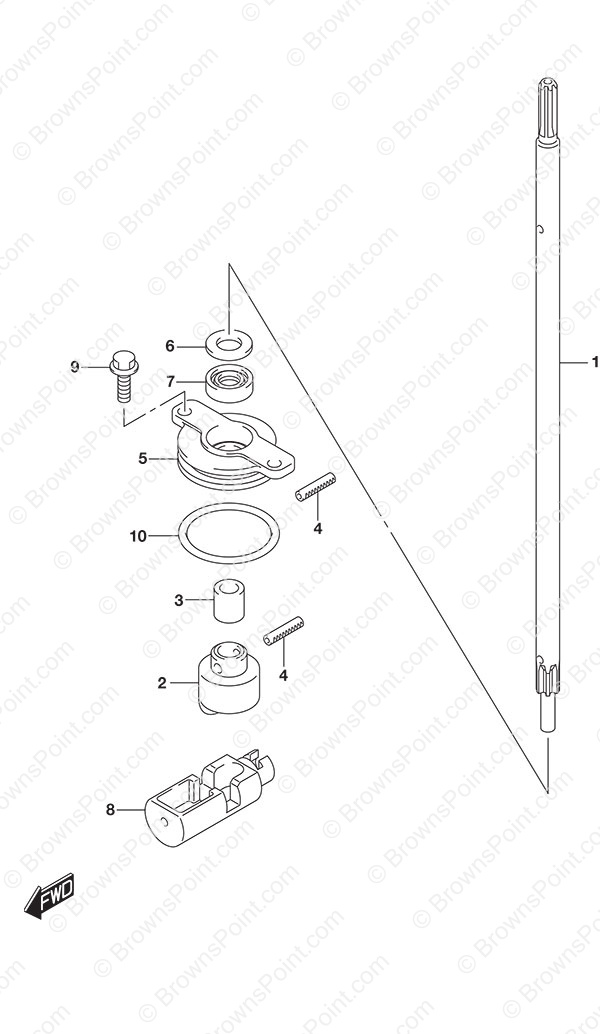

Fig. 206B - Clutch Rod SS Model

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 25111-98J00 Shift Rod (L, X) 1 $ 100.54
2 25131-98J00 Shifter Yoke 1 $ 154.27
3 25232-90J00 Gear Case Magnet 1 $ 6.49
4 09205-04002 Spring Pin (4x20) 2 $ 1.26
5 25141-98J01 Shift Rod Guide Housing 1 $ 12.33
6 25222-90J01 Shift Guide Cover Seal 1 $ 1.57
7 09283-10011 Oil Seal (10x22x8) 1 $ 5.87
8 25321-98J00 Horizontal Shift Slider 1 $ 164.92
9 29116-93J00 Bolt (6x20) 2 $ 2.55
10 09280-40019 O-Ring 1 $ 5.87

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
