Suzuki DF 175AP Parts Listings - 2020
S/N 17503P-040001 to 17503P-04XXXX

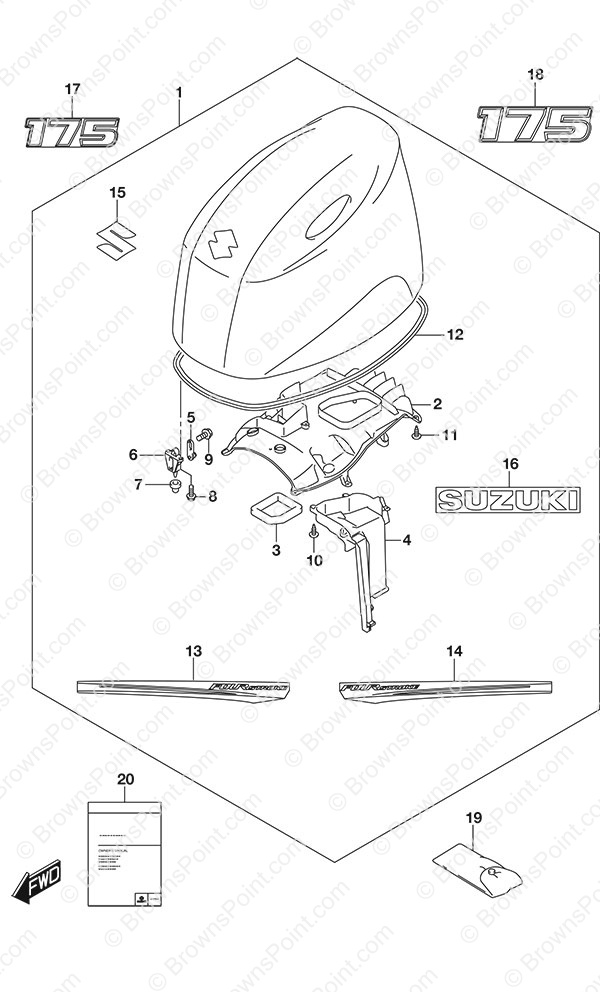

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61403-96800-YAY Engine Cover Set
SKU: 61403-96800-YAY Weight: 40.000000 Brand: Price: $ 1,650.24 |
Engine Cover Set | 1 | $ 1,650.24 | Black | |
| 1-2 | 61403-96810-Y5S Engine Cover Set
SKU: 61403-96810-Y5S Weight: 40.000000 Brand: Price: $ 1,602.17 |
Engine Cover Set | 1 | $ 1,602.17 | White | |
| 2 | 61433-96L00 Air Intake Inner Cover
SKU: 61433-96L00 Weight: 1.000000 Brand: Price: $ 57.56 |
Air Intake Inner Cover | 1 | $ 57.56 | ||
| 3 | 61476-96J10 Air Vent Seal
SKU: 61476-96J10 Weight: 0.250000 Brand: Price: $ 10.22 |
Air Vent Seal | 1 | $ 10.22 | ||
| 5 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 4 | 61565-96L00 Air Intake Duct
SKU: 61565-96L00 Weight: 1.000000 Brand: Price: $ 39.45 |
Air Intake Duct | 1 | $ 39.45 | ||
| 6 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 8 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 10 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 11 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 11 | $ 1.70 | ||
| 12 | 61112-96L00 Engine Cover Seal
SKU: 61112-96L00 Weight: 1.000000 Brand: Price: $ 47.41 |
Engine Cover Seal | 1 | $ 47.41 | ||
| 13-1 | 61443-96J70 Starboard Engine Cover Stripe
SKU: 61443-96J70 Weight: 0.250000 Brand: Price: $ 29.60 |
Starboard Engine Cover Stripe | 1 | $ 29.60 | Black | |
| 13-2 | 61443-96J80 Starboard Engine Cover Stripe
SKU: 61443-96J80 Weight: 0.250000 Brand: Price: $ 29.60 |
Starboard Engine Cover Stripe | 1 | $ 29.60 | White | |
| 14-1 | 61453-96J70 Port Engine Cover Stripe
SKU: 61453-96J70 Weight: 0.250000 Brand: Price: $ 29.60 |
Port Engine Cover Stripe | 1 | $ 29.60 | Black | |
| 14-2 | 61453-96J80 Port Engine Cover Stripe
SKU: 61453-96J80 Weight: 0.250000 Brand: Price: $ 28.62 |
Port Engine Cover Stripe | 1 | $ 28.62 | White | |
| 15 | 77811-54GC0-0PG Chrome S Emblem
SKU: 77811-54GC0-0PG Weight: 0.250000 Brand: Price: $ 20.13 |
Chrome S Emblem | 1 | $ 20.13 | ||
| 16 | 61441-98L00 Suzuki Mark
SKU: 61441-98L00 Weight: 0.250000 Brand: Price: $ 109.21 |
Suzuki Mark | 2 | $ 109.21 | ||
| 17-1 | 61422-96L40 Front Emblem Mark (175)
SKU: 61422-96L40 Weight: 0.250000 Brand: Price: $ 13.61 |
Front Emblem Mark (175) | 1 | $ 13.61 | Black | |
| 17-2 | 61422-96J90 Front Emblem Mark (175)
SKU: 61422-96J90 Weight: 0.250000 Brand: Price: $ 12.85 |
Front Emblem Mark (175) | 1 | $ 12.85 | White | |
| 18-1 | 61435-96L80 Rear Emblem Mark (175)
SKU: 61435-96L80 Weight: 0.250000 Brand: Price: $ 14.10 |
Rear Emblem Mark (175) | 1 | $ 14.10 | Black | |
| 18-2 | 61435-96JA0 Rear Emblem Mark (175)
SKU: 61435-96JA0 Weight: 0.125000 Brand: Price: $ 13.03 |
Rear Emblem Mark (175) | 1 | $ 13.03 | White | |
| 19 | 09800-81850 Tool Set
SKU: 09800-81850 Weight: 1.060000 Brand: Price: $ 55.30 |
Tool Set | 1 | $ 55.30 | ||
| 20 | 99011-96LD0-03B Owners Manual DF150AP/175AP/200AP - 2020
SKU: 99011-96LD0-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF150AP/175AP/200AP - 2020 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
