Suzuki DF 150A Parts Listings - 2020
S/N 15003F-040001 to 15003F-04XXXX
S/N 15003Z-040001 to 15003Z-04XXXX

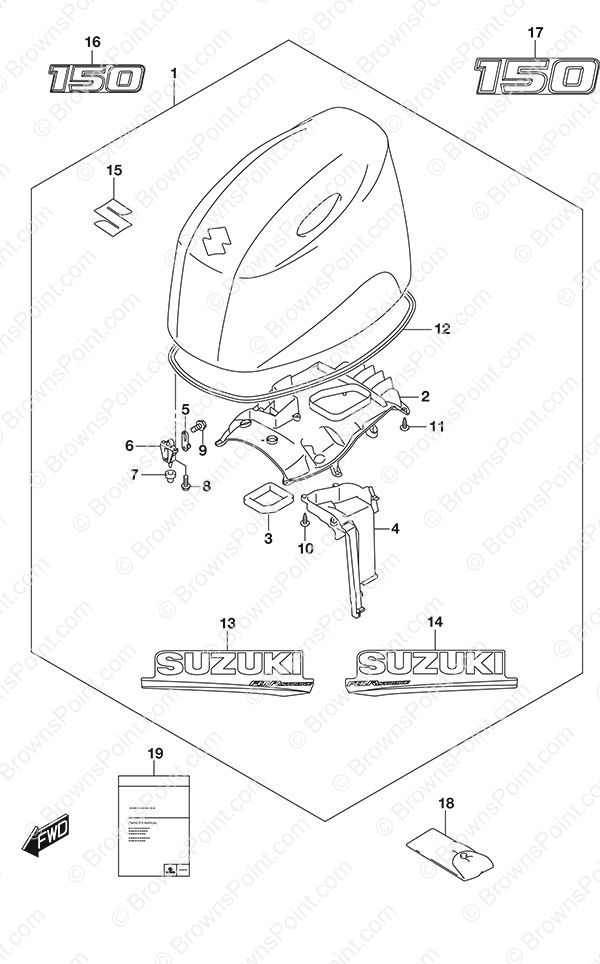

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61403-96882-YAY Engine Cover Set
SKU: 61403-96882-YAY Weight: 0.000000 Brand: Price: $ 1,311.14 |
Engine Cover Set | 1 | $ 1,311.14 | Black | |
| 1-2 | 61403-96890-Y5S Engine Cover Set
SKU: 61403-96890-Y5S Weight: 40.000000 Brand: Price: $ 1,657.55 |
Engine Cover Set | 1 | $ 1,657.55 | White | |
| 2 | 61433-96L00 Air Intake Inner Cover
SKU: 61433-96L00 Weight: 1.000000 Brand: Price: $ 57.56 |
Air Intake Inner Cover | 1 | $ 57.56 | ||
| 3 | 61476-96J10 Air Vent Seal
SKU: 61476-96J10 Weight: 0.250000 Brand: Price: $ 10.22 |
Air Vent Seal | 1 | $ 10.22 | ||
| 4 | 61565-96L00 Air Intake Duct
SKU: 61565-96L00 Weight: 1.000000 Brand: Price: $ 39.45 |
Air Intake Duct | 1 | $ 39.45 | ||
| 5 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 6 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 8 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 10 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 11 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 11 | $ 1.70 | ||
| 12 | 61112-96L00 Engine Cover Seal
SKU: 61112-96L00 Weight: 1.000000 Brand: Price: $ 47.41 |
Engine Cover Seal | 1 | $ 47.41 | ||
| 13-1 | 61443-96J50 Starboard Engine Cover Stripe
SKU: 61443-96J50 Weight: 0.250000 Brand: Price: $ 21.98 |
Starboard Engine Cover Stripe | 1 | $ 21.98 | For Black | |
| 13-2 | 61443-96J60 Starboard Engine Cover Stripe
SKU: 61443-96J60 Weight: 0.250000 Brand: Price: $ 32.15 |
Starboard Engine Cover Stripe | 1 | $ 32.15 | For White | |
| 14-1 | 61453-96J50 Port Engine Cover Stripe
SKU: 61453-96J50 Weight: 0.250000 Brand: Price: $ 21.98 |
Port Engine Cover Stripe | 1 | $ 21.98 | For Black | |
| 14-2 | 61453-96J60 Port Engine Cover Stripe
SKU: 61453-96J60 Weight: 0.250000 Brand: Price: $ 32.15 |
Port Engine Cover Stripe | 1 | $ 32.15 | For White | |
| 15 | 77811-54GC0-0PG Chrome S Emblem
SKU: 77811-54GC0-0PG Weight: 0.250000 Brand: Price: $ 20.13 |
Chrome S Emblem | 1 | $ 20.13 | ||
| 16-1 | 61422-96J60 Front Emblem Mark (150)
SKU: 61422-96J60 Weight: 0.250000 Brand: Price: $ 12.85 |
Front Emblem Mark (150) | 1 | $ 12.85 | For Black | |
| 16-2 | 61422-96J80 Front Emblem Mark (150)
SKU: 61422-96J80 Weight: 0.250000 Brand: Price: $ 12.67 |
Front Emblem Mark (150) | 1 | $ 12.67 | For White | |
| 17-1 | 61435-96J70 Rear Emblem Mark (150)
SKU: 61435-96J70 Weight: 0.125000 Brand: Price: $ 13.03 |
Rear Emblem Mark (150) | 1 | $ 13.03 | For Black | |
| 17-2 | 61435-96J90 Rear Emblem Mark (150)
SKU: 61435-96J90 Weight: 0.125000 Brand: Price: $ 12.83 |
Rear Emblem Mark (150) | 1 | $ 12.83 | For White | |
| 18 | 09800-81850 Tool Set
SKU: 09800-81850 Weight: 1.060000 Brand: Price: $ 55.30 |
Tool Set | 1 | $ 55.30 | ||
| 19 | 99011-96LC0-03B Owners Manual DF150A/175A/200A - 2020
SKU: 99011-96LC0-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF150A/175A/200A - 2020 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
