Suzuki DF 90A Parts Listings - 2020
S/N 09003F-040001 to 09003F-04XXXX

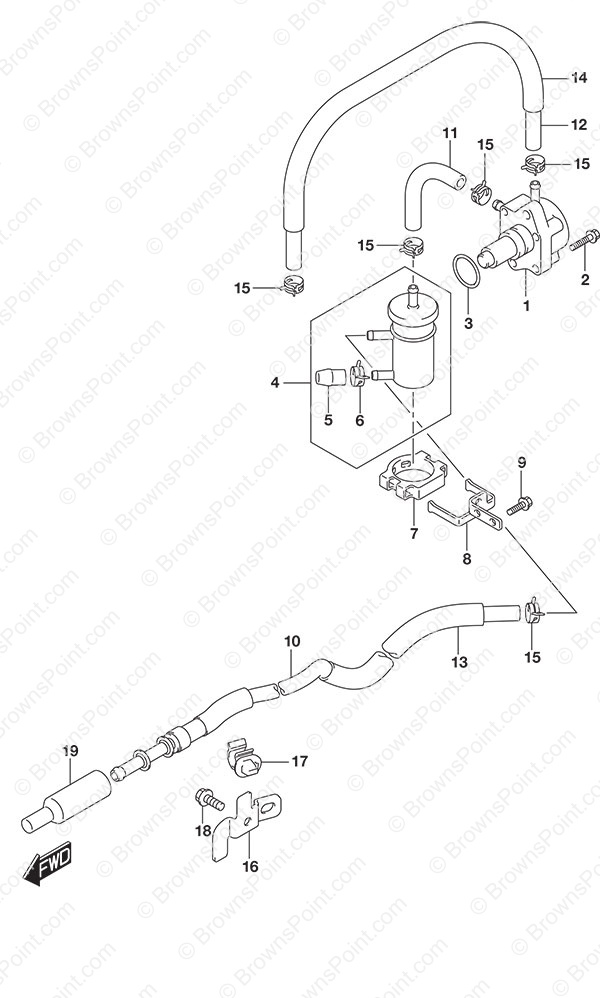

Fig. 146 - Fuel Pump
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 15100-90J11 Fuel Pump Assembly
SKU: 15100-90J11 Weight: 0.500000 Brand: Price: $ 171.55 |
Fuel Pump Assembly | 1 | $ 171.55 | ||
| 2 | 01550-0625C BOLT
SKU: 01550-0625C Weight: 0.060000 Brand: Price: $ 1.53 |
BOLT | 2 | $ 1.53 | ||
| 3 | 09280-26005 O-Ring
SKU: 09280-26005 Weight: 0.060000 Brand: Price: $ 2.45 |
O-Ring | 1 | $ 2.45 | ||
| 4 | 15410-87L00 Fuel Filter
SKU: 15410-87L00 Weight: 0.100000 Brand: Price: $ 18.11 |
Fuel Filter | 1 | $ 18.11 | ||
| 5 | 15419-87J00 Fuel Filter Cap
SKU: 15419-87J00 Weight: 0.060000 Brand: Price: $ 7.66 |
Fuel Filter Cap | 1 | $ 7.66 | ||
| 6 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.16 |
Clip | 1 | $ 2.16 | ||
| 7 | 15422-96J01 Fuel Filter Clamp
SKU: 15422-96J01 Weight: 0.060000 Brand: Price: $ 6.63 |
Fuel Filter Clamp | 1 | $ 6.63 | ||
| 8 | 15421-87L00 Fuel Filter Bracket
SKU: 15421-87L00 Weight: 0.250000 Brand: Price: $ 13.55 |
Fuel Filter Bracket | 1 | $ 13.55 | ||
| 9 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 2 | $ 1.82 | ||
| 10 | 15190-87L00 Fuel Hose
SKU: 15190-87L00 Weight: 0.250000 Brand: Price: $ 67.17 |
Fuel Hose | 1 | $ 67.17 | Joint to Filter | |
| 11 | 15192-87L11 Fuel Hose
SKU: 15192-87L11 Weight: 0.250000 Brand: Price: $ 15.94 |
Fuel Hose | 1 | $ 15.94 | Filter to Pump | |
| 12 | 09343-70503-600 Fuel Hose (7x12x600)
SKU: 09343-70503-600 Weight: 0.160000 Brand: Price: $ 55.85 |
Fuel Hose (7x12x600) | 1 | $ 55.85 | L:600->510 | |
| 13 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.91 |
Hose Protector (L:610) | 1 | $ 11.91 | L:600->340 | |
| 14 | 18498-99E11 Hose Protector (L:610)
SKU: 18498-99E11 Weight: 0.125000 Brand: Price: $ 11.91 |
Hose Protector (L:610) | 1 | $ 11.91 | L:610->450 | |
| 15 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.16 |
Clip | 5 | $ 2.16 | ||
| 16 | 15198-87L00 Fuel Hose Bracket
SKU: 15198-87L00 Weight: 0.125000 Brand: Price: $ 0.00 |
Fuel Hose Bracket | 1 | $ 0.00 | ||
| 17 | 09403-11320 Clamp
SKU: 09403-11320 Weight: 0.060000 Brand: Price: $ 2.65 |
Clamp | 1 | $ 2.65 | ||
| 18 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.82 |
BOLT | 1 | $ 1.82 | ||
| 19 | 15419-92J00 Joint Cap
SKU: 15419-92J00 Weight: 0.060000 Brand: Price: $ 0.00 |
Joint Cap | 1 | $ 0.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
