Suzuki DF 70A Parts Listings - 2020
S/N 07003F-040001 to 07003F-04XXXX

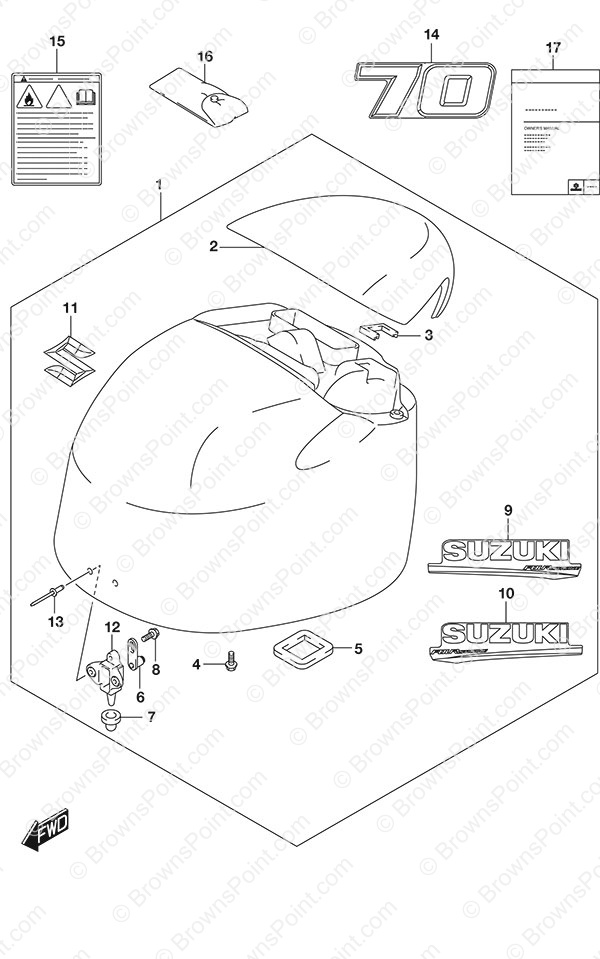

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61401-87Y01-YAY Engine Cover Set
SKU: 61401-87Y01-YAY Weight: 20.000000 Brand: Price: $ 1,011.47 |
Engine Cover Set | 1 | $ 1,011.47 | Black | |
| 1-2 | 61401-87Y11-Y5S Engine Cover Set
SKU: 61401-87Y11-Y5S Weight: 20.000000 Brand: Price: $ 1,077.82 |
Engine Cover Set | 1 | $ 1,077.82 | White | |
| 2-1 | 61431-87L21-YAY Tilt Up Handle
SKU: 61431-87L21-YAY Weight: 2.000000 Brand: Price: $ 200.54 |
Tilt Up Handle | 1 | $ 200.54 | Black | |
| 2-2 | 61431-87L21-Y5S Tilt Up Handle
SKU: 61431-87L21-Y5S Weight: 2.000000 Brand: Price: $ 216.25 |
Tilt Up Handle | 1 | $ 216.25 | White | |
| 3 | 61439-87L00 Tilt Up Handle Seal (NLA)
SKU: 61439-87L00 Weight: 0.200000 Brand: Price: $ 4.97 |
Tilt Up Handle Seal (NLA) | 1 | $ 4.97 | ||
| 4 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 4 | $ 1.73 | ||
| 5 | 61476-87L00 Air Vent Seal (NLA)
SKU: 61476-87L00 Weight: 0.200000 Brand: Price: $ 4.83 |
Air Vent Seal (NLA) | 1 | $ 4.83 | ||
| 6 | 61610-93J00 Fastener
SKU: 61610-93J00 Weight: 0.060000 Brand: Price: $ 16.59 |
Fastener | 2 | $ 16.59 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 2 | $ 4.06 | ||
| 8 | 01550-0616C BOLT
SKU: 01550-0616C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 | ||
| 9-1 | 61443-88L20 Starboard Engine Cover Stripe
SKU: 61443-88L20 Weight: 0.100000 Brand: Price: $ 18.27 |
Starboard Engine Cover Stripe | 1 | $ 18.27 | For Black | |
| 9-2 | 61443-88L30 Starboard Engine Cover Stripe
SKU: 61443-88L30 Weight: 0.250000 Brand: Price: $ 26.49 |
Starboard Engine Cover Stripe | 1 | $ 26.49 | For White | |
| 10-1 | 61453-88L20 Port Engine Cover Stripe
SKU: 61453-88L20 Weight: 0.250000 Brand: Price: $ 18.27 |
Port Engine Cover Stripe | 1 | $ 18.27 | For Black | |
| 10-2 | 61453-88L30 Port Engine Cover Stripe
SKU: 61453-88L30 Weight: 0.250000 Brand: Price: $ 26.49 |
Port Engine Cover Stripe | 1 | $ 26.49 | For White | |
| 11 | 68111-87L00 Emblem Mark 'S'
SKU: 68111-87L00 Weight: 0.060000 Brand: Price: $ 11.31 |
Emblem Mark 'S' | 1 | $ 11.31 | ||
| 12 | 61621-87L00 Fastener Bracket
SKU: 61621-87L00 Weight: 0.125000 Brand: Price: $ 18.05 |
Fastener Bracket | 2 | $ 18.05 | ||
| 13 | 09229-04025 Rivet
SKU: 09229-04025 Weight: 0.060000 Brand: Price: $ 2.82 |
Rivet | 4 | $ 2.82 | ||
| 14-1 | 61435-87LB0 Emblem Mark (70)
SKU: 61435-87LB0 Weight: 0.200000 Brand: Price: $ 9.60 |
Emblem Mark (70) | 2 | $ 9.60 | For Black | |
| 14-2 | 61435-87LE0 Emblem Mark (70)
SKU: 61435-87LE0 Weight: 0.200000 Brand: Price: $ 9.95 |
Emblem Mark (70) | 2 | $ 9.95 | For White | |
| 15 | 61458-90J01 Engine Cover Label
SKU: 61458-90J01 Weight: 0.125000 Brand: Price: $ 4.27 |
Engine Cover Label | 1 | $ 4.27 | ||
| 16 | 09800-81841 Tool Set
SKU: 09800-81841 Weight: 1.060000 Brand: Price: $ 28.52 |
Tool Set | 1 | $ 28.52 | ||
| 17 | 99011-87L80-03B Owners Manual DF70A/90A - 2020
SKU: 99011-87L80-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF70A/90A - 2020 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
