Suzuki DF 70A Parts Listings - 2020
S/N 07003F-040001 to 07003F-04XXXX

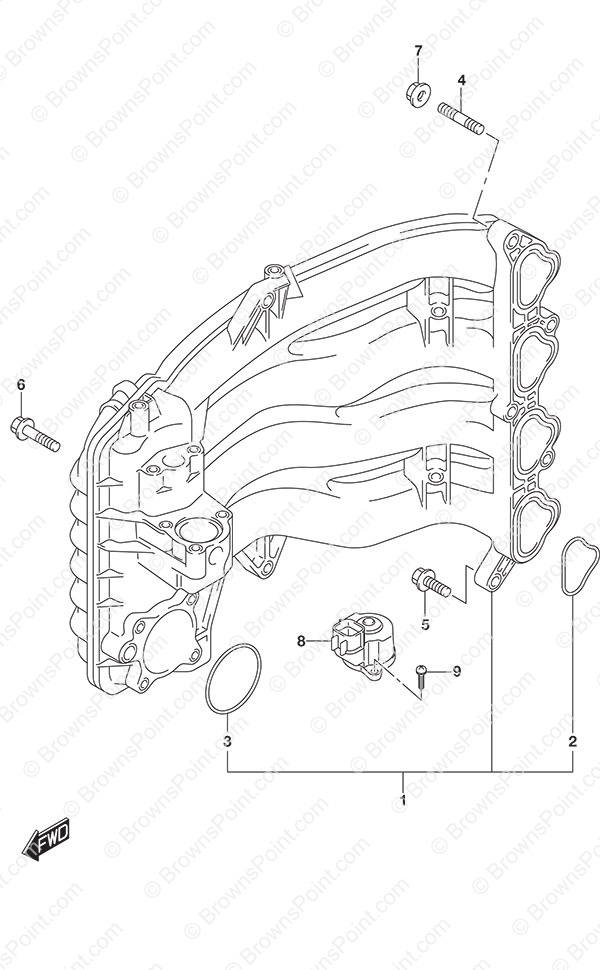

Fig. 122 - Intake Manifold
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13110-87L00 Intake Manifold
SKU: 13110-87L00 Weight: 10.000000 Brand: Price: $ 524.90 |
Intake Manifold | 1 | $ 524.90 | ||
| 2 | 13119-87L00 Intake Manifold Gasket
SKU: 13119-87L00 Weight: 0.060000 Brand: Price: $ 17.33 |
Intake Manifold Gasket | 4 | $ 17.33 | ||
| 3 | 13125-87L00 Throttle Body Gasket
SKU: 13125-87L00 Weight: 0.060000 Brand: Price: $ 20.96 |
Throttle Body Gasket | 1 | $ 20.96 | ||
| 4 | 01421-08257 BOLT, STUD
SKU: 01421-08257 Weight: 0.100000 Brand: Price: $ 4.37 |
BOLT, STUD | 2 | $ 4.37 | ||
| 5 | 01550-0830C Bolt
SKU: 01550-0830C Weight: 0.060000 Brand: Price: $ 1.80 |
Bolt | 4 | $ 1.80 | ||
| 6 | 01550-0845C Bolt
SKU: 01550-0845C Weight: 0.060000 Brand: Price: $ 0.00 |
Bolt | 1 | $ 0.00 | ||
| 7 | 08316-1008C Nut
SKU: 08316-1008C Weight: 0.060000 Brand: Price: $ 0.00 |
Nut | 2 | $ 0.00 | ||
| 8 | 18137-87L02 IAC Valve
SKU: 18137-87L02 Weight: 0.300000 Brand: Price: $ 261.24 |
IAC Valve | 1 | $ 261.24 | ||
| 9 | 02112-34167 SCREW
SKU: 02112-34167 Weight: 0.060000 Brand: Price: $ 2.14 |
SCREW | 3 | $ 2.14 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
