Suzuki DF 60A Parts Listings - 2020
S/N 06002F-040001 to 06002F-04XXXX

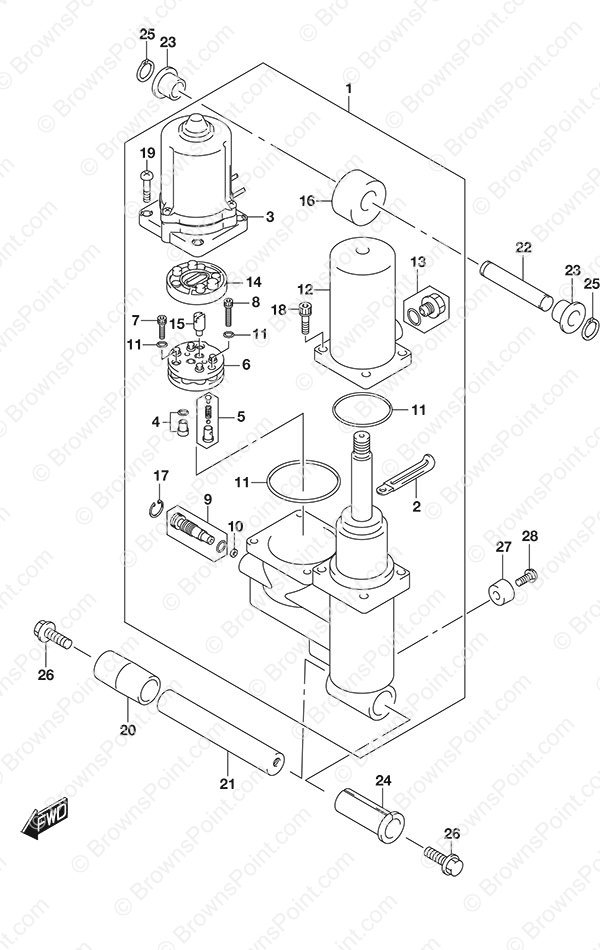

Fig. 337A - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48000-88L30 TRIM ASSY,POWER
SKU: 48000-88L30 Weight: 0.000000 Brand: Price: $ 1,579.71 |
TRIM ASSY,POWER | 1 | $ 1,579.71 | ||
| 2 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 3 | 38100-88L12 PTT Motor Assembly
SKU: 38100-88L12 Weight: 5.000000 Brand: Price: $ 580.61 |
PTT Motor Assembly | 1 | $ 580.61 | ||
| 4 | 48320-87J10 Up Pressure Valve
SKU: 48320-87J10 Weight: 0.100000 Brand: Price: $ 40.01 |
Up Pressure Valve | 1 | $ 40.01 | ||
| 5 | 48330-87J10 Down Pressure Valve
SKU: 48330-87J10 Weight: 0.250000 Brand: Price: $ 32.15 |
Down Pressure Valve | 1 | $ 32.15 | ||
| 6 | 48510-97E00 Gear Pump Assembly
SKU: 48510-97E00 Weight: 0.300000 Brand: Price: $ 137.24 |
Gear Pump Assembly | 1 | $ 137.24 | ||
| 7 | 48541-87J10 Bolt (NLA)
SKU: 48541-87J10 Weight: 0.100000 Brand: Price: $ 9.31 |
Bolt (NLA) | 2 | $ 9.31 | ||
| 8 | 48541-87J20 Bolt (NLA)
SKU: 48541-87J20 Weight: 0.100000 Brand: Price: $ 9.80 |
Bolt (NLA) | 1 | $ 9.80 | ||
| 9 | 48551-88L00 Manual Valve
SKU: 48551-88L00 Weight: 0.250000 Brand: Price: $ 94.90 |
Manual Valve | 1 | $ 94.90 | ||
| 10 | 48553-88L00 Washer Seal
SKU: 48553-88L00 Weight: 0.060000 Brand: Price: $ 15.01 |
Washer Seal | 1 | $ 15.01 | ||
| 11 | 48557-87J10 O-Ring Set
SKU: 48557-87J10 Weight: 0.060000 Brand: Price: $ 12.65 |
O-Ring Set | 1 | $ 12.65 | ||
| 12 | 48571-88L01 Reservoir Tank
SKU: 48571-88L01 Weight: 1.000000 Brand: Price: $ 168.08 |
Reservoir Tank | 1 | $ 168.08 | ||
| 13 | 48572-87L00 Plug
SKU: 48572-87L00 Weight: 0.200000 Brand: Price: $ 21.60 |
Plug | 1 | $ 21.60 | ||
| 14 | 48582-97E01 Filter
SKU: 48582-97E01 Weight: 0.100000 Brand: Price: $ 19.97 |
Filter | 1 | $ 19.97 | ||
| 15 | 48583-87J10 Drive Joint
SKU: 48583-87J10 Weight: 0.060000 Brand: Price: $ 22.14 |
Drive Joint | 1 | $ 22.14 | ||
| 16 | 48611-88L00 Metal Joint (NLA)
SKU: 48611-88L00 Weight: 0.250000 Brand: Price: $ 166.85 |
Metal Joint (NLA) | 1 | $ 166.85 | ||
| 17 | 48681-87J11 Circlip
SKU: 48681-87J11 Weight: 0.100000 Brand: Price: $ 9.47 |
Circlip | 1 | $ 9.47 | ||
| 18 | 48862-87J20 Reservoir Tank Bolt
SKU: 48862-87J20 Weight: 0.060000 Brand: Price: $ 15.52 |
Reservoir Tank Bolt | 4 | $ 15.52 | ||
| 19 | 48862-88L00 PTT Motor Screw
SKU: 48862-88L00 Weight: 0.060000 Brand: Price: $ 9.72 |
PTT Motor Screw | 4 | $ 9.72 | ||
| 20 | 47225-88L00 Tilt Cylinder Lower Collar
SKU: 47225-88L00 Weight: 0.250000 Brand: Price: $ 4.34 |
Tilt Cylinder Lower Collar | 1 | $ 4.34 | ||
| 21 | 48121-88L00 Tilt Cylinder Lower Shaft
SKU: 48121-88L00 Weight: 0.250000 Brand: Price: $ 96.03 |
Tilt Cylinder Lower Shaft | 1 | $ 96.03 | ||
| 22 | 48321-89J11 Tilt Cylinder Upper Shaft
SKU: 48321-89J11 Weight: 0.100000 Brand: Price: $ 18.30 |
Tilt Cylinder Upper Shaft | 1 | $ 18.30 | ||
| 23 | 48325-89J00 Tilt Cylinder Upper Bushing
SKU: 48325-89J00 Weight: 0.125000 Brand: Price: $ 3.65 |
Tilt Cylinder Upper Bushing | 2 | $ 3.65 | ||
| 24 | 48326-87J00 Tilt Cylinder Lower Bushing
SKU: 48326-87J00 Weight: 0.125000 Brand: Price: $ 8.84 |
Tilt Cylinder Lower Bushing | 1 | $ 8.84 | ||
| 25 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 | ||
| 26 | 09116-10179 Bolt (10x35)
SKU: 09116-10179 Weight: 0.125000 Brand: Price: $ 11.01 |
Bolt (10x35) | 2 | $ 11.01 | ||
| 27 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | ||
| 28 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
