Suzuki DF 25A Parts Listings - 2020
S/N 02504F-040001 to 02504F-04XXXX

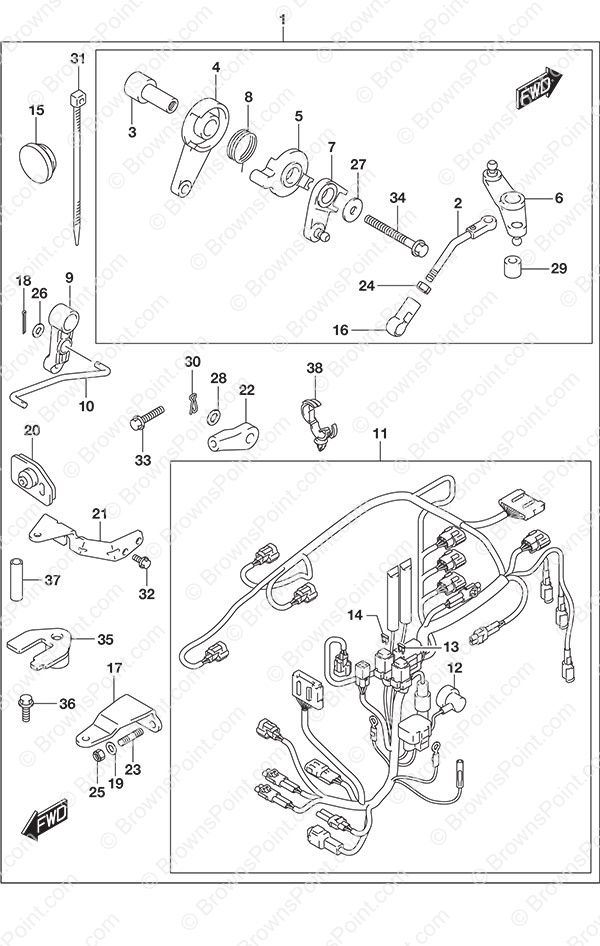

Fig. 513A - Opt: Remote Control Parts Non-Remote Control

Ref# Part Number Description Req Qty* Price Each Order Remarks
1 67130-94L03 PARTS SET,R/CO 1 $ 661.40
2 13510-94L00 Throttle Rod No 1 1 $ 8.58
3 19116-94L00 Throttle Lever Holder 1 $ 6.35
4 19120-99J11 Throttle Control Lever 1 $ 6.84
5 19122-99J00 Interlink Throttle Lever No 2 1 $ 11.11
6 19140-94L01 Throttle Lever No 2 1 $ 39.24
7 19140-94L20 Throttle Control Lever No 2 1 $ 16.63
8 19185-99J00 Throttle Lever Spring 1 $ 6.49
9 21110-94L00 Clutch Control Lever 1 $ 18.18
10 23115-94L10 Clutch Lever Link 1 $ 6.08
11 36610-94L20 Wiring Harness Assembly 1 $ 521.60

Not Available

12 36618-43410 Oil Pressure Switch Cap (NLA) 1 $ 2.60
13 09481-10501 10 Amp Fuse 1 $ 2.06
14 09481-30501 30 Amp Fuse 1 $ 2.33
15 37163-89L00 Starting Switch Hole Plug 1 $ 4.14
16 19131-95502 Connector 1 $ 4.52
17 43755-94L00 Steering Bracket Attachment 1 $ 45.71
18 09204-01002 Cotter Pin 2 $ 1.70
19 09160-08082 Washer (8.5x16x1.2) 2 $ 1.63
20 61124-94L10 Remocon Cable Grommet 1 $ 39.47
21 67341-94L00 Remocon Cable Holder 1 $ 20.62
22 67467-89J01 Cable Connector 2 $ 7.75
23 09108-08286 Stud Bolt 2 $ 14.70
24 09140-05005 Nut 1 $ 2.65
25 09159-08059 Nut 2 $ 5.21
26 09160-05029 Washer (5.5x10x0.8) 2 $ 1.70
27 09160-06046 Washer (6.5x20x1.5) 2 $ 1.99
28 09160-06055 Washer (7x12x1.0) 2 $ 1.70
29 09180-06230 Spacer (6.2x12.6x12.5) 1 $ 6.41
30 09385-06012 Clip 2 $ 1.91
31 09407-14407 Clamp (L:140) 2 $ 3.09
32 01547-06167 BOLT 6X16 2 $ 1.66
33 01550-06257 BOLT 1 $ 2.33
34 01550-06557 BOLT 1 $ 2.84
35 67343-94L00 Remocon Cable Stopper 1 $ 11.91
36 09116-06225 Bolt (6x16) 1 $ 2.60
37 09352-70104-600 Hose (7x10.2x600) 2 $ 5.72
L:600->14
38 09403-20308 Clip 1 $ 3.61

Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each. The information on this page is specific to the model and year and/or serial number shown in the header above.

Please verify your model and serial number before placing your order.
