Suzuki DF 2.5 Parts Listings - 2020
S/N 00252F-040001 to 00252F-04XXXX

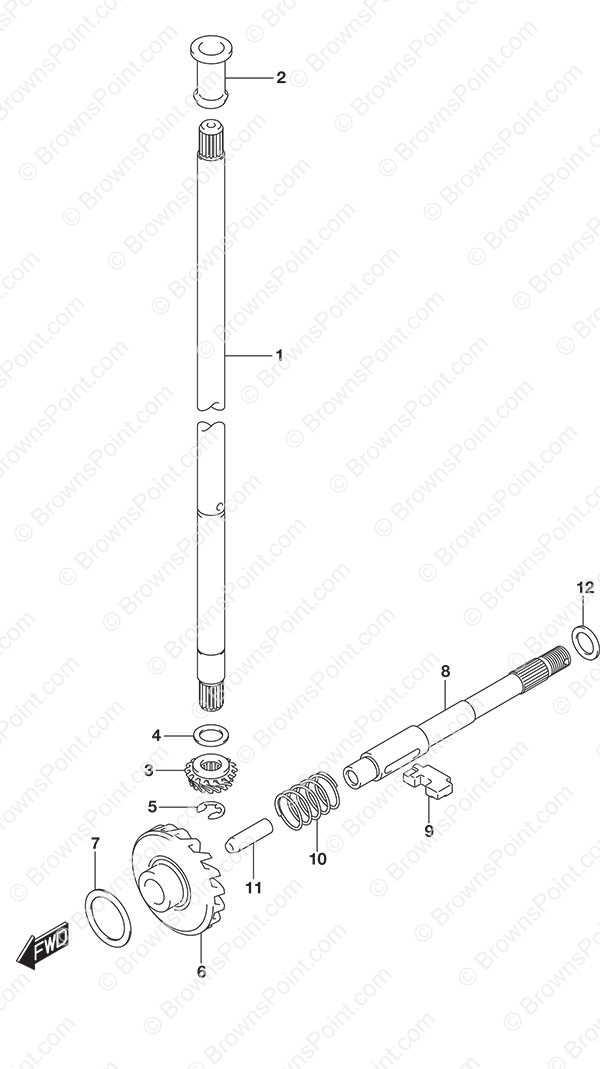

Fig. 230 - Drive Shaft
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 57111-97J11 Drive Shaft (S)
SKU: 57111-97J11 Weight: 2.000000 Brand: Price: $ 118.24 |
Drive Shaft (S) | 1 | $ 118.24 | w/Transom (S) | |
| 1-2 | 57111-97J20 Drive Shaft (L)
SKU: 57111-97J20 Weight: 2.000000 Brand: Price: $ 129.82 |
Drive Shaft (L) | 1 | $ 129.82 | w/Transom (L) | |
| 2-1 | 57130-91J00 Drive Shaft Bushing
SKU: 57130-91J00 Weight: 0.060000 Brand: Price: $ 11.66 |
Drive Shaft Bushing | 1 | $ 11.66 | w/Transom (S) | |
| 2-2 | 57130-91J00 Drive Shaft Bushing
SKU: 57130-91J00 Weight: 0.060000 Brand: Price: $ 11.66 |
Drive Shaft Bushing | 2 | $ 11.66 | w/Transom (L) | |
| 3 | 57311-97JM0 Pinion Gear
SKU: 57311-97JM0 Weight: 0.100000 Brand: Price: $ 49.77 |
Pinion Gear | 1 | $ 49.77 | ||
| 4-1 | 09181-10021 Shim (1.80)
SKU: 09181-10021 Weight: 0.062500 Brand: Price: $ 3.10 |
Shim (1.80) | 1 | $ 3.10 | Pinion Adjust | |
| 4-2 | 09181-10022 Shim (1.90)
SKU: 09181-10022 Weight: 0.062500 Brand: Price: $ 3.10 |
Shim (1.90) | 1 | $ 3.10 | Pinion Adjust | |
| 4-3 | 09181-10023 Shim (2.00)
SKU: 09181-10023 Weight: 0.062500 Brand: Price: $ 3.10 |
Shim (2.00) | 1 | $ 3.10 | Pinion Adjust | |
| 4-4 | 09181-10024 Shim (2.10)
SKU: 09181-10024 Weight: 0.062500 Brand: Price: $ 3.10 |
Shim (2.10) | 1 | $ 3.10 | Pinion Adjust | |
| 4-5 | 09181-10025 Shim (2.20)
SKU: 09181-10025 Weight: 0.062500 Brand: Price: $ 3.10 |
Shim (2.20) | 1 | $ 3.10 | Pinion Adjust | |
| 5 | 08332-1106A E Ring
SKU: 08332-1106A Weight: 0.060000 Brand: Price: $ 1.44 |
E Ring | 1 | $ 1.44 | ||
| 6 | 57510-97JM0 Forward Gear
SKU: 57510-97JM0 Weight: 0.100000 Brand: Price: $ 137.24 |
Forward Gear | 1 | $ 137.24 | ||
| 7-1 | 09181-17022 Shim (0.30)
SKU: 09181-17022 Weight: 0.060000 Brand: Price: $ 3.24 |
Shim (0.30) | 1 | $ 3.24 | Fwd Gear Backup | |
| 7-2 | 09181-17023 Shim (0.40)
SKU: 09181-17023 Weight: 0.060000 Brand: Price: $ 3.24 |
Shim (0.40) | 1 | $ 3.24 | Fwd Gear Backup | |
| 7-3 | 09181-17024 Shim (0.50) (NLA)
SKU: 09181-17024 Weight: 0.125000 Brand: Price: $ 2.41 |
Shim (0.50) (NLA) | 1 | $ 2.41 | Fwd Gear Backup | |
| 7-4 | 09181-17025 Shim (0.60)(NLA)
SKU: 09181-17025 Weight: 0.060000 Brand: Price: $ 2.46 |
Shim (0.60)(NLA) | 1 | $ 2.46 | Fwd Gear Backup | |
| 8 | 57611-97J10 Propeller Shaft Assembly
SKU: 57611-97J10 Weight: 0.100000 Brand: Price: $ 151.07 |
Propeller Shaft Assembly | 1 | $ 151.07 | ||
| 9 | 57621-97J10 Clutch Dog Shifter
SKU: 57621-97J10 Weight: 0.250000 Brand: Price: $ 23.74 |
Clutch Dog Shifter | 1 | $ 23.74 | ||
| 10 | 59441-97J20 Return Spring
SKU: 59441-97J20 Weight: 0.100000 Brand: Price: $ 3.00 |
Return Spring | 1 | $ 3.00 | ||
| 11 | 57631-97JL0 Push Rod
SKU: 57631-97JL0 Weight: 0.250000 Brand: Price: $ 9.41 |
Push Rod | 1 | $ 9.41 | ||
| 12-1 | 09181-12017 Washer (12x20x1.6)
SKU: 09181-12017 Weight: 0.100000 Brand: Price: $ 2.71 |
Washer (12x20x1.6) | 1 | $ 2.71 | Prop Shaft Rev Thrust | |
| 12-2 | 09181-12018 Washer (12x20x1.7) (NLA)
SKU: 09181-12018 Weight: 0.100000 Brand: Price: $ 2.04 |
Washer (12x20x1.7) (NLA) | 1 | $ 2.04 | Prop Shaft Rev Thrust | |
| 12-3 | 09181-12019 Washer (12x20x1.8) (NLA)
SKU: 09181-12019 Weight: 0.100000 Brand: Price: $ 2.04 |
Washer (12x20x1.8) (NLA) | 1 | $ 2.04 | Prop Shaft Rev Thrust | |
| 12-4 | 09181-12020 Washer (12x20x1.9) (NLA)
SKU: 09181-12020 Weight: 0.100000 Brand: Price: $ 2.04 |
Washer (12x20x1.9) (NLA) | 1 | $ 2.04 | Prop Shaft Rev Thrust | |
| 12-5 | 09181-12021 Washer (12x20x2.0) (NLA)
SKU: 09181-12021 Weight: 0.100000 Brand: Price: $ 2.04 |
Washer (12x20x2.0) (NLA) | 1 | $ 2.04 | Prop Shaft Rev Thrust |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
