Suzuki DF 15A Parts Listings - 2020
S/N 01504F-040001 to 01504F-04XXXX

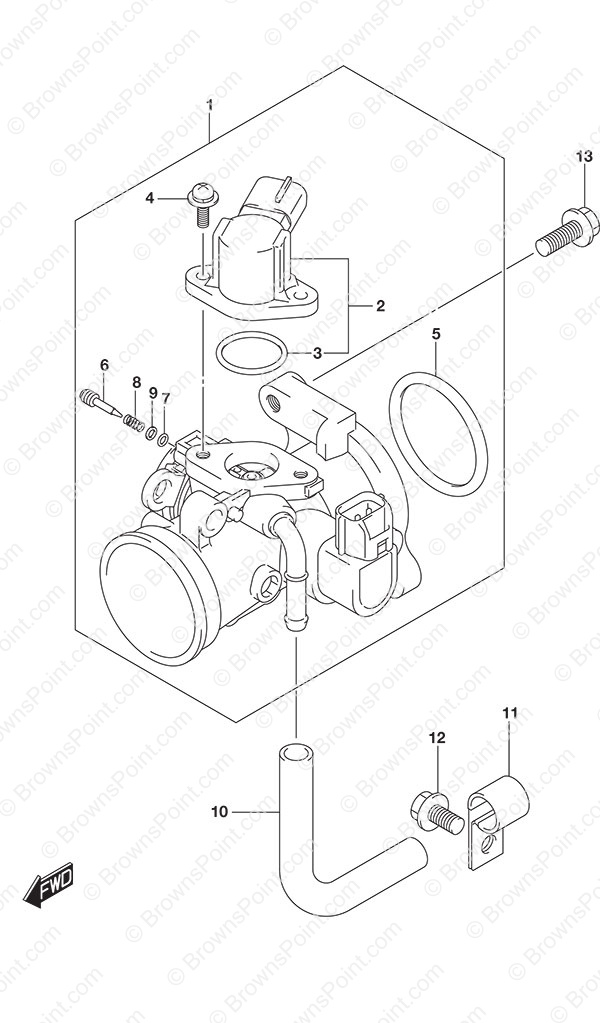

Fig. 163 - Throttle Body
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13300-89L01 Throttle Body Assembly
SKU: 13300-89L01 Weight: 1.000000 Brand: Price: $ 465.17 |
Throttle Body Assembly | 1 | $ 465.17 | ||
| 2 | 13420-16HA1 Solenoid Assembly
SKU: 13420-16HA1 Weight: 0.250000 Brand: Price: $ 112.74 |
Solenoid Assembly | 1 | $ 112.74 | ||
| 3 | 13425-33G00 O-Ring
SKU: 13425-33G00 Weight: 0.250000 Brand: Price: $ 0.00 |
O-Ring | 1 | $ 0.00 | ||
| 4 | 13326-89L00 Screw
SKU: 13326-89L00 Weight: 0.250000 Brand: Price: $ 3.83 |
Screw | 2 | $ 3.83 | ||
| 5 | 13421-89L00 Flange O-Ring
SKU: 13421-89L00 Weight: 0.250000 Brand: Price: $ 25.74 |
Flange O-Ring | 1 | $ 25.74 | ||
| 6 | 13279-13G10 Adjuster
SKU: 13279-13G10 Weight: 0.060000 Brand: Price: $ 0.00 |
Adjuster | 1 | $ 0.00 | ||
| 7 | 13295-29900 O-Ring
SKU: 13295-29900 Weight: 0.060000 Brand: Price: $ 0.00 |
O-Ring | 1 | $ 0.00 | ||
| 8 | 13365-89L00 Spring
SKU: 13365-89L00 Weight: 0.060000 Brand: Price: $ 0.00 |
Spring | 1 | $ 0.00 | ||
| 9 | 13606-47A00 Washer
SKU: 13606-47A00 Weight: 0.060000 Brand: Price: $ 0.00 |
Washer | 1 | $ 0.00 | ||
| 10 | 15211-91J00-130 IAC Hose (NLA)
SKU: 15211-91J00-130 Weight: 0.250000 Brand: Price: $ 1.93 |
IAC Hose (NLA) | 1 | $ 1.93 | ||
| 11 | 09403-12417 CLAMP
SKU: 09403-12417 Weight: 0.000000 Brand: Price: $ 4.39 |
CLAMP | 1 | $ 4.39 | ||
| 12 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 1 | $ 1.73 | ||
| 13 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 2 | $ 1.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
