Suzuki DF 6A Parts Listings - 2020
S/N 00603F-040001 to 00603F-04XXXX

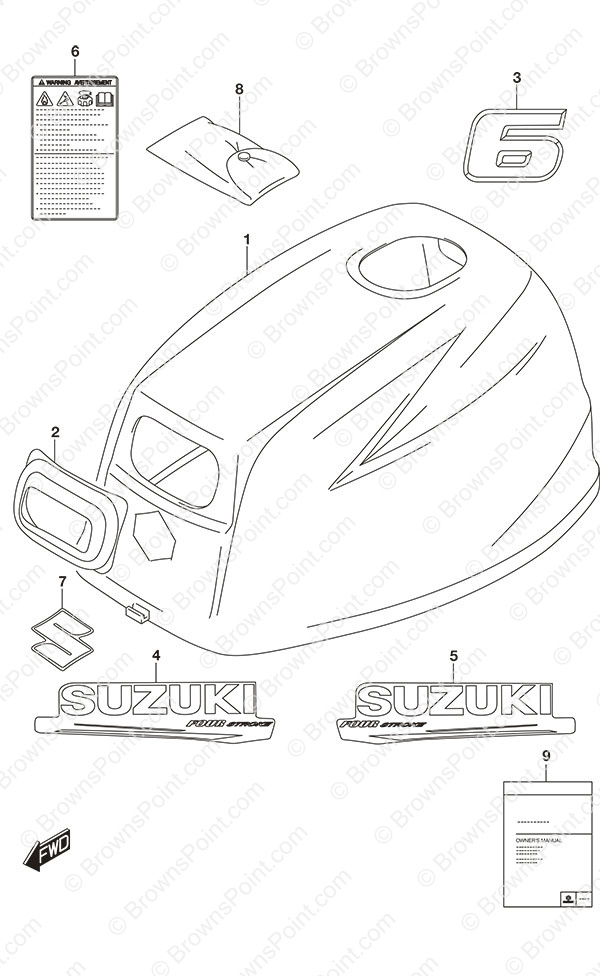

Fig. 420 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61411-97L00-YAY Engine Upper Cover
SKU: 61411-97L00-YAY Weight: 5.000000 Brand: Price: $ 70.15 |
Engine Upper Cover | 1 | $ 70.15 | Black | |
| 1-2 | 61411-97L00-Y5S Engine Upper Cover
SKU: 61411-97L00-Y5S Weight: 5.000000 Brand: Price: $ 86.23 |
Engine Upper Cover | 1 | $ 86.23 | White | |
| 2 | 61622-97L00 Recoil Starter Seal
SKU: 61622-97L00 Weight: 0.250000 Brand: Price: $ 9.87 |
Recoil Starter Seal | 1 | $ 9.87 | ||
| 3-1 | 61435-97L20-YAY Rear Emblem Mark (6)
SKU: 61435-97L20-YAY Weight: 0.060000 Brand: Price: $ 2.42 |
Rear Emblem Mark (6) | 1 | $ 2.42 | Black | |
| 3-2 | 61435-97L20-Y5S Rear Emblem Mark (6)
SKU: 61435-97L20-Y5S Weight: 0.060000 Brand: Price: $ 2.42 |
Rear Emblem Mark (6) | 1 | $ 2.42 | White | |
| 4-1 | 61443-97L01-YAY Engine Cover Starboard Stripe
SKU: 61443-97L01-YAY Weight: 0.250000 Brand: Price: $ 8.17 |
Engine Cover Starboard Stripe | 1 | $ 8.17 | Black | |
| 4-2 | 61443-97L01-Y5S Engine Cover Starboard Stripe
SKU: 61443-97L01-Y5S Weight: 0.250000 Brand: Price: $ 8.46 |
Engine Cover Starboard Stripe | 1 | $ 8.46 | White | |
| 5-1 | 61453-97L01-YAY Engine Cover Port Stripe
SKU: 61453-97L01-YAY Weight: 0.250000 Brand: Price: $ 8.46 |
Engine Cover Port Stripe | 1 | $ 8.46 | Black | |
| 5-2 | 61453-97L01-Y5S Engine Cover Port Stripe
SKU: 61453-97L01-Y5S Weight: 0.250000 Brand: Price: $ 8.46 |
Engine Cover Port Stripe | 1 | $ 8.46 | White | |
| 6 | 61458-97J70 Engine Cover Label
SKU: 61458-97J70 Weight: 0.125000 Brand: Price: $ 3.21 |
Engine Cover Label | 1 | $ 3.21 | ||
| 7 | 77811-54GB0-0PG Chrome S Emblem
SKU: 77811-54GB0-0PG Weight: 0.250000 Brand: Price: $ 13.29 |
Chrome S Emblem | 1 | $ 13.29 | ||
| 8 | 59800-97L00 Tool Set
SKU: 59800-97L00 Weight: 1.000000 Brand: Price: $ 30.29 |
Tool Set | 1 | $ 30.29 | ||
| 9 | 99011-97L60-03B Owners Manual DF4A/DF6A - 2020
SKU: 99011-97L60-03B Weight: 0.500000 Brand: Price: $ 20.00 |
Owners Manual DF4A/DF6A - 2020 | 1 | $ 20.00 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
