Suzuki DF 4A Parts Listings - 2020
S/N 00403F-040001 to 00403F-04XXXX

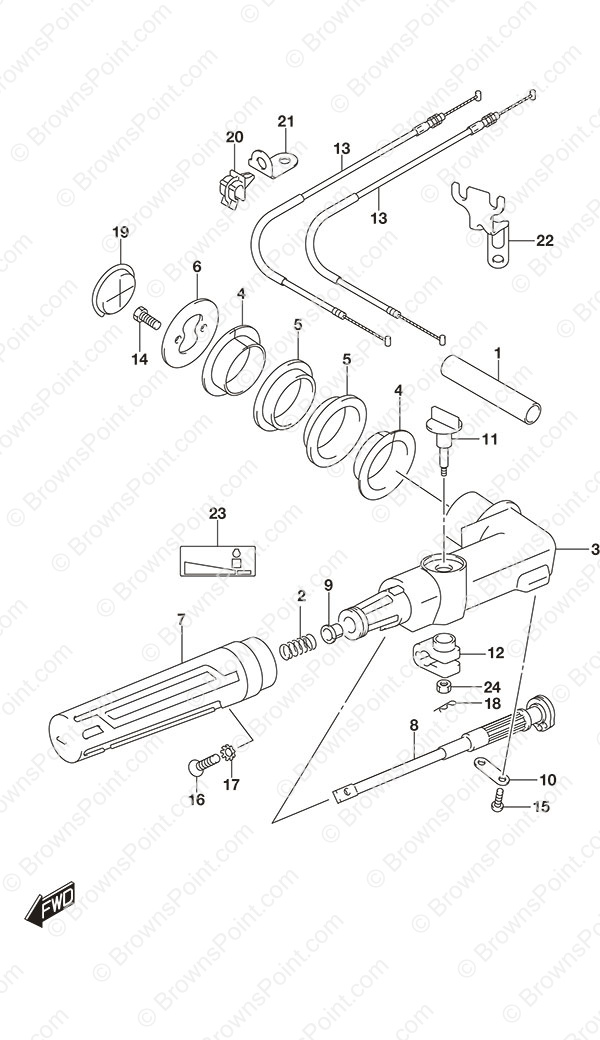

Fig. 444 - Tiller Handle
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33833-97L50 Protector
SKU: 33833-97L50 Weight: 0.060000 Brand: Price: $ 2.49 |
Protector | 1 | $ 2.49 | ||
| 2 | 09440-12027 Spring
SKU: 09440-12027 Weight: 0.060000 Brand: Price: $ 1.39 |
Spring | 1 | $ 1.39 | ||
| 3 | 63111-97L00-YAY Tiller Handle
SKU: 63111-97L00-YAY Weight: 2.000000 Brand: Price: $ 69.88 |
Tiller Handle | 1 | $ 69.88 | ||
| 4 | 63115-97L00 Tiller Handle Bushing
SKU: 63115-97L00 Weight: 0.060000 Brand: Price: $ 2.79 |
Tiller Handle Bushing | 2 | $ 2.79 | ||
| 5 | 63116-97L00 Tiller Handle Mount
SKU: 63116-97L00 Weight: 0.060000 Brand: Price: $ 3.64 |
Tiller Handle Mount | 2 | $ 3.64 | ||
| 6 | 63125-97L00 Tiller Handle Stopper
SKU: 63125-97L00 Weight: 0.060000 Brand: Price: $ 9.53 |
Tiller Handle Stopper | 1 | $ 9.53 | ||
| 7 | 63210-94L01 Handle Grip
SKU: 63210-94L01 Weight: 1.500000 Brand: Price: $ 45.09 |
Handle Grip | 1 | $ 45.09 | ||
| 8 | 63220-97L00 Handle Rod
SKU: 63220-97L00 Weight: 0.500000 Brand: Price: $ 17.68 |
Handle Rod | 1 | $ 17.68 | ||
| 9 | 63225-93200 Handle Rod Bushing
SKU: 63225-93200 Weight: 0.060000 Brand: Price: $ 4.05 |
Handle Rod Bushing | 1 | $ 4.05 | ||
| 10 | 63228-97L00 Handle Rod Holder
SKU: 63228-97L00 Weight: 0.060000 Brand: Price: $ 1.85 |
Handle Rod Holder | 1 | $ 1.85 | ||
| 11 | 63240-95L00 Throttle Adjust Knob
SKU: 63240-95L00 Weight: 0.125000 Brand: Price: $ 10.78 |
Throttle Adjust Knob | 1 | $ 10.78 | ||
| 12 | 63241-95L02 Handle Grip Adjuster
SKU: 63241-95L02 Weight: 0.125000 Brand: Price: $ 5.33 |
Handle Grip Adjuster | 1 | $ 5.33 | ||
| 13 | 63610-97L00 Throttle Cable Assembly
SKU: 63610-97L00 Weight: 0.500000 Brand: Price: $ 15.84 |
Throttle Cable Assembly | 2 | $ 15.84 | ||
| 14 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 2 | $ 2.60 | ||
| 15 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 16 | 09126-06015 Screw (6x23)
SKU: 09126-06015 Weight: 0.060000 Brand: Price: $ 2.62 |
Screw (6x23) | 1 | $ 2.62 | ||
| 17 | 09163-06001 Lock Washer (6.4x12x0.5)
SKU: 09163-06001 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (6.4x12x0.5) | 1 | $ 1.49 | ||
| 18 | 09385-04004 Snap Pin
SKU: 09385-04004 Weight: 0.100000 Brand: Price: $ 1.74 |
Snap Pin | 1 | $ 1.74 | ||
| 19 | 09250-35006 Cap
SKU: 09250-35006 Weight: 0.060000 Brand: Price: $ 4.69 |
Cap | 1 | $ 4.69 | ||
| 21 | 63615-97L00 Throttle Bracket
SKU: 63615-97L00 Weight: 0.125000 Brand: Price: $ 2.34 |
Throttle Bracket | 1 | $ 2.34 | ||
| 22 | 19184-97L00 Throttle Cable Bracket
SKU: 19184-97L00 Weight: 0.125000 Brand: Price: $ 5.96 |
Throttle Cable Bracket | 1 | $ 5.96 | ||
| 23 | 69714-97L00 Handle Grip Mark
SKU: 69714-97L00 Weight: 0.060000 Brand: Price: $ 0.93 |
Handle Grip Mark | 1 | $ 0.93 | ||
| 24 | 29141-93J00 Nut (6mm)
SKU: 29141-93J00 Weight: 0.060000 Brand: Price: $ 1.80 |
Nut (6mm) | 1 | $ 1.80 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
