Suzuki DF 50A Parts Listings - 2013
S/N 05003F-310001 to 05003F-31XXXX

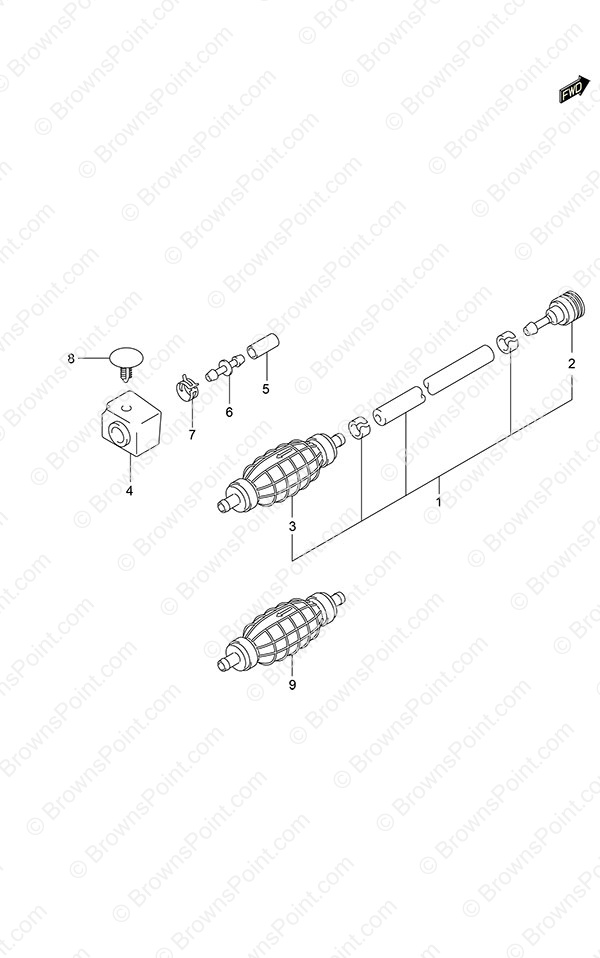

Fig. 52 - Fuel Hose
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 65700-88L06 Fuel Hose
SKU: 65700-88L06 Weight: 2.000000 Brand: Price: $ 217.28 |
Fuel Hose | 1 | $ 217.28 | ||
| 2 | 65750-95501 Fuel Hose Connector (13mm)
SKU: 65750-95501 Weight: 0.120000 Brand: Price: $ 32.61 |
Fuel Hose Connector (13mm) | 1 | $ 32.61 | ||
| 3 | 65770-90J04 Squeeze Pump
SKU: 65770-90J04 Weight: 0.250000 Brand: Price: $ 157.07 |
Squeeze Pump | 1 | $ 157.07 | ||
| 4 | 61188-88L00 Fuel Hose Grommet
SKU: 61188-88L00 Weight: 0.250000 Brand: Price: $ 8.07 |
Fuel Hose Grommet | 1 | $ 8.07 | ||
| 5 | 09251-07003 Cap
SKU: 09251-07003 Weight: 0.250000 Brand: Price: $ 2.20 |
Cap | 1 | $ 2.20 | ||
| 6 | 09367-08001 Hose Joint
SKU: 09367-08001 Weight: 0.060000 Brand: Price: $ 3.61 |
Hose Joint | 1 | $ 3.61 | ||
| 7 | 09401-11423 Clip
SKU: 09401-11423 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 1 | $ 2.09 | ||
| 8 | 09409-05312-6GS Clip
SKU: 09409-05312-6GS Weight: 0.250000 Brand: Price: $ 2.07 |
Clip | 1 | $ 2.07 | ||
| 9 | 65770-90J04 Squeeze Pump
SKU: 65770-90J04 Weight: 0.250000 Brand: Price: $ 157.07 |
Squeeze Pump | 1 | $ 157.07 | wo/Fuel Hose |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
