Suzuki DF 60 Parts Listings - 2009
S/N 06001F-980001 to 06001F-98XXXX

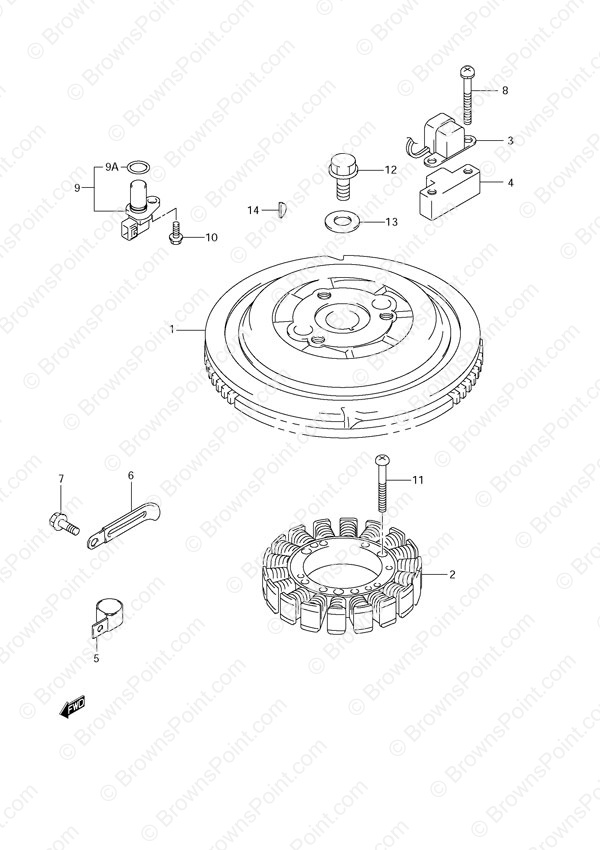

Fig. 30 - Magneto
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32102-99E10 Flywheel (NLA)
SKU: 32102-99E10 Weight: 10.000000 Brand: Price: $ 868.89 |
Flywheel (NLA) | 1 | $ 868.89 | ||
| 2 | 32120-99E10 Battery Charge Coil
SKU: 32120-99E10 Weight: 0.100000 Brand: Price: $ 504.41 |
Battery Charge Coil | 1 | $ 504.41 | ||
| 3 | 32160-87L01 CKP/Ignition Timimg Coil
SKU: 32160-87L01 Weight: 0.120000 Brand: Price: $ 96.82 |
CKP/Ignition Timimg Coil | 1 | $ 96.82 | ||
| 4 | 32154-99E00 Spacer
SKU: 32154-99E00 Weight: 0.100000 Brand: Price: $ 15.72 |
Spacer | 1 | $ 15.72 | ||
| 5 | 09403-08328 Clamp (NLA)
SKU: 09403-08328 Weight: 0.100000 Brand: Price: $ 1.74 |
Clamp (NLA) | 2 | $ 1.74 | ||
| 6 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 2 | $ 1.57 | ||
| 7 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 9 | 33220-84G00 CKP Sensor Assembly
SKU: 33220-84G00 Weight: 0.080000 Brand: Price: $ 118.86 |
CKP Sensor Assembly | 1 | $ 118.86 | ||
| 9A | 33221-42F00 O-Ring
SKU: 33221-42F00 Weight: 0.100000 Brand: Price: $ 6.88 |
O-Ring | 1 | $ 6.88 | ||
| 10 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 11 | 02112-06307 SCREW, 6X30 CRO
SKU: 02112-06307 Weight: 0.125000 Brand: Price: $ 1.97 |
SCREW, 6X30 CRO | 3 | $ 1.97 | ||
| 12 | 09103-16001 Flywheel Bolt (16x40)
SKU: 09103-16001 Weight: 0.250000 Brand: Price: $ 7.63 |
Flywheel Bolt (16x40) | 1 | $ 7.63 | ||
| 13 | 09160-16046 Washer (16.5x36x4.5) (NLA)
SKU: 09160-16046 Weight: 0.100000 Brand: Price: $ 4.13 |
Washer (16.5x36x4.5) (NLA) | 1 | $ 4.13 | ||
| 14 | 08341-31059 Woodruff Key 5mm
SKU: 08341-31059 Weight: 0.060000 Brand: Price: $ 2.52 |
Woodruff Key 5mm | 1 | $ 2.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
