Suzuki DF 60 Parts Listings - 2008
S/N 06001F-880001 to 06001F-88XXXX

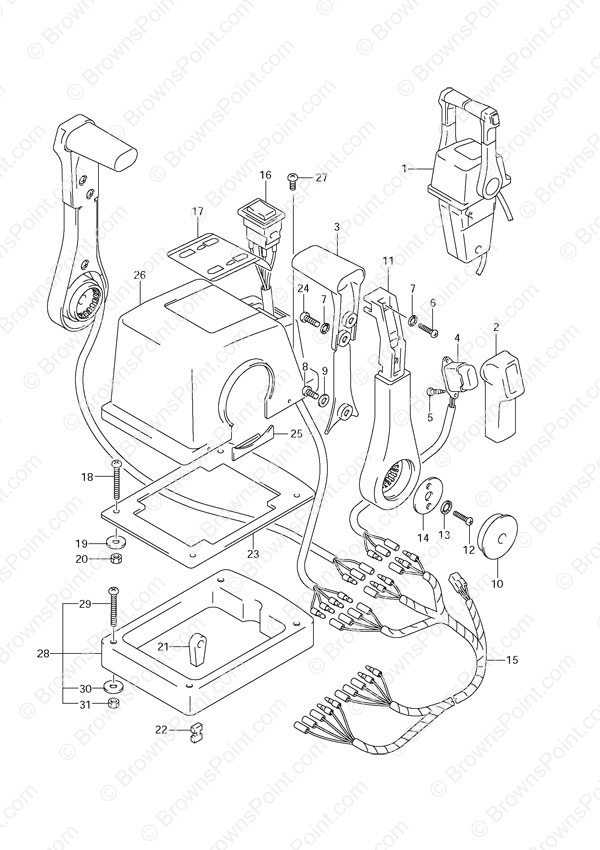

Fig. 57 - Opt: Top Mount Dual (1)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 67200-88L12 Duel Binnacle Top Mount Control
SKU: 67200-88L12 Weight: 0.000000 Brand: Price: $ 963.99 |
Duel Binnacle Top Mount Control | 1 | $ 963.99 | ||
| 2 | 67261-93J00 Grip No 1
SKU: 67261-93J00 Weight: 0.060000 Brand: Price: $ 12.55 |
Grip No 1 | 2 | $ 12.55 | ||
| 3 | 67263-93J00 Grip No 2
SKU: 67263-93J00 Weight: 0.120000 Brand: Price: $ 17.97 |
Grip No 2 | 2 | $ 17.97 | ||
| 4 | 37850-93J10 PTT Switch Assembly
SKU: 37850-93J10 Weight: 0.120000 Brand: Price: $ 110.29 |
PTT Switch Assembly | 2 | $ 110.29 | ||
| 5 | 67295-92E10 Screw (3x12)
SKU: 67295-92E10 Weight: 0.060000 Brand: Price: $ 2.49 |
Screw (3x12) | 4 | $ 2.49 | ||
| 6 | 67296-88D10 Screw (5x16)
SKU: 67296-88D10 Weight: 0.060000 Brand: Price: $ 2.44 |
Screw (5x16) | 2 | $ 2.44 | ||
| 7 | 67288-92E20 Washer
SKU: 67288-92E20 Weight: 0.060000 Brand: Price: $ 2.49 |
Washer | 6 | $ 2.49 | ||
| 8 | 67296-92E70 Screw
SKU: 67296-92E70 Weight: 0.060000 Brand: Price: $ 2.32 |
Screw | 2 | $ 2.32 | ||
| 9 | 67288-92E40 Washer
SKU: 67288-92E40 Weight: 0.100000 Brand: Price: $ 2.49 |
Washer | 2 | $ 2.49 | ||
| 10 | 67257-92E00 Lever Cap
SKU: 67257-92E00 Weight: 0.200000 Brand: Price: $ 9.34 |
Lever Cap | 2 | $ 9.34 | ||
| 11 | 67251-93J00 Handle Lever
SKU: 67251-93J00 Weight: 1.000000 Brand: Price: $ 118.36 |
Handle Lever | 2 | $ 118.36 | ||
| 12 | 67296-92E60 Screw
SKU: 67296-92E60 Weight: 0.100000 Brand: Price: $ 3.13 |
Screw | 4 | $ 3.13 | ||
| 13 | 67288-92E30 Washer
SKU: 67288-92E30 Weight: 0.060000 Brand: Price: $ 2.49 |
Washer | 4 | $ 2.49 | ||
| 14 | 67253-92E00 Washer
SKU: 67253-92E00 Weight: 0.060000 Brand: Price: $ 5.38 |
Washer | 2 | $ 5.38 | ||
| 15 | 36890-93J10 Wire Harness
SKU: 36890-93J10 Weight: 1.000000 Brand: Price: $ 124.82 |
Wire Harness | 1 | $ 124.82 | ||
| 16 | 37220-92E00 Mode Changing Switch Assembly
SKU: 37220-92E00 Weight: 0.120000 Brand: Price: $ 123.17 |
Mode Changing Switch Assembly | 1 | $ 123.17 | ||
| 17 | 67282-93J00 Decal
SKU: 67282-93J00 Weight: 0.100000 Brand: Price: $ 18.32 |
Decal | 1 | $ 18.32 | ||
| 18 | 67296-92E30 Screw
SKU: 67296-92E30 Weight: 0.060000 Brand: Price: $ 3.13 |
Screw | 4 | $ 3.13 | ||
| 19 | 09160-05024 Washer (5.5x16x1.5)
SKU: 09160-05024 Weight: 0.060000 Brand: Price: $ 1.54 |
Washer (5.5x16x1.5) | 4 | $ 1.54 | ||
| 20 | 67287-92E00 Nut
SKU: 67287-92E00 Weight: 0.125000 Brand: Price: $ 2.40 |
Nut | 4 | $ 2.40 | ||
| 21 | 67275-95600 Cable End
SKU: 67275-95600 Weight: 0.060000 Brand: Price: $ 8.02 |
Cable End | 4 | $ 8.02 | ||
| 22 | 67273-95600 Spacer
SKU: 67273-95600 Weight: 0.060000 Brand: Price: $ 3.88 |
Spacer | 2 | $ 3.88 | ||
| 23 | 67273-92E10 Grommet (NLA)
SKU: 67273-92E10 Weight: 0.200000 Brand: Price: $ 20.37 |
Grommet (NLA) | 1 | $ 20.37 | ||
| 24 | 67295-92E00 Screw
SKU: 67295-92E00 Weight: 0.060000 Brand: Price: $ 2.49 |
Screw | 4 | $ 2.49 | ||
| 25 | 67271-92E00 Cover
SKU: 67271-92E00 Weight: 0.060000 Brand: Price: $ 7.59 |
Cover | 2 | $ 7.59 | ||
| 26 | 67211-93J10 Top Binnacle Cover
SKU: 67211-93J10 Weight: 1.000000 Brand: Price: $ 61.29 |
Top Binnacle Cover | 1 | $ 61.29 | ||
| 27 | 67296-92E70 Screw
SKU: 67296-92E70 Weight: 0.060000 Brand: Price: $ 2.32 |
Screw | 2 | $ 2.32 | ||
| 28 | 67500-93J10 Dual Binnacle Box Spacer
SKU: 67500-93J10 Weight: 0.380000 Brand: Price: $ 18.18 |
Dual Binnacle Box Spacer | 1 | $ 18.18 | ||
| 29 | 09125-05135 Screw (5x65)
SKU: 09125-05135 Weight: 0.125000 Brand: Price: $ 3.24 |
Screw (5x65) | 4 | $ 3.24 | ||
| 30 | 09160-05029 Washer (5.5x10x0.8)
SKU: 09160-05029 Weight: 0.060000 Brand: Price: $ 1.70 |
Washer (5.5x10x0.8) | 4 | $ 1.70 | ||
| 31 | 09140-05005 Nut
SKU: 09140-05005 Weight: 0.060000 Brand: Price: $ 2.65 |
Nut | 4 | $ 2.65 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
