Suzuki DF 60 Parts Listings - 2005
S/N 06001F-510001 to 06001F-51XXXX

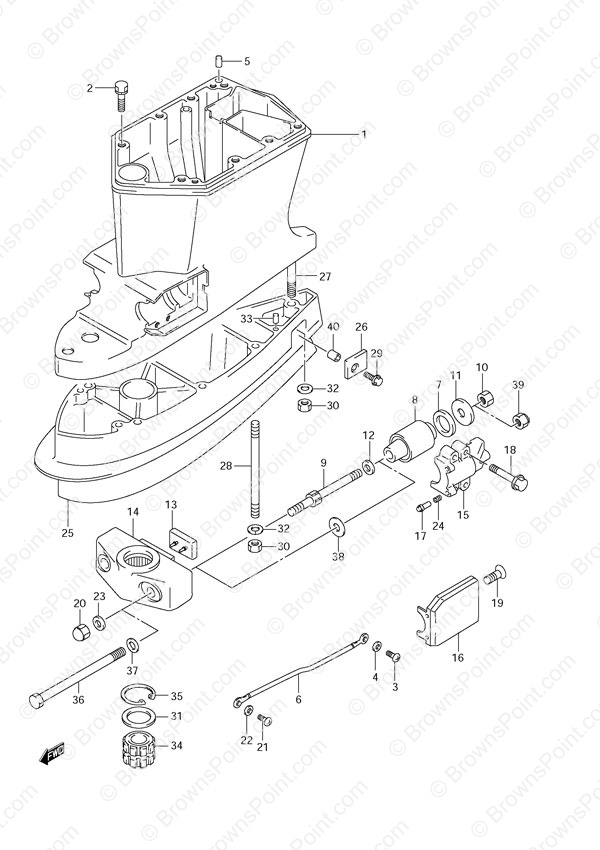

Fig. 42 - Driveshaft Housing
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 52111-99E03-0EP Driveshaft Housing (NLA)
SKU: 52111-99E03-0EP Weight: 10.000000 Brand: Price: $ 628.74 |
Driveshaft Housing (NLA) | 1 | $ 628.74 | S/N 510001 to 510598 | |
| 1-2 | 52111-99E10-0EP Driveshaft Housing
SKU: 52111-99E10-0EP Weight: 1.000000 Brand: Price: $ 644.41 |
Driveshaft Housing | 1 | $ 644.41 | S/N 510599 to 51XXXX | |
| 2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 3 | $ 6.81 | ||
| 3 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 | ||
| 5 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 6 | 36894-95201 Wire Lead (L:165)
SKU: 36894-95201 Weight: 0.060000 Brand: Price: $ 12.07 |
Wire Lead (L:165) | 1 | $ 12.07 | Mount Bracket to Housing | |
| 7 | 54121-87D01 Damper
SKU: 54121-87D01 Weight: 0.250000 Brand: Price: $ 4.41 |
Damper | 2 | $ 4.41 | ||
| 8 | 54160-87E11 Lower Mount
SKU: 54160-87E11 Weight: 1.000000 Brand: Price: $ 88.92 |
Lower Mount | 2 | $ 88.92 | ||
| 9 | 54166-87E00 Lower Mount Bolt (NLA)
SKU: 54166-87E00 Weight: 0.100000 Brand: Price: $ 22.90 |
Lower Mount Bolt (NLA) | 2 | $ 22.90 | Use Fig# 41 | |
| 11-1 | 09160-12065 Washer (12x40x3)
SKU: 09160-12065 Weight: 0.100000 Brand: Price: $ 5.08 |
Washer (12x40x3) | 2 | $ 5.08 | S/N 510001 to 510197 | |
| 11-2 | 09160-12112 Washer (12x40x3.0)
SKU: 09160-12112 Weight: 0.060000 Brand: Price: $ 5.18 |
Washer (12x40x3.0) | 2 | $ 5.18 | S/N 510198 to 51XXXX | |
| 13 | 54151-94400 Lower Thrust Mount (NLA)
SKU: 54151-94400 Weight: 1.000000 Brand: Price: $ 3.99 |
Lower Thrust Mount (NLA) | 1 | $ 3.99 | ||
| 14 | 54211-87E03-0EP Lower Mount Bracket (NLA)
SKU: 54211-87E03-0EP Weight: 10.000000 Brand: Price: $ 100.47 |
Lower Mount Bracket (NLA) | 1 | $ 100.47 | Use Ref# 41 | |
| 15-1 | 54221-87E01-0EP Lower Mount Cover
SKU: 54221-87E01-0EP Weight: 10.000000 Brand: Price: $ 66.01 |
Lower Mount Cover | 2 | $ 66.01 | S/N 510001 to 510598 | |
| 15-2 | 54221-99E10-0EP Lower Mount Cover
SKU: 54221-99E10-0EP Weight: 1.000000 Brand: Price: $ 60.97 |
Lower Mount Cover | 2 | $ 60.97 | S/N 510599 to 51XXXX | |
| 16 | 54222-87E02-0EP Lower Mount Cap (NLA)
SKU: 54222-87E02-0EP Weight: 0.100000 Brand: Price: $ 48.85 |
Lower Mount Cap (NLA) | 2 | $ 48.85 | S/N 510001 to 510598 | |
| 17 | 54224-87E00 Pin (NLA)
SKU: 54224-87E00 Weight: 0.100000 Brand: Price: $ 1.58 |
Pin (NLA) | 4 | $ 1.58 | S/N 510001 to 510598 | |
| 18-1 | 09117-08056-XC0 Bolt (8x40)
SKU: 09117-08056-XC0 Weight: 0.060000 Brand: Price: $ 7.86 |
Bolt (8x40) | 8 | $ 7.86 | S/N 510001 to 510598 | |
| 18-2 | 09116-10176 Bolt (10x44)
SKU: 09116-10176 Weight: 0.080000 Brand: Price: $ 6.81 |
Bolt (10x44) | 4 | $ 6.81 | S/N 510599 to 51XXXX | |
| 19 | 09126-06008 Screw (6x16)
SKU: 09126-06008 Weight: 0.060000 Brand: Price: $ 2.15 |
Screw (6x16) | 2 | $ 2.15 | S/N 510001 to 510598 | |
| 21 | 09125-05050 Screw (5x8)
SKU: 09125-05050 Weight: 0.060000 Brand: Price: $ 1.88 |
Screw (5x8) | 1 | $ 1.88 | ||
| 22 | 09161-05114 Washer (5.2x11x1.0)
SKU: 09161-05114 Weight: 0.125000 Brand: Price: $ 2.90 |
Washer (5.2x11x1.0) | 1 | $ 2.90 | ||
| 24 | 09440-07066 Spring (NLA)
SKU: 09440-07066 Weight: 0.100000 Brand: Price: $ 1.61 |
Spring (NLA) | 4 | $ 1.61 | S/N 510001 to 510598 | |
| 36 | 54166-99E01 Lower Mount Bolt
SKU: 54166-99E01 Weight: 0.100000 Brand: Price: $ 34.67 |
Lower Mount Bolt | 2 | $ 34.67 | ||
| 37-1 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 2 | $ 1.80 | S/N 510001 to 510197 | |
| 37-2 | 54114-90J10 Washer
SKU: 54114-90J10 Weight: 0.060000 Brand: Price: $ 6.03 |
Washer | 2 | $ 6.03 | S/N 510198 to 51XXXX | |
| 38 | 09160-12113 Washer (12.5x30x2.5)
SKU: 09160-12113 Weight: 0.060000 Brand: Price: $ 3.54 |
Washer (12.5x30x2.5) | 2 | $ 3.54 | ||
| 39 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 41 | 54200-87842-0EP Lower Mount Bracket Set
SKU: 54200-87842-0EP Weight: 0.100000 Brand: Price: $ 193.14 |
Lower Mount Bracket Set | 1 | $ 193.14 | Replaces Ref# 9 14 Includes: Lower Mount Bracket Lower Mount Bolt Lower Mount Washer Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
