Suzuki DF 60 Parts Listings - 2005
S/N 06001F-510001 to 06001F-51XXXX

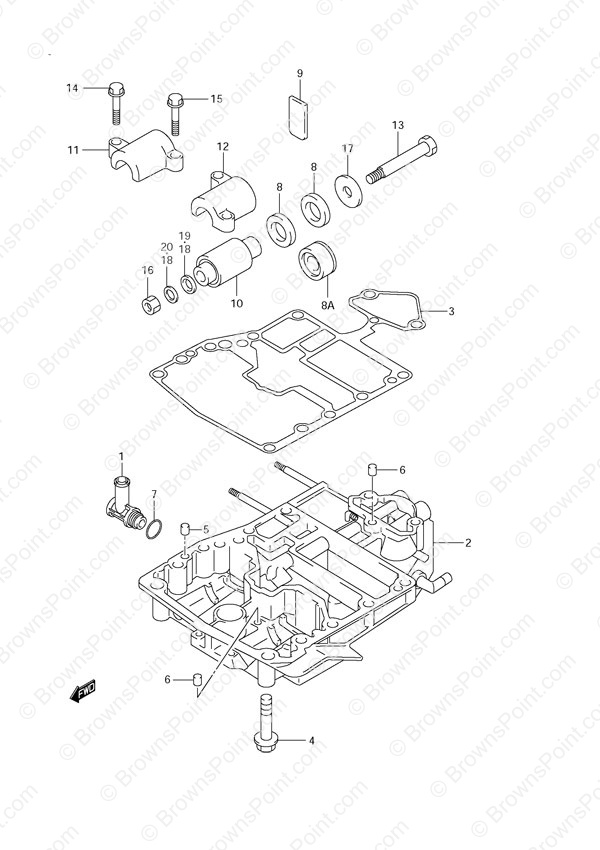

Fig. 41 - Engine Holder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17573-89J02 Water Return Hose Pipe
SKU: 17573-89J02 Weight: 0.080000 Brand: Price: $ 8.35 |
Water Return Hose Pipe | 1 | $ 8.35 | ||
| 2 | 51110-99802-0EP Engine Holder Set
SKU: 51110-99802-0EP Weight: 10.000000 Brand: Price: $ 626.34 |
Engine Holder Set | 1 | $ 626.34 | ||
| 3 | 51211-99E00 Engine Holder Gasket
SKU: 51211-99E00 Weight: 0.200000 Brand: Price: $ 42.91 |
Engine Holder Gasket | 1 | $ 42.91 | ||
| 4 | 09117-10039 Bolt (10x80)
SKU: 09117-10039 Weight: 0.120000 Brand: Price: $ 11.20 |
Bolt (10x80) | 2 | $ 11.20 | ||
| 5 | 09206-08001 Knock Pin (8x11)
SKU: 09206-08001 Weight: 0.060000 Brand: Price: $ 1.78 |
Knock Pin (8x11) | 2 | $ 1.78 | ||
| 6 | 04211-09149 PIN 9X14
SKU: 04211-09149 Weight: 0.100000 Brand: Price: $ 1.66 |
PIN 9X14 | 2 | $ 1.66 | ||
| 7 | 09280-20006 O-Ring
SKU: 09280-20006 Weight: 0.060000 Brand: Price: $ 1.78 |
O-Ring | 1 | $ 1.78 | ||
| 8A | 54120-99E01 Upper Thrust Stopper (NLA)
SKU: 54120-99E01 Weight: 0.100000 Brand: Price: $ 8.95 |
Upper Thrust Stopper (NLA) | 2 | $ 8.95 | ||
| 9 | 54125-99E00 Upper Thrust Reverse Mount
SKU: 54125-99E00 Weight: 0.125000 Brand: Price: $ 4.11 |
Upper Thrust Reverse Mount | 2 | $ 4.11 | ||
| 11 | 54148-99E01-0EP Stbd Upper Mount Cover
SKU: 54148-99E01-0EP Weight: 0.100000 Brand: Price: $ 32.12 |
Stbd Upper Mount Cover | 1 | $ 32.12 | ||
| 12 | 54149-99E01-0EP Port Upper Mount Cover
SKU: 54149-99E01-0EP Weight: 0.100000 Brand: Price: $ 32.12 |
Port Upper Mount Cover | 1 | $ 32.12 | ||
| 13 | 54112-99E01 Upper Mount Bolt
SKU: 54112-99E01 Weight: 0.100000 Brand: Price: $ 24.27 |
Upper Mount Bolt | 2 | $ 24.27 | ||
| 14 | 09116-08128 Bolt (8x40)
SKU: 09116-08128 Weight: 0.125000 Brand: Price: $ 4.11 |
Bolt (8x40) | 2 | $ 4.11 | ||
| 15 | 09116-08122 Bolt (8x30)
SKU: 09116-08122 Weight: 0.060000 Brand: Price: $ 4.66 |
Bolt (8x30) | 2 | $ 4.66 | ||
| 16 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 2 | $ 5.04 | ||
| 18 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | S/N 510001 to 510197 | |
| 19 | 54113-90J00 Upper Mount Bolt Washer
SKU: 54113-90J00 Weight: 0.060000 Brand: Price: $ 8.33 |
Upper Mount Bolt Washer | 2 | $ 8.33 | S/N 510198 to 51XXXX | |
| 20 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 2 | $ 3.79 | S/N 510198 to 51XXXX |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
