Suzuki DF 60 Parts Listings - 2005
S/N 06001F-510001 to 06001F-51XXXX

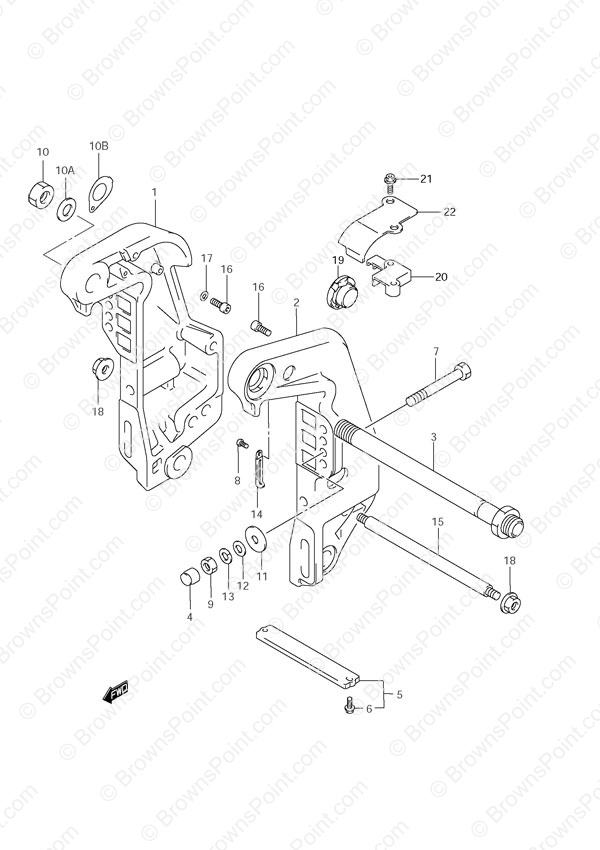

Fig. 35 - Clamp Bracket
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 41111-90J12-0EP Starboard Clamp Bracket (NLA)
SKU: 41111-90J12-0EP Weight: 10.000000 Brand: Price: $ 348.46 |
Starboard Clamp Bracket (NLA) | 1 | $ 348.46 | ||
| 2 | 41121-90J13-0EP Port Clamp Bracket (NLA)
SKU: 41121-90J13-0EP Weight: 10.000000 Brand: Price: $ 348.46 |
Port Clamp Bracket (NLA) | 1 | $ 348.46 | ||
| 3 | 41130-95543 Clamp Bracket Shaft
SKU: 41130-95543 Weight: 2.000000 Brand: Price: $ 307.20 |
Clamp Bracket Shaft | 1 | $ 307.20 | ||
| 4 | 41153-94500 Transom Bolt Cap
SKU: 41153-94500 Weight: 0.060000 Brand: Price: $ 2.96 |
Transom Bolt Cap | 4 | $ 2.96 | ||
| 5 | 55320-94900 Protection Anode Set
SKU: 55320-94900 Weight: 0.500000 Brand: Price: $ 43.30 |
Protection Anode Set | 1 | $ 43.30 | ||
| 6 | 09116-06121 Bolt (6x25)
SKU: 09116-06121 Weight: 0.060000 Brand: Price: $ 2.72 |
Bolt (6x25) | 2 | $ 2.72 | ||
| 7-1 | 09100-12045 Bolt (12x115) (NLA)
SKU: 09100-12045 Weight: 0.250000 Brand: Price: $ 8.44 |
Bolt (12x115) (NLA) | 4 | $ 8.44 | Used w/Ref# 9-2 | |
| 7-2 | 09100-12091 Transom Bolt (12x115)
SKU: 09100-12091 Weight: 0.250000 Brand: Price: $ 14.20 |
Transom Bolt (12x115) | 4 | $ 14.20 | S/N 510198 to 51XXXX | |
| 7-3 | 09100-12090 Transom Bolt (12x150)
SKU: 09100-12090 Weight: 0.250000 Brand: Price: $ 34.60 |
Transom Bolt (12x150) | 1 | $ 34.60 | Optional Used w/Ref# 9-2 | |
| 7-4 | 09100-12090 Transom Bolt (12x150)
SKU: 09100-12090 Weight: 0.250000 Brand: Price: $ 34.60 |
Transom Bolt (12x150) | 1 | $ 34.60 | Opt: S/N 510198 to 51XXXX | |
| 8 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 9-1 | 09140-12028 Nut
SKU: 09140-12028 Weight: 0.060000 Brand: Price: $ 3.60 |
Nut | 4 | $ 3.60 | S/N 510001 to 510197 | |
| 9-2 | 09159-12014 Nut (12x17)
SKU: 09159-12014 Weight: 0.060000 Brand: Price: $ 5.04 |
Nut (12x17) | 4 | $ 5.04 | S/N 510198 to 51XXXX | |
| 10 | 09159-22006 Nut
SKU: 09159-22006 Weight: 0.250000 Brand: Price: $ 25.75 |
Nut | 1 | $ 25.75 | ||
| 10A | 09160-22033 Washer (22.5x38x1.0)
SKU: 09160-22033 Weight: 0.060000 Brand: Price: $ 3.96 |
Washer (22.5x38x1.0) | 1 | $ 3.96 | ||
| 11 | 09160-12044 Washer (12.5x35x3.2)
SKU: 09160-12044 Weight: 0.060000 Brand: Price: $ 3.49 |
Washer (12.5x35x3.2) | 4 | $ 3.49 | ||
| 12-1 | 09160-12066 Washer (12.5x22x2.5)
SKU: 09160-12066 Weight: 0.060000 Brand: Price: $ 1.80 |
Washer (12.5x22x2.5) | 4 | $ 1.80 | S/N 510001 to 510197 | |
| 12-2 | 09160-12110 Washer (12.5x22x3.0)
SKU: 09160-12110 Weight: 0.060000 Brand: Price: $ 3.79 |
Washer (12.5x22x3.0) | 4 | $ 3.79 | S/N 510198 to 51XXXX | |
| 13 | 09162-12005 Lock Washer
SKU: 09162-12005 Weight: 0.060000 Brand: Price: $ 2.06 |
Lock Washer | 4 | $ 2.06 | S/N 510001 to 510197 | |
| 14 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | ||
| 15 | 45421-90J00 Tilt Lock Pin
SKU: 45421-90J00 Weight: 0.500000 Brand: Price: $ 45.69 |
Tilt Lock Pin | 1 | $ 45.69 | ||
| 16 | 09106-10065 Bolt (10x20)
SKU: 09106-10065 Weight: 0.050000 Brand: Price: $ 6.19 |
Bolt (10x20) | 2 | $ 6.19 | ||
| 17 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 2 | $ 1.63 | ||
| 18 | 09159-14020 Nut (14mm)
SKU: 09159-14020 Weight: 0.060000 Brand: Price: $ 4.73 |
Nut (14mm) | 2 | $ 4.73 | Optional | |
| 19 | 48140-93J01 Tilt Limit Switch Cam
SKU: 48140-93J01 Weight: 0.060000 Brand: Price: $ 15.32 |
Tilt Limit Switch Cam | 1 | $ 15.32 | ||
| 20 | 48144-93J00 Tilt Limit Switch Holder
SKU: 48144-93J00 Weight: 0.060000 Brand: Price: $ 10.46 |
Tilt Limit Switch Holder | 1 | $ 10.46 | ||
| 21-1 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | S/N 510001 to 510638 | |
| 21-2 | 09103-06278 Bolt (6x25)
SKU: 09103-06278 Weight: 0.060000 Brand: Price: $ 2.37 |
Bolt (6x25) | 2 | $ 2.37 | S/N 510639 to 51XXXX | |
| 22 | 48145-93J00 Tilt Limit Switch Cover
SKU: 48145-93J00 Weight: 0.060000 Brand: Price: $ 10.38 |
Tilt Limit Switch Cover | 1 | $ 10.38 | S/N 510639 to 51XXXX |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
