Suzuki DF 60 Parts Listings - 2005
S/N 06001F-510001 to 06001F-51XXXX

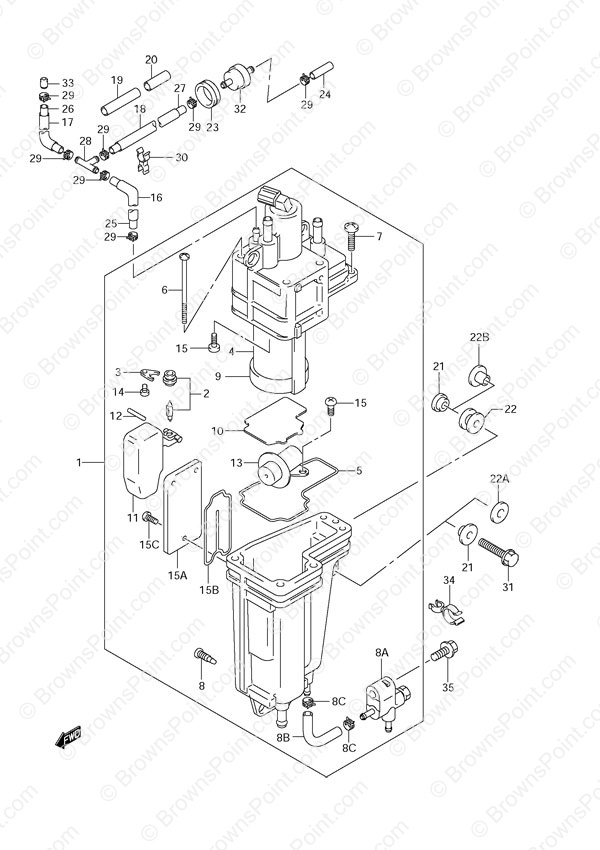

Fig. 16 - Fuel Vapor Separator
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 15600-99EV2 Fuel Vapor Separator Assembly
SKU: 15600-99EV2 Weight: 3.500000 Brand: Price: $ 727.42 |
Fuel Vapor Separator Assembly | 1 | $ 727.42 | S/N 510001 to 510773 | |
| 1-2 | 15600-99E24 Fuel Vapor Separator Assembly
SKU: 15600-99E24 Weight: 3.200000 Brand: Price: $ 797.47 |
Fuel Vapor Separator Assembly | 1 | $ 797.47 | S/N 510774 to 51XXXX | |
| 2 | 13370-99E00 Needle Valve Assembly
SKU: 13370-99E00 Weight: 0.060000 Brand: Price: $ 48.97 |
Needle Valve Assembly | 1 | $ 48.97 | ||
| 3 | 13373-39110 Needle Valve Plate
SKU: 13373-39110 Weight: 0.062500 Brand: Price: $ 7.01 |
Needle Valve Plate | 1 | $ 7.01 | ||
| 4 | 15200-87J10 Fuel Pump Assembly
SKU: 15200-87J10 Weight: 0.740000 Brand: Price: $ 438.00 |
Fuel Pump Assembly | 1 | $ 438.00 | ||
| 5 | 15626-99E00 O-Ring
SKU: 15626-99E00 Weight: 0.060000 Brand: Price: $ 12.79 |
O-Ring | 1 | $ 12.79 | ||
| 6 | 15627-99E00 Screw (L:70)
SKU: 15627-99E00 Weight: 0.100000 Brand: Price: $ 5.30 |
Screw (L:70) | 3 | $ 5.30 | ||
| 7 | 15628-99E00 Screw (L:15)
SKU: 15628-99E00 Weight: 0.060000 Brand: Price: $ 2.42 |
Screw (L:15) | 2 | $ 2.42 | ||
| 8 | 15629-99E10 Drain Screw
SKU: 15629-99E10 Weight: 0.060000 Brand: Price: $ 5.49 |
Drain Screw | 1 | $ 5.49 | S/N 510001 to 510773 | |
| 8A | 15648-99E00 Drain Body (NLA)
SKU: 15648-99E00 Weight: 0.100000 Brand: Price: $ 20.30 |
Drain Body (NLA) | 1 | $ 20.30 | S/N 510774 to 51XXXX | |
| 8B | 15683-99E00 Drain Hose
SKU: 15683-99E00 Weight: 0.150000 Brand: Price: $ 2.71 |
Drain Hose | 1 | $ 2.71 | S/N 510774 to 51XXXX | |
| 8C | 15685-99E00 Clip
SKU: 15685-99E00 Weight: 0.100000 Brand: Price: $ 2.24 |
Clip | 2 | $ 2.24 | S/N 510774 to 51XXXX | |
| 9 | 15641-99E01 Fuel Pump Filter
SKU: 15641-99E01 Weight: 0.060000 Brand: Price: $ 26.63 |
Fuel Pump Filter | 1 | $ 26.63 | ||
| 10 | 15642-99E10 Regulator Plate
SKU: 15642-99E10 Weight: 0.100000 Brand: Price: $ 9.78 |
Regulator Plate | 1 | $ 9.78 | ||
| 11 | 15650-99E00 Float
SKU: 15650-99E00 Weight: 0.060000 Brand: Price: $ 68.42 |
Float | 1 | $ 68.42 | ||
| 12 | 15654-99E00 Float Pin
SKU: 15654-99E00 Weight: 0.060000 Brand: Price: $ 2.50 |
Float Pin | 1 | $ 2.50 | ||
| 13 | 15760-87J00 Fuel Pressure Regulator
SKU: 15760-87J00 Weight: 0.160000 Brand: Price: $ 234.08 |
Fuel Pressure Regulator | 1 | $ 234.08 | ||
| 14 | 02112-0408A SCREW
SKU: 02112-0408A Weight: 0.060000 Brand: Price: $ 1.11 |
SCREW | 1 | $ 1.11 | ||
| 15 | 02112-0510A SCREW
SKU: 02112-0510A Weight: 0.060000 Brand: Price: $ 1.44 |
SCREW | 2 | $ 1.44 | ||
| 15A | 15612-99E01 Vapor Separator Cover
SKU: 15612-99E01 Weight: 0.250000 Brand: Price: $ 14.30 |
Vapor Separator Cover | 1 | $ 14.30 | ||
| 15B | 15613-99E00 O-Ring
SKU: 15613-99E00 Weight: 0.060000 Brand: Price: $ 5.14 |
O-Ring | 1 | $ 5.14 | ||
| 15C | 15614-88L00 Screw
SKU: 15614-88L00 Weight: 0.060000 Brand: Price: $ 4.61 |
Screw | 3 | $ 4.61 | ||
| 16 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.05 |
Protector (L:450) | 1 | $ 5.05 | L:450->80 | |
| 17 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.05 |
Protector (L:450) | 1 | $ 5.05 | L:450->280 | |
| 19 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.05 |
Protector (L:450) | 1 | $ 5.05 | ||
| 20 | 18498-87JC1 Protector (L:450)
SKU: 18498-87JC1 Weight: 0.120000 Brand: Price: $ 5.05 |
Protector (L:450) | 1 | $ 5.05 | L:450->300 | |
| 21 | 09169-06067 Washer (6.8x19x1.6)
SKU: 09169-06067 Weight: 0.060000 Brand: Price: $ 3.40 |
Washer (6.8x19x1.6) | 8 | $ 3.40 | S/N 510001 to 510135 | |
| 22 | 09320-09059 Cushion
SKU: 09320-09059 Weight: 0.060000 Brand: Price: $ 3.31 |
Cushion | 4 | $ 3.31 | ||
| 22A | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 4 | $ 1.78 | S/N 510136 to 51XXXX | |
| 22B | 09169-06075 Washer
SKU: 09169-06075 Weight: 0.200000 Brand: Price: $ 3.19 |
Washer | 4 | $ 3.19 | S/N 510136 to 51XXXX | |
| 23 | 09320-20008 Cushion
SKU: 09320-20008 Weight: 0.100000 Brand: Price: $ 3.74 |
Cushion | 1 | $ 3.74 | ||
| 24 | 44420-44AR0 Hose (5x8.2x600)
SKU: 44420-44AR0 Weight: 0.180000 Brand: Price: $ 9.36 |
Hose (5x8.2x600) | 1 | $ 9.36 | L:600->90 | |
| 25 | 44420-44AR0 Hose (5x8.2x600)
SKU: 44420-44AR0 Weight: 0.180000 Brand: Price: $ 9.36 |
Hose (5x8.2x600) | 1 | $ 9.36 | L:600->140 | |
| 26 | 44420-44AR0 Hose (5x8.2x600)
SKU: 44420-44AR0 Weight: 0.180000 Brand: Price: $ 9.36 |
Hose (5x8.2x600) | 1 | $ 9.36 | L:600->330 | |
| 27 | 09352-50005-00B Hose (5x8.2x2000)
SKU: 09352-50005-00B Weight: 0.250000 Brand: Price: $ 14.18 |
Hose (5x8.2x2000) | 1 | $ 14.18 | L:2000->810 | |
| 28 | 09367-06002 3 Way
SKU: 09367-06002 Weight: 0.060000 Brand: Price: $ 2.65 |
3 Way | 1 | $ 2.65 | ||
| 29 | 09401-08412 Clip
SKU: 09401-08412 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 7 | $ 2.09 | ||
| 30 | 09408-00126 Clamp (NLA)
SKU: 09408-00126 Weight: 0.100000 Brand: Price: $ 1.89 |
Clamp (NLA) | 1 | $ 1.89 | ||
| 31 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 32 | 15410-98500 Fuel Filter
SKU: 15410-98500 Weight: 0.060000 Brand: Price: $ 10.74 |
Fuel Filter | 1 | $ 10.74 | ||
| 33-1 | 15661-99E00 Evaporation Hose Jet (NLA)
SKU: 15661-99E00 Weight: 0.060000 Brand: Price: $ 9.12 |
Evaporation Hose Jet (NLA) | 1 | $ 9.12 | Optional | |
| 33-2 | 09493-20020 Pilot Air Jet
SKU: 09493-20020 Weight: 0.060000 Brand: Price: $ 15.14 |
Pilot Air Jet | 1 | $ 15.14 | Optional | |
| 34 | 09408-00070 Clamp (NLA)
SKU: 09408-00070 Weight: 0.100000 Brand: Price: $ 1.68 |
Clamp (NLA) | 1 | $ 1.68 | S/N 510774 to 51XXXX | |
| 35 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | S/N 510774 to 51XXXX |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
