Suzuki DF 60 Parts Listings - 2002
S/N 06001F-251001 to 06001F-25XXXX

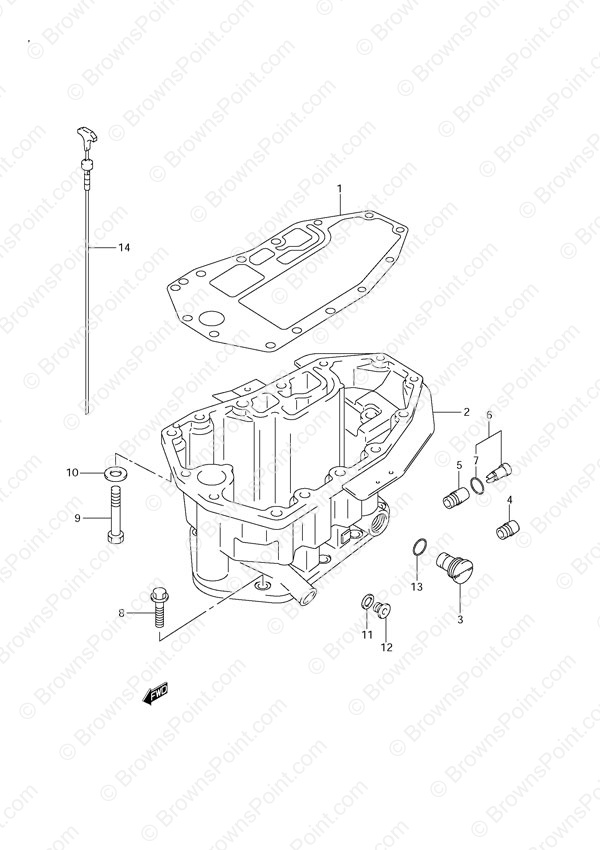

Fig. 24 - Oil Pan
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11489-99E01 Oil Pan Gasket
SKU: 11489-99E01 Weight: 0.180000 Brand: Price: $ 41.10 |
Oil Pan Gasket | 1 | $ 41.10 | ||
| 2 | 11500-99E01-019 Oil Pan
SKU: 11500-99E01-019 Weight: 0.100000 Brand: Price: $ 765.52 |
Oil Pan | 1 | $ 765.52 | ||
| 3 | 17913-99E12 Water Plug
SKU: 17913-99E12 Weight: 0.150000 Brand: Price: $ 4.47 |
Water Plug | 1 | $ 4.47 | ||
| 4 | 43112-94L01 Exhaust Pipe
SKU: 43112-94L01 Weight: 0.060000 Brand: Price: $ 6.24 |
Exhaust Pipe | 1 | $ 6.24 | ||
| 5 | 61155-99E01 Water Indicator Tube
SKU: 61155-99E01 Weight: 0.060000 Brand: Price: $ 6.34 |
Water Indicator Tube | 1 | $ 6.34 | ||
| 6 | 61150-99E01 Water Indicator Tube Cover
SKU: 61150-99E01 Weight: 0.060000 Brand: Price: $ 8.02 |
Water Indicator Tube Cover | 1 | $ 8.02 | ||
| 7 | 09280-09005 O-Ring
SKU: 09280-09005 Weight: 0.060000 Brand: Price: $ 3.76 |
O-Ring | 1 | $ 3.76 | ||
| 8 | 29116-93J10 Bolt (8x35)
SKU: 29116-93J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Bolt (8x35) | 6 | $ 2.90 | ||
| 9 | 09116-10142 Bolt (10x100) w/Washer
SKU: 09116-10142 Weight: 0.140000 Brand: Price: $ 8.14 |
Bolt (10x100) w/Washer | 8 | $ 8.14 | ||
| 10 | 09160-10082 Washer (10.5x19x2.0)
SKU: 09160-10082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (10.5x19x2.0) | 8 | $ 1.63 | ||
| 11 | 09168-12012 Oil Drain Plug Gasket
SKU: 09168-12012 Weight: 0.060000 Brand: Price: $ 1.85 |
Oil Drain Plug Gasket | 1 | $ 1.85 | ||
| 12 | 09248-12007 Oil Drain Plug
SKU: 09248-12007 Weight: 0.060000 Brand: Price: $ 6.47 |
Oil Drain Plug | 1 | $ 6.47 | ||
| 13 | 09280-13005 O-Ring
SKU: 09280-13005 Weight: 0.060000 Brand: Price: $ 1.86 |
O-Ring | 1 | $ 1.86 | ||
| 14 | 16910-99E10 Oil Level Gauge
SKU: 16910-99E10 Weight: 0.100000 Brand: Price: $ 19.50 |
Oil Level Gauge | 1 | $ 19.50 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
