Suzuki DF 60 Parts Listings - 2000
S/N 06001F-030001 to 06001F-03XXXX

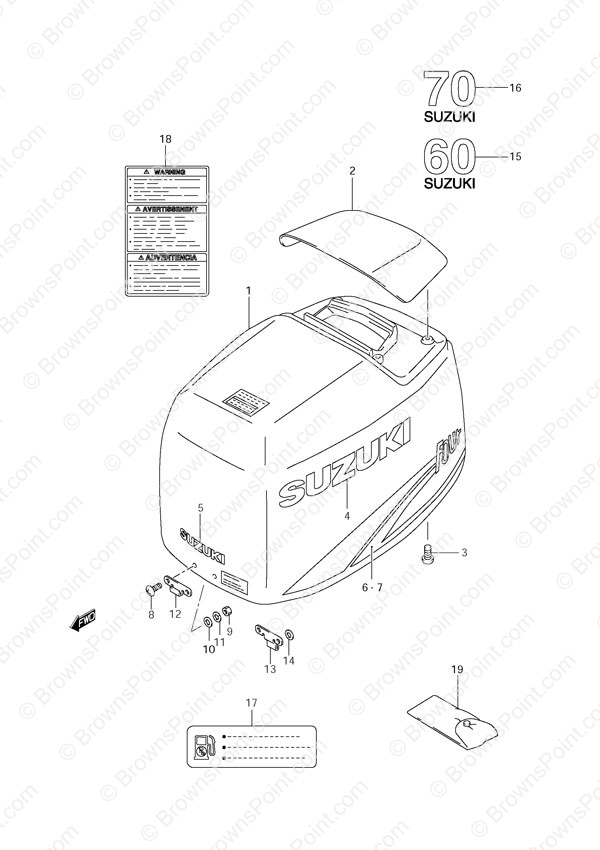

Fig. 48 - Engine Cover
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-99842-0EP Engine Cover Set
SKU: 61400-99842-0EP Weight: 50.000000 Brand: Price: $ 1,320.37 |
Engine Cover Set | 1 | $ 1,320.37 | ||
| 2 | 61431-99E11-0EP Tilt Up Handle
SKU: 61431-99E11-0EP Weight: 2.400000 Brand: Price: $ 148.59 |
Tilt Up Handle | 1 | $ 148.59 | ||
| 3 | 09116-06204 Bolt (6x20)
SKU: 09116-06204 Weight: 0.060000 Brand: Price: $ 3.10 |
Bolt (6x20) | 4 | $ 3.10 | ||
| 4 | 68111-34301-Y2D Side Emblem Mark
SKU: 68111-34301-Y2D Weight: 0.100000 Brand: Price: $ 28.63 |
Side Emblem Mark | 2 | $ 28.63 | ||
| 5 | 68271-87J00 Front Emblem Mark
SKU: 68271-87J00 Weight: 0.060000 Brand: Price: $ 8.20 |
Front Emblem Mark | 1 | $ 8.20 | ||
| 6 | 61443-99E00 Stbd Engine Cover Stripe
SKU: 61443-99E00 Weight: 0.060000 Brand: Price: $ 77.94 |
Stbd Engine Cover Stripe | 1 | $ 77.94 | ||
| 7 | 61453-99E00 Port Engine Cover Stripe
SKU: 61453-99E00 Weight: 0.060000 Brand: Price: $ 77.94 |
Port Engine Cover Stripe | 1 | $ 77.94 | ||
| 8 | 09125-06025 Screw (6x20)
SKU: 09125-06025 Weight: 0.060000 Brand: Price: $ 2.09 |
Screw (6x20) | 4 | $ 2.09 | ||
| 9 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 4 | $ 1.82 | ||
| 12 | 61631-99E00 Fastner Hook
SKU: 61631-99E00 Weight: 0.100000 Brand: Price: $ 8.60 |
Fastner Hook | 2 | $ 8.60 | ||
| 13 | 61621-99E00 Engine Cover Bracket
SKU: 61621-99E00 Weight: 0.060000 Brand: Price: $ 7.49 |
Engine Cover Bracket | 2 | $ 7.49 | ||
| 14 | 09160-06094 Washer (6.5x15x1.0)
SKU: 09160-06094 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x15x1.0) | 4 | $ 1.44 | ||
| 15 | 61435-99E00 Rear Emblem Mark DF60 (NLA)
SKU: 61435-99E00 Weight: 0.060000 Brand: Price: $ 13.61 |
Rear Emblem Mark DF60 (NLA) | 1 | $ 13.61 | ||
| 17 | 69716-99E14 Fuel Limitation Label
SKU: 69716-99E14 Weight: 0.200000 Brand: Price: $ 3.98 |
Fuel Limitation Label | 1 | $ 3.98 | ||
| 18 | 61458-99E31 Engine Cover Label
SKU: 61458-99E31 Weight: 0.060000 Brand: Price: $ 11.87 |
Engine Cover Label | 1 | $ 11.87 | ||
| 19 | 09800-81812 Tool Set
SKU: 09800-81812 Weight: 1.600000 Brand: Price: $ 81.82 |
Tool Set | 1 | $ 81.82 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
