Suzuki DF 60 Parts Listings - 2000
S/N 06001F-030001 to 06001F-03XXXX

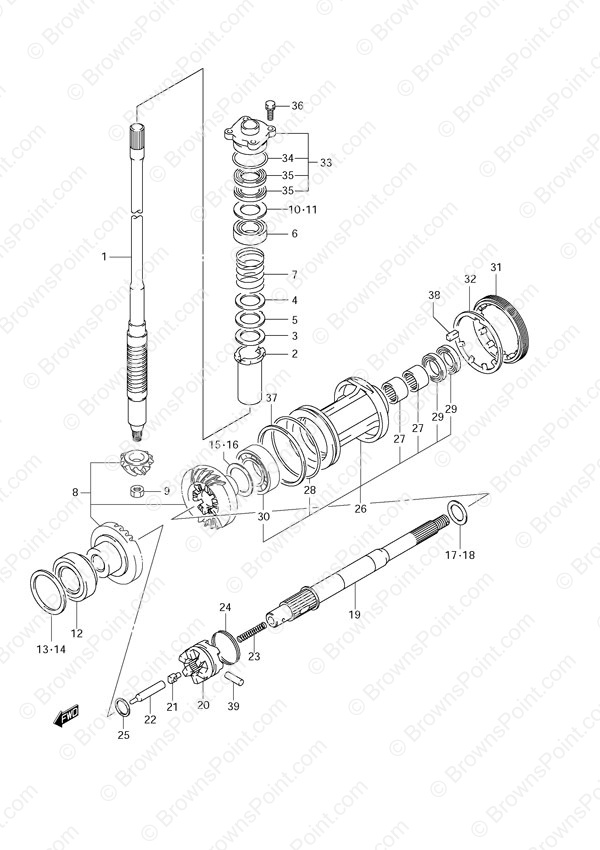

Fig. 45 - Transmission
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 57110-99E10 Drive Shaft (L)
SKU: 57110-99E10 Weight: 10.000000 Brand: Price: $ 638.73 |
Drive Shaft (L) | 1 | $ 638.73 | ||
| 2 | 57133-87E00 Drive Shaft Collar
SKU: 57133-87E00 Weight: 0.100000 Brand: Price: $ 11.12 |
Drive Shaft Collar | 1 | $ 11.12 | ||
| 3 | 57134-87E10 Drive Shaft Collar Protector
SKU: 57134-87E10 Weight: 0.100000 Brand: Price: $ 4.84 |
Drive Shaft Collar Protector | 1 | $ 4.84 | ||
| 4 | 09160-31005 Washer (31x39x2.0)
SKU: 09160-31005 Weight: 0.060000 Brand: Price: $ 4.46 |
Washer (31x39x2.0) | 1 | $ 4.46 | ||
| 5 | 09169-33001 Washer (33x40x2.0)
SKU: 09169-33001 Weight: 0.060000 Brand: Price: $ 4.98 |
Washer (33x40x2.0) | 1 | $ 4.98 | ||
| 6 | 09265-25046 Bearing (25x52x19.25)
SKU: 09265-25046 Weight: 0.500000 Brand: Price: $ 75.79 |
Bearing (25x52x19.25) | 1 | $ 75.79 | ||
| 7 | 09440-38006 Spring
SKU: 09440-38006 Weight: 0.100000 Brand: Price: $ 8.41 |
Spring | 1 | $ 8.41 | ||
| 8 | 57300-99810 Pinion & Gear Set
SKU: 57300-99810 Weight: 5.000000 Brand: Price: $ 477.68 |
Pinion & Gear Set | 1 | $ 477.68 | ||
| 9 | 09140-12034 Pinion Nut
SKU: 09140-12034 Weight: 0.060000 Brand: Price: $ 3.02 |
Pinion Nut | 1 | $ 3.02 | ||
| 10 | 57500-87873 Drive Shaft Shim Set
SKU: 57500-87873 Weight: 0.250000 Brand: Price: $ 40.67 |
Drive Shaft Shim Set | 1 | $ 40.67 | ||
| 11-1 | 09181-41003 Shim (0.60)
SKU: 09181-41003 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.60) | 1 | $ 6.73 | ||
| 11-2 | 09181-41004 Shim (0.65)
SKU: 09181-41004 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.65) | 1 | $ 6.73 | ||
| 11-3 | 09181-41005 Shim (0.70)
SKU: 09181-41005 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.70) | 1 | $ 6.73 | ||
| 11-4 | 09181-41006 Shim (0.75)
SKU: 09181-41006 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.75) | 1 | $ 6.73 | ||
| 11-5 | 09181-40190 Shim (0.80)
SKU: 09181-40190 Weight: 0.060000 Brand: Price: $ 4.06 |
Shim (0.80) | 1 | $ 4.06 | ||
| 11-6 | 09181-41008 Shim (0.85)
SKU: 09181-41008 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.85) | 1 | $ 6.73 | ||
| 11-7 | 09181-41009 Shim (0.90)
SKU: 09181-41009 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.90) | 1 | $ 6.73 | ||
| 11-8 | 09181-41010 Shim (0.95)
SKU: 09181-41010 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (0.95) | 1 | $ 6.73 | ||
| 11-9 | 09181-40195 Shim (1.00)
SKU: 09181-40195 Weight: 0.100000 Brand: Price: $ 5.80 |
Shim (1.00) | 1 | $ 5.80 | ||
| 11-10 | 09181-41012 Shim (1.05)
SKU: 09181-41012 Weight: 0.125000 Brand: Price: $ 6.73 |
Shim (1.05) | 1 | $ 6.73 | ||
| 11-11 | 09181-41013 Shim (1.10)
SKU: 09181-41013 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (1.10) | 1 | $ 6.73 | ||
| 11-12 | 09181-41014 Shim (1.15)
SKU: 09181-41014 Weight: 0.060000 Brand: Price: $ 6.73 |
Shim (1.15) | 1 | $ 6.73 | ||
| 12 | 09265-40003 Bearing (40x75x26)
SKU: 09265-40003 Weight: 1.200000 Brand: Price: $ 135.74 |
Bearing (40x75x26) | 1 | $ 135.74 | ||
| 13 | 57500-87882 Forward Gear Shim Set
SKU: 57500-87882 Weight: 0.160000 Brand: Price: $ 49.01 |
Forward Gear Shim Set | 1 | $ 49.01 | ||
| 14-1 | 09181-64002 Shim (0.55)
SKU: 09181-64002 Weight: 0.100000 Brand: Price: $ 7.35 |
Shim (0.55) | 1 | $ 7.35 | ||
| 14-2 | 09181-64003 Shim (0.60) (NLA)
SKU: 09181-64003 Weight: 0.100000 Brand: Price: $ 6.87 |
Shim (0.60) (NLA) | 1 | $ 6.87 | ||
| 14-3 | 09181-64004 Shim (0.65) (NLA)
SKU: 09181-64004 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.65) (NLA) | 1 | $ 4.43 | ||
| 14-4 | 09181-64005 Shim (0.70) (NLA)
SKU: 09181-64005 Weight: 0.100000 Brand: Price: $ 3.84 |
Shim (0.70) (NLA) | 1 | $ 3.84 | ||
| 14-5 | 09181-64006 Shim (0.75) (NLA)
SKU: 09181-64006 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.75) (NLA) | 1 | $ 4.43 | ||
| 14-6 | 09181-64007 Shim (0.80) (NLA)
SKU: 09181-64007 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.80) (NLA) | 1 | $ 4.43 | ||
| 14-7 | 09181-64008 Shim (0.85) (NLA)
SKU: 09181-64008 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.85) (NLA) | 1 | $ 4.43 | ||
| 14-8 | 09181-64009 Shim (0.90) (NLA)
SKU: 09181-64009 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.90) (NLA) | 1 | $ 4.43 | ||
| 14-9 | 09181-64010 Shim (0.95) (NLA)
SKU: 09181-64010 Weight: 0.100000 Brand: Price: $ 4.43 |
Shim (0.95) (NLA) | 1 | $ 4.43 | ||
| 14-10 | 09181-64011 Shim (1.00) (NLA)
SKU: 09181-64011 Weight: 0.100000 Brand: Price: $ 4.56 |
Shim (1.00) (NLA) | 1 | $ 4.56 | ||
| 15 | 57500-87892 Reverse Gear Shim Set (NLA)
SKU: 57500-87892 Weight: 0.200000 Brand: Price: $ 27.06 |
Reverse Gear Shim Set (NLA) | 1 | $ 27.06 | ||
| 16-1 | 09181-40195 Shim (1.00)
SKU: 09181-40195 Weight: 0.100000 Brand: Price: $ 5.80 |
Shim (1.00) | 1 | $ 5.80 | ||
| 16-2 | 09181-41013 Shim (1.10)
SKU: 09181-41013 Weight: 0.100000 Brand: Price: $ 6.73 |
Shim (1.10) | 1 | $ 6.73 | ||
| 16-3 | 09181-40176 Shim (1.20) (NLA)
SKU: 09181-40176 Weight: 0.100000 Brand: Price: $ 2.68 |
Shim (1.20) (NLA) | 1 | $ 2.68 | ||
| 16-4 | 09181-40181 Shim (1.30) (NLA)
SKU: 09181-40181 Weight: 0.100000 Brand: Price: $ 2.56 |
Shim (1.30) (NLA) | 1 | $ 2.56 | ||
| 16-5 | 09181-40182 Shim (1.40) (NLA)
SKU: 09181-40182 Weight: 0.100000 Brand: Price: $ 3.09 |
Shim (1.40) (NLA) | 1 | $ 3.09 | ||
| 16-6 | 09181-40212 Shim (1.50) (NLA)
SKU: 09181-40212 Weight: 0.100000 Brand: Price: $ 3.39 |
Shim (1.50) (NLA) | 1 | $ 3.39 | ||
| 16-7 | 09181-40033 Shim (1.60) (NLA)
SKU: 09181-40033 Weight: 0.100000 Brand: Price: $ 2.68 |
Shim (1.60) (NLA) | 1 | $ 2.68 | ||
| 16-8 | 09181-40034 Shim (1.70) (NLA)
SKU: 09181-40034 Weight: 0.100000 Brand: Price: $ 2.71 |
Shim (1.70) (NLA) | 1 | $ 2.71 | ||
| 16-9 | 09181-40035 Shim (1.80) (NLA)
SKU: 09181-40035 Weight: 0.100000 Brand: Price: $ 2.71 |
Shim (1.80) (NLA) | 1 | $ 2.71 | ||
| 16-10 | 09181-40036 Shim (1.90) (NLA)
SKU: 09181-40036 Weight: 0.100000 Brand: Price: $ 2.71 |
Shim (1.90) (NLA) | 1 | $ 2.71 | ||
| 17 | 57510-87811 Thrust Washer Set (NLA)
SKU: 57510-87811 Weight: 0.220000 Brand: Price: $ 39.37 |
Thrust Washer Set (NLA) | 1 | $ 39.37 | ||
| 18-1 | 09181-28184 Thrust Washer (1.50) (NLA)
SKU: 09181-28184 Weight: 0.060000 Brand: Price: $ 3.91 |
Thrust Washer (1.50) (NLA) | 1 | $ 3.91 | ||
| 18-2 | 09160-28023 Thurst Washer (1.60) (NLA)
SKU: 09160-28023 Weight: 0.100000 Brand: Price: $ 2.55 |
Thurst Washer (1.60) (NLA) | 1 | $ 2.55 | ||
| 18-3 | 09160-28024 Thurst Washer (1.70) (NLA)
SKU: 09160-28024 Weight: 0.100000 Brand: Price: $ 2.55 |
Thurst Washer (1.70) (NLA) | 1 | $ 2.55 | ||
| 18-4 | 09160-28025 Thurst Washer (1.80) (NLA)
SKU: 09160-28025 Weight: 0.100000 Brand: Price: $ 2.55 |
Thurst Washer (1.80) (NLA) | 1 | $ 2.55 | ||
| 18-5 | 09160-28026 Thurst Washer (1.90) (NLA)
SKU: 09160-28026 Weight: 0.100000 Brand: Price: $ 2.55 |
Thurst Washer (1.90) (NLA) | 1 | $ 2.55 | ||
| 18-6 | 08211-28363 Thrust Washer (2.00) (NLA)
SKU: 08211-28363 Weight: 0.100000 Brand: Price: $ 2.11 |
Thrust Washer (2.00) (NLA) | 1 | $ 2.11 | ||
| 18-7 | 09160-28027 Thurst Washer (2.10) (NLA)
SKU: 09160-28027 Weight: 0.100000 Brand: Price: $ 2.95 |
Thurst Washer (2.10) (NLA) | 1 | $ 2.95 | ||
| 18-8 | 08211-28364 Thrust Washer (2.20) (NLA)
SKU: 08211-28364 Weight: 0.100000 Brand: Price: $ 2.13 |
Thrust Washer (2.20) (NLA) | 1 | $ 2.13 | ||
| 18-9 | 09160-28028 Thurst Washer (2.30) (NLA)
SKU: 09160-28028 Weight: 0.100000 Brand: Price: $ 3.14 |
Thurst Washer (2.30) (NLA) | 1 | $ 3.14 | ||
| 18-10 | 09160-28029 Thurst Washer (2.40) (NLA)
SKU: 09160-28029 Weight: 0.100000 Brand: Price: $ 3.14 |
Thurst Washer (2.40) (NLA) | 1 | $ 3.14 | ||
| 18-11 | 08211-28365 Thrust Washer (2.50)
SKU: 08211-28365 Weight: 0.060000 Brand: Price: $ 3.25 |
Thrust Washer (2.50) | 1 | $ 3.25 | ||
| 18-12 | 09160-28030 Thurst Washer (2.60) (NLA)
SKU: 09160-28030 Weight: 0.100000 Brand: Price: $ 2.95 |
Thurst Washer (2.60) (NLA) | 1 | $ 2.95 | ||
| 18-13 | 09160-28031 Thurst Washer (2.70) (NLA)
SKU: 09160-28031 Weight: 0.100000 Brand: Price: $ 2.95 |
Thurst Washer (2.70) (NLA) | 1 | $ 2.95 | ||
| 18-14 | 09160-28032 Thurst Washer (2.80) (NLA)
SKU: 09160-28032 Weight: 0.100000 Brand: Price: $ 2.95 |
Thurst Washer (2.80) (NLA) | 1 | $ 2.95 | ||
| 18-15 | 09160-28033 Thurst Washer (2.90) (NLA)
SKU: 09160-28033 Weight: 0.100000 Brand: Price: $ 2.95 |
Thurst Washer (2.90) (NLA) | 1 | $ 2.95 | ||
| 19 | 57610-99E00 Propeller Shaft Assembly
SKU: 57610-99E00 Weight: 3.000000 Brand: Price: $ 539.67 |
Propeller Shaft Assembly | 1 | $ 539.67 | ||
| 20 | 57621-99E01 Clutch Dog Shifter
SKU: 57621-99E01 Weight: 1.000000 Brand: Price: $ 108.85 |
Clutch Dog Shifter | 1 | $ 108.85 | ||
| 21 | 09209-12007 Push Pin
SKU: 09209-12007 Weight: 0.060000 Brand: Price: $ 4.67 |
Push Pin | 1 | $ 4.67 | ||
| 22 | 57631-95542 Push Rod
SKU: 57631-95542 Weight: 0.100000 Brand: Price: $ 26.77 |
Push Rod | 1 | $ 26.77 | ||
| 23 | 09440-11020 Spring
SKU: 09440-11020 Weight: 0.060000 Brand: Price: $ 2.14 |
Spring | 1 | $ 2.14 | ||
| 24 | 09440-46006 Clutch Dog Spring
SKU: 09440-46006 Weight: 0.060000 Brand: Price: $ 11.44 |
Clutch Dog Spring | 1 | $ 11.44 | ||
| 25 | 09160-24020 Washer (24x33x2.5)
SKU: 09160-24020 Weight: 0.060000 Brand: Price: $ 4.78 |
Washer (24x33x2.5) | 1 | $ 4.78 | ||
| 27 | 09263-28013 Bearing (28x37x20)
SKU: 09263-28013 Weight: 0.120000 Brand: Price: $ 32.64 |
Bearing (28x37x20) | 2 | $ 32.64 | ||
| 26 | 56120-87E00 Propeller Shaft Bearing Housing
SKU: 56120-87E00 Weight: 10.000000 Brand: Price: $ 266.01 |
Propeller Shaft Bearing Housing | 1 | $ 266.01 | ||
| 28 | 09280-86001 O-Ring
SKU: 09280-86001 Weight: 0.060000 Brand: Price: $ 4.89 |
O-Ring | 1 | $ 4.89 | ||
| 29 | 09282-28003 Oil Seal
SKU: 09282-28003 Weight: 0.060000 Brand: Price: $ 10.66 |
Oil Seal | 2 | $ 10.66 | ||
| 31 | 56122-87E00 Propeller Shaft Stopper
SKU: 56122-87E00 Weight: 0.140000 Brand: Price: $ 50.06 |
Propeller Shaft Stopper | 1 | $ 50.06 | ||
| 32 | 56123-87E00 Propeller Shaft Washer (NLA)
SKU: 56123-87E00 Weight: 0.060000 Brand: Price: $ 15.55 |
Propeller Shaft Washer (NLA) | 1 | $ 15.55 | ||
| 33 | 56130-87E00 Drive Shaft Housing
SKU: 56130-87E00 Weight: 0.300000 Brand: Price: $ 95.36 |
Drive Shaft Housing | 1 | $ 95.36 | ||
| 34 | 09280-46004 O-Ring
SKU: 09280-46004 Weight: 0.060000 Brand: Price: $ 3.14 |
O-Ring | 1 | $ 3.14 | ||
| 35 | 09282-22007 Oil Seal (22x36x6)
SKU: 09282-22007 Weight: 0.060000 Brand: Price: $ 13.97 |
Oil Seal (22x36x6) | 2 | $ 13.97 | ||
| 36 | 09117-08110 Bolt (8x25)
SKU: 09117-08110 Weight: 0.060000 Brand: Price: $ 5.04 |
Bolt (8x25) | 4 | $ 5.04 | ||
| 37 | 09160-86001 Spacer
SKU: 09160-86001 Weight: 0.100000 Brand: Price: $ 17.78 |
Spacer | 1 | $ 17.78 | ||
| 38 | 09421-04008 Key
SKU: 09421-04008 Weight: 0.060000 Brand: Price: $ 5.60 |
Key | 1 | $ 5.60 | ||
| 39 | 09202-07003 Pin (7x44)
SKU: 09202-07003 Weight: 0.060000 Brand: Price: $ 6.08 |
Pin (7x44) | 1 | $ 6.08 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
All contents of this website apply to the continental U.S. market only.
- Prices and Part Numbers subject to change without notice.
- All contents of this website apply to the continental U.S. market only.
- All trademarks or product names mentioned herein are the property of their respective owners.
