Suzuki DF 60 Parts Listings - 2000
S/N 06001F-030001 to 06001F-03XXXX

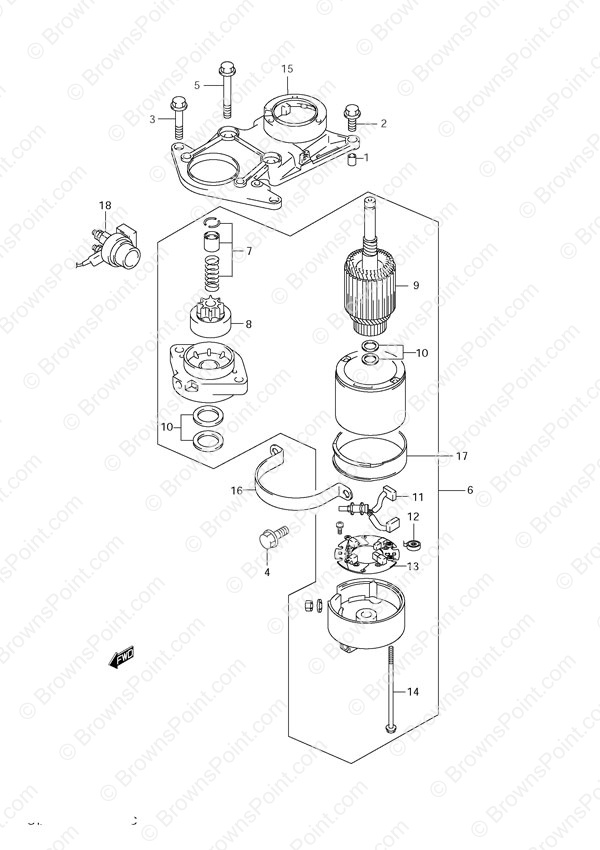

Fig. 27 - Starting Motor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 09206-09014 Pin (9x16) (NLA)
SKU: 09206-09014 Weight: 0.100000 Brand: Price: $ 2.45 |
Pin (9x16) (NLA) | 2 | $ 2.45 | ||
| 2 | 01550-06307 BOLT
SKU: 01550-06307 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 3 | 01550-08257 BOLT
SKU: 01550-08257 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 2 | $ 2.82 | ||
| 4 | 01550-08207 BOLT
SKU: 01550-08207 Weight: 0.060000 Brand: Price: $ 2.74 |
BOLT | 2 | $ 2.74 | ||
| 5 | 01550-08457 BOLT
SKU: 01550-08457 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT | 2 | $ 3.48 | ||
| 6 | 31100-87J00 Starter Motor Assembly
SKU: 31100-87J00 Weight: 8.000000 Brand: Price: $ 960.93 |
Starter Motor Assembly | 1 | $ 960.93 | ||
| 7 | 31312-87J00 Pinion Stopper Set (NLA)
SKU: 31312-87J00 Weight: 0.100000 Brand: Price: $ 15.68 |
Pinion Stopper Set (NLA) | 1 | $ 15.68 | ||
| 8 | 31320-87J00 Pinion Assembly (NLA)
SKU: 31320-87J00 Weight: 0.100000 Brand: Price: $ 224.23 |
Pinion Assembly (NLA) | 1 | $ 224.23 | ||
| 9 | 31310-99E00 Armature (NLA)
SKU: 31310-99E00 Weight: 5.000000 Brand: Price: $ 315.01 |
Armature (NLA) | 1 | $ 315.01 | ||
| 10 | 31360-99E10 Washer Kit (NLA)
SKU: 31360-99E10 Weight: 0.100000 Brand: Price: $ 6.81 |
Washer Kit (NLA) | 1 | $ 6.81 | ||
| 11 | 31131-99E00 Brush (+)
SKU: 31131-99E00 Weight: 0.060000 Brand: Price: $ 25.72 |
Brush (+) | 1 | $ 25.72 | ||
| 12 | 31135-99E00 Spring
SKU: 31135-99E00 Weight: 0.060000 Brand: Price: $ 4.52 |
Spring | 2 | $ 4.52 | ||
| 13 | 31173-99E00 Brush Holder
SKU: 31173-99E00 Weight: 0.100000 Brand: Price: $ 126.57 |
Brush Holder | 1 | $ 126.57 | Includes Brush (-) | |
| 14 | 31281-94510 Through Bolt
SKU: 31281-94510 Weight: 0.200000 Brand: Price: $ 15.49 |
Through Bolt | 2 | $ 15.49 | ||
| 15 | 31911-99E00 Starting Motor Bracket (NLA)
SKU: 31911-99E00 Weight: 0.100000 Brand: Price: $ 38.79 |
Starting Motor Bracket (NLA) | 1 | $ 38.79 | ||
| 16 | 31912-99E01 Starting Motor Band (NLA)
SKU: 31912-99E01 Weight: 0.100000 Brand: Price: $ 6.73 |
Starting Motor Band (NLA) | 1 | $ 6.73 | ||
| 17 | 31918-94600 Lower Damper (NLA)
SKU: 31918-94600 Weight: 0.100000 Brand: Price: $ 7.01 |
Lower Damper (NLA) | 1 | $ 7.01 | ||
| 18 | 31800-94401 Starter Relay
SKU: 31800-94401 Weight: 0.340000 Brand: Price: $ 140.18 |
Starter Relay | 1 | $ 140.18 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
