Suzuki DF 60 Parts Listings - 1999
S/N 06001F-971961 to 06001F-97XXXX

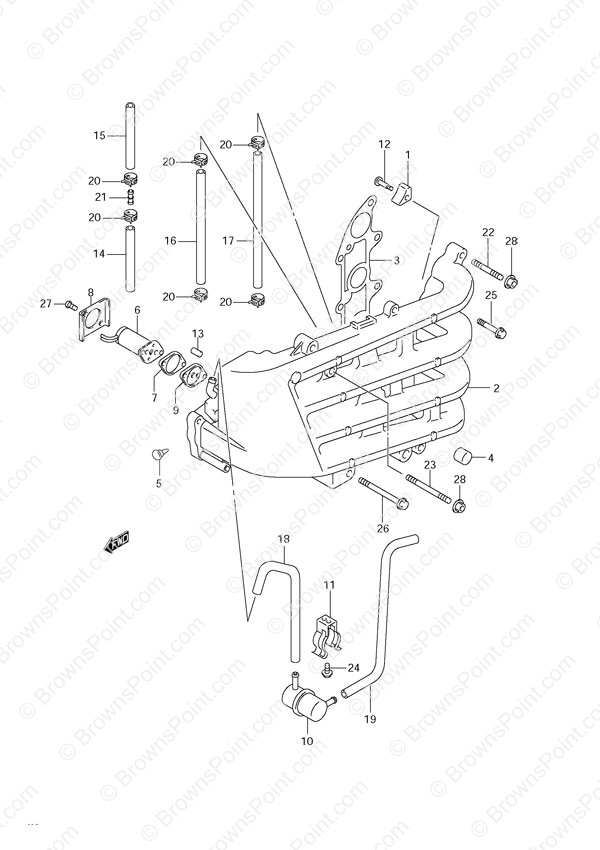

Fig. 8 - Inlet Manifold (S/N 971961 to 97XXXX)
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11281-94400 Zinc Anode
SKU: 11281-94400 Weight: 0.100000 Brand: Price: $ 3.13 |
Zinc Anode | 2 | $ 3.13 | ||
| 2 | 13110-99E01 Inlet Manifold (NLA)
SKU: 13110-99E01 Weight: 1.000000 Brand: Price: $ 353.62 |
Inlet Manifold (NLA) | 1 | $ 353.62 | ||
| 3 | 13119-99E00 Intake Manifold Gasket
SKU: 13119-99E00 Weight: 0.140000 Brand: Price: $ 25.34 |
Intake Manifold Gasket | 1 | $ 25.34 | ||
| 4 | 09329-12004 Cushion
SKU: 09329-12004 Weight: 0.060000 Brand: Price: $ 2.67 |
Cushion | 3 | $ 2.67 | ||
| 5 | 13350-99E00 Bypass Air Screw Set
SKU: 13350-99E00 Weight: 0.060000 Brand: Price: $ 8.78 |
Bypass Air Screw Set | 1 | $ 8.78 | ||
| 6 | 13450-99E01 IAC Solenoid
SKU: 13450-99E01 Weight: 0.360000 Brand: Price: $ 152.15 |
IAC Solenoid | 1 | $ 152.15 | ||
| 7 | 13452-61A00 IAC Flange
SKU: 13452-61A00 Weight: 0.060000 Brand: Price: $ 11.35 |
IAC Flange | 1 | $ 11.35 | ||
| 8 | 13453-61A00 IAC Holder (NLA)
SKU: 13453-61A00 Weight: 0.100000 Brand: Price: $ 22.36 |
IAC Holder (NLA) | 1 | $ 22.36 | ||
| 9 | 13451-99E00 IAC Rubber Seat
SKU: 13451-99E00 Weight: 0.060000 Brand: Price: $ 4.47 |
IAC Rubber Seat | 1 | $ 4.47 | ||
| 10 | 18145-84380 IAC Valve Silencer
SKU: 18145-84380 Weight: 0.060000 Brand: Price: $ 13.03 |
IAC Valve Silencer | 1 | $ 13.03 | ||
| 11 | 18146-84380 Silencer Clamp (NLA)
SKU: 18146-84380 Weight: 0.100000 Brand: Price: $ 3.33 |
Silencer Clamp (NLA) | 1 | $ 3.33 | ||
| 12 | 09126-06005 Screw (6x30)
SKU: 09126-06005 Weight: 0.060000 Brand: Price: $ 2.12 |
Screw (6x30) | 2 | $ 2.12 | ||
| 13 | 09202-07006 PIN (7X10)
SKU: 09202-07006 Weight: 0.100000 Brand: Price: $ 1.37 |
PIN (7X10) | 2 | $ 1.37 | ||
| 14 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->200 2 Way to Separator 2001 | |
| 15 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->200 Holder to 2 Way 2001 | |
| 16 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->400 Holder to Separator 2000 Older | |
| 17 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 1 | $ 7.60 | L:600->470 Separator to Oil Pan | |
| 18 | 09352-70121-600 Hose (7x12.1x600)
SKU: 09352-70121-600 Weight: 0.250000 Brand: Price: $ 11.26 |
Hose (7x12.1x600) | 1 | $ 11.26 | L:600->440 Inlet Manifold to IAC | |
| 19 | 09352-70121-00B Hose (7x12.1x2000)
SKU: 09352-70121-00B Weight: 0.100000 Brand: Price: $ 28.47 |
Hose (7x12.1x2000) | 1 | $ 28.47 | L:2000->620 Silencer | |
| 20 | 09401-08411 Clip
SKU: 09401-08411 Weight: 0.060000 Brand: Price: $ 1.78 |
Clip | 4 | $ 1.78 | ||
| 22 | 01421-08357 BOLT,STUD
SKU: 01421-08357 Weight: 0.060000 Brand: Price: $ 4.62 |
BOLT,STUD | 2 | $ 4.62 | ||
| 23 | 01421-08457 BOLT, STUD
SKU: 01421-08457 Weight: 0.125000 Brand: Price: $ 4.92 |
BOLT, STUD | 1 | $ 4.92 | ||
| 24 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 25 | 01550-08407 BOLT 8 X 40
SKU: 01550-08407 Weight: 0.060000 Brand: Price: $ 3.48 |
BOLT 8 X 40 | 7 | $ 3.48 | ||
| 26 | 01550-08757 BOLT
SKU: 01550-08757 Weight: 0.080000 Brand: Price: $ 4.05 |
BOLT | 1 | $ 4.05 | ||
| 27 | 02112-05167 SCREW
SKU: 02112-05167 Weight: 0.060000 Brand: Price: $ 1.97 |
SCREW | 2 | $ 1.97 | ||
| 28 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.27 |
Nut | 3 | $ 2.27 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
