Suzuki DF 60 Parts Listings - 1999
S/N 06001F-971001 to 06001F-97XXXX

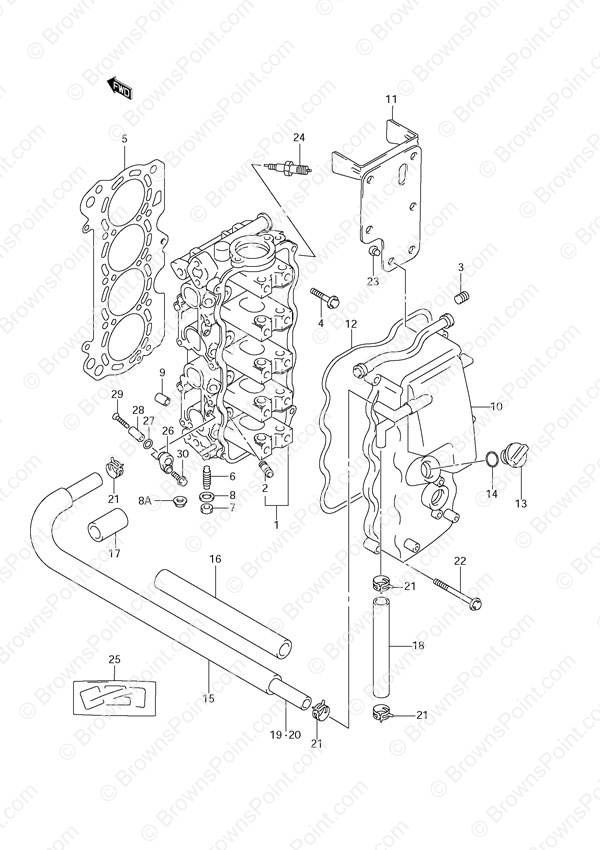

Fig. 1 - Cylinder Head
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 11100-99E07 Cylinder Head
SKU: 11100-99E07 Weight: 27.000000 Brand: Price: $ 2,347.64 |
Cylinder Head | 1 | $ 2,347.64 | Includes Ref# 2 3 Requires: Ref# 26 Ref# 27 Ref# 28 Ref# 29 Ref# 30 | |
| 2 | 11115-82000-001 Valve Guide (NLA)
SKU: 11115-82000-001 Weight: 0.100000 Brand: Price: $ 15.56 |
Valve Guide (NLA) | 8 | $ 15.56 | ||
| 3 | 11112-99E00 Oil Venturi Plug (NLA)
SKU: 11112-99E00 Weight: 0.100000 Brand: Price: $ 2.30 |
Oil Venturi Plug (NLA) | 1 | $ 2.30 | ||
| 4 | 11119-82000 Cylinder Head Bolt
SKU: 11119-82000 Weight: 0.200000 Brand: Price: $ 7.22 |
Cylinder Head Bolt | 10 | $ 7.22 | ||
| 5 | 11141-99E01 Cylinder Head Gasket
SKU: 11141-99E01 Weight: 0.300000 Brand: Price: $ 75.78 |
Cylinder Head Gasket | 1 | $ 75.78 | ||
| 6 | 09108-08137 Stud Bolt (8x40)
SKU: 09108-08137 Weight: 0.200000 Brand: Price: $ 5.23 |
Stud Bolt (8x40) | 2 | $ 5.23 | ||
| 7 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 8 | 09160-08082 Washer (8.5x16x1.2)
SKU: 09160-08082 Weight: 0.060000 Brand: Price: $ 1.63 |
Washer (8.5x16x1.2) | 2 | $ 1.63 | ||
| 9 | 04211-13189 PIN
SKU: 04211-13189 Weight: 0.060000 Brand: Price: $ 2.21 |
PIN | 2 | $ 2.21 | ||
| 10 | 11100-99800-019 Cylinder Head Cover Set (NLA)
SKU: 11100-99800-019 Weight: 27.000000 Brand: Price: $ 241.69 |
Cylinder Head Cover Set (NLA) | 1 | $ 241.69 | ||
| 11 | 11173-99E01 Breather Plate
SKU: 11173-99E01 Weight: 0.200000 Brand: Price: $ 11.97 |
Breather Plate | 1 | $ 11.97 | ||
| 12 | 11189-99E00 Cylinder Head Cover Gasket
SKU: 11189-99E00 Weight: 0.060000 Brand: Price: $ 18.67 |
Cylinder Head Cover Gasket | 1 | $ 18.67 | ||
| 13 | 11382-99E00 Oil Filler Cap
SKU: 11382-99E00 Weight: 0.060000 Brand: Price: $ 7.28 |
Oil Filler Cap | 1 | $ 7.28 | ||
| 14 | 09280-26006 O-Ring
SKU: 09280-26006 Weight: 0.060000 Brand: Price: $ 2.80 |
O-Ring | 1 | $ 2.80 | ||
| 15 | 18498-90J20 Breather Hose Protector *
SKU: 18498-90J20 Weight: 0.160000 Brand: Price: $ 9.89 |
Breather Hose Protector * | 1 | $ 9.89 | ||
| 16 | 18498-90J20 Breather Hose Protector *
SKU: 18498-90J20 Weight: 0.160000 Brand: Price: $ 9.89 |
Breather Hose Protector * | 1 | $ 9.89 | ||
| 17 | 18498-90J20 Breather Hose Protector *
SKU: 18498-90J20 Weight: 0.160000 Brand: Price: $ 9.89 |
Breather Hose Protector * | 1 | $ 9.89 | ||
| 18 | 09355-13207-600 Hose (13x20x600) (NLA)
SKU: 09355-13207-600 Weight: 0.100000 Brand: Price: $ 17.14 |
Hose (13x20x600) (NLA) | 1 | $ 17.14 | L:600->440 S/N 971001 to 971543 | |
| 19 | 09355-13207-00B Breather Hose
SKU: 09355-13207-00B Weight: 12.000000 Brand: Price: $ 65.02 |
Breather Hose | 1 | $ 65.02 | L:2000->700 | |
| 21-1 | 09401-20406 Clip (NLA)
SKU: 09401-20406 Weight: 0.100000 Brand: Price: $ 2.85 |
Clip (NLA) | 4 | $ 2.85 | S/N 971001 to 971543 | |
| 21-2 | 09401-20409 Clip
SKU: 09401-20409 Weight: 0.060000 Brand: Price: $ 3.71 |
Clip | 2 | $ 3.71 | S/N 971544 to 97XXXX | |
| 22 | 01550-06357 BOLT
SKU: 01550-06357 Weight: 0.060000 Brand: Price: $ 2.82 |
BOLT | 6 | $ 2.82 | ||
| 23 | 02112-0508A SCREW
SKU: 02112-0508A Weight: 0.100000 Brand: Price: $ 1.44 |
SCREW | 6 | $ 1.44 | ||
| 24 | 09482-00299 NGK BPR6ES Spark Plug
SKU: 09482-00299 Weight: 0.187500 Brand: Price: $ 3.76 |
NGK BPR6ES Spark Plug | 4 | $ 3.76 | ||
| 25 | 11400-99803 Engine Gasket Set (NLA)
SKU: 11400-99803 Weight: 0.800000 Brand: Price: $ 221.81 |
Engine Gasket Set (NLA) | 1 | $ 221.81 | ||
| 26 | 11261-99E00 Protection Anode Cover
SKU: 11261-99E00 Weight: 0.060000 Brand: Price: $ 17.40 |
Protection Anode Cover | 2 | $ 17.40 | 2004 to 2006 | |
| 27 | 09280-10013 O-Ring
SKU: 09280-10013 Weight: 0.060000 Brand: Price: $ 3.76 |
O-Ring | 2 | $ 3.76 | 2004 to 2006 | |
| 28 | 55321-99E00 Protection Anode
SKU: 55321-99E00 Weight: 0.060000 Brand: Price: $ 10.90 |
Protection Anode | 2 | $ 10.90 | 2004 to 2006 | |
| 29 | 09126-05010 Protection Anode Screw
SKU: 09126-05010 Weight: 0.060000 Brand: Price: $ 2.08 |
Protection Anode Screw | 2 | $ 2.08 | 2004 to 2006 | |
| 30 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | 2004 to 2006 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
