Suzuki DF 60 Parts Listings - 1998
S/N 06001F-861001 to 06001F-86XXXX

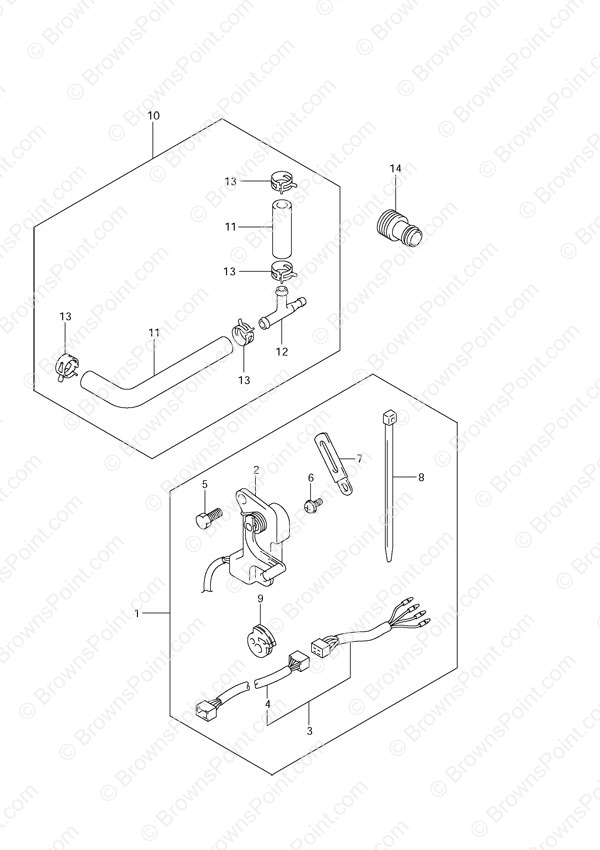

Fig. 62 - Opt: Trim Sender
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 34804-94711 Trim Sender Set
SKU: 34804-94711 Weight: 1.000000 Brand: Price: $ 295.79 |
Trim Sender Set | 1 | $ 295.79 | 4-Wire | |
| 2 | 34801-94710 Trim Sender
SKU: 34801-94710 Weight: 1.000000 Brand: Price: $ 284.37 |
Trim Sender | 1 | $ 284.37 | ||
| 3 | 36680-92E00 Trim Meter Wire Assembly (NLA)
SKU: 36680-92E00 Weight: 1.000000 Brand: Price: $ 75.02 |
Trim Meter Wire Assembly (NLA) | 1 | $ 75.02 | L:7000 | |
| 4 | 36682-92E00 Wire Harness
SKU: 36682-92E00 Weight: 1.000000 Brand: Price: $ 82.25 |
Wire Harness | 1 | $ 82.25 | L:6500 | |
| 5 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 2 | $ 2.33 | ||
| 6 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 1 | $ 1.96 | ||
| 8-1 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | ||
| 8-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | ||
| 9 | 36658-95600 Cable Grommet (NLA)
SKU: 36658-95600 Weight: 0.100000 Brand: Price: $ 5.94 |
Cable Grommet (NLA) | 1 | $ 5.94 | ||
| 10 | 34660-99E00 DF60/DF70 Water Pressure Gauge Install Kit*
SKU: 34660-99E00 Weight: 0.100000 Brand: Price: $ 6.31 |
DF60/DF70 Water Pressure Gauge Install Kit* | 1 | $ 6.31 | ||
| 11 | 09352-50006-600 Hose (5x9x600)
SKU: 09352-50006-600 Weight: 0.250000 Brand: Price: $ 7.60 |
Hose (5x9x600) | 2 | $ 7.60 | L:600->110 L:600->30 | |
| 12 | 09367-06006 3 Way
SKU: 09367-06006 Weight: 0.060000 Brand: Price: $ 4.09 |
3 Way | 1 | $ 4.09 | ||
| 13 | 09401-08413 Clip
SKU: 09401-08413 Weight: 0.060000 Brand: Price: $ 2.09 |
Clip | 4 | $ 2.09 | ||
| 14 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
