Suzuki DF 60 Parts Listings - 1998
S/N 06001F-861001 to 06001F-86XXXX

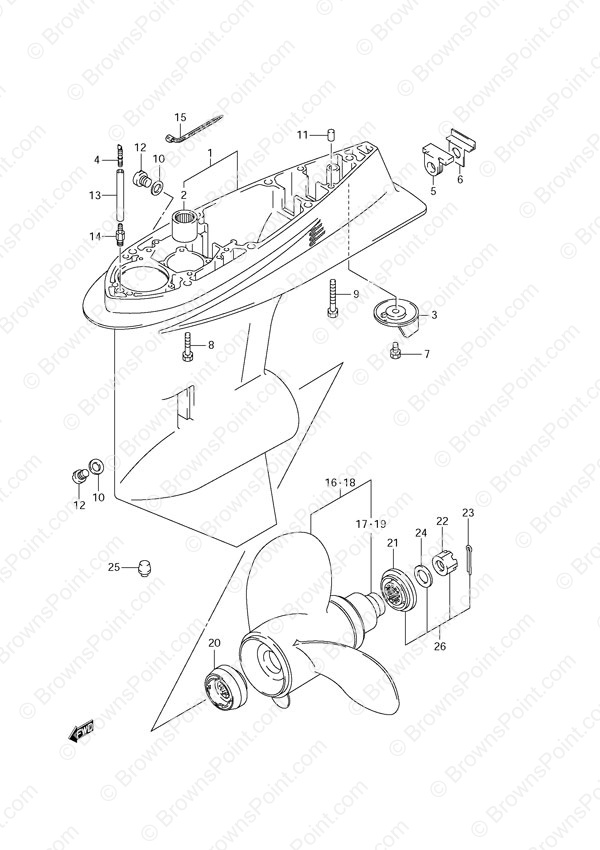

Fig. 43 - Gear Case
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 55110-99E02-0EP Gear Case Housing (NLA)
SKU: 55110-99E02-0EP Weight: 50.000000 Brand: Price: $ 1,248.26 |
Gear Case Housing (NLA) | 1 | $ 1,248.26 | ||
| 2 | 09263-26023 Bearing (26x34x30)
SKU: 09263-26023 Weight: 0.125000 Brand: Price: $ 84.31 |
Bearing (26x34x30) | 1 | $ 84.31 | ||
| 3 | 55125-87E01 Zinc Anode Trim Tab
SKU: 55125-87E01 Weight: 0.420000 Brand: Price: $ 23.04 |
Zinc Anode Trim Tab | 1 | $ 23.04 | ||
| 4 | 55127-87D00 Hose Union
SKU: 55127-87D00 Weight: 0.060000 Brand: Price: $ 3.83 |
Hose Union | 1 | $ 3.83 | ||
| 5 | 55332-87D01 Exhaust Seal Rubber
SKU: 55332-87D01 Weight: 0.060000 Brand: Price: $ 7.95 |
Exhaust Seal Rubber | 1 | $ 7.95 | ||
| 6 | 55333-87D02 Exhuast Seal Plate (NLA)
SKU: 55333-87D02 Weight: 0.080000 Brand: Price: $ 7.05 |
Exhuast Seal Plate (NLA) | 1 | $ 7.05 | ||
| 7 | 09116-08137 Bolt (8x22)
SKU: 09116-08137 Weight: 0.060000 Brand: Price: $ 7.44 |
Bolt (8x22) | 1 | $ 7.44 | ||
| 8 | 09116-10150 Bolt (10x55)
SKU: 09116-10150 Weight: 0.200000 Brand: Price: $ 15.95 |
Bolt (10x55) | 6 | $ 15.95 | ||
| 9 | 09117-10039 Bolt (10x80)
SKU: 09117-10039 Weight: 0.120000 Brand: Price: $ 11.20 |
Bolt (10x80) | 1 | $ 11.20 | ||
| 10 | 09168-10022 Drain Plug Gasket
SKU: 09168-10022 Weight: 0.060000 Brand: Price: $ 1.60 |
Drain Plug Gasket | 2 | $ 1.60 | ||
| 11 | 09202-08006 Knock Pin (8x12)
SKU: 09202-08006 Weight: 0.060000 Brand: Price: $ 2.77 |
Knock Pin (8x12) | 2 | $ 2.77 | ||
| 12 | 09248-10008 Drain Plug
SKU: 09248-10008 Weight: 0.060000 Brand: Price: $ 6.59 |
Drain Plug | 2 | $ 6.59 | ||
| 13 | 09355-40805-600 Hose (4x8x600)
SKU: 09355-40805-600 Weight: 0.250000 Brand: Price: $ 9.81 |
Hose (4x8x600) | 1 | $ 9.81 | L:600->70 | |
| 14 | 09362-09008 Nipple
SKU: 09362-09008 Weight: 0.060000 Brand: Price: $ 2.92 |
Nipple | 1 | $ 2.92 | ||
| 15 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 3 | $ 3.09 | ||
| 18-1 | 58100-94500-019 V1500 Propeller 3x13-1/2x15
SKU: 58100-94500-019 Weight: 10.000000 Brand: Price: $ 242.32 |
V1500 Propeller 3x13-1/2x15 | 1 | $ 242.32 | 15" Pitch | |
| 18-2 | 58100-94512-019 V1700 Propeller 3x13-3/4x17
SKU: 58100-94512-019 Weight: 10.000000 Brand: Price: $ 242.32 |
V1700 Propeller 3x13-3/4x17 | 1 | $ 242.32 | 17" Pitch | |
| 18-3 | 58100-94522-019 V1900 Propeller 3x13x19
SKU: 58100-94522-019 Weight: 10.000000 Brand: Price: $ 266.55 |
V1900 Propeller 3x13x19 | 1 | $ 266.55 | 19" Pitch | |
| 18-4 | 58100-94532-019 V2100 Propeller 3x13x21
SKU: 58100-94532-019 Weight: 10.000000 Brand: Price: $ 235.26 |
V2100 Propeller 3x13x21 | 1 | $ 235.26 | 21" Pitch | |
| 19 | 58120-94520 Propeller Bushing (NLA)
SKU: 58120-94520 Weight: 1.120000 Brand: Price: $ 59.60 |
Propeller Bushing (NLA) | 1 | $ 59.60 | ||
| 20 | 57632-87E00 Propeller Stopper Bushing (NLA)
SKU: 57632-87E00 Weight: 0.460000 Brand: Price: $ 70.54 |
Propeller Stopper Bushing (NLA) | 1 | $ 70.54 | ||
| 21 | 57633-94500 Propeller Nut Spacer
SKU: 57633-94500 Weight: 0.320000 Brand: Price: $ 28.04 |
Propeller Nut Spacer | 1 | $ 28.04 | ||
| 22 | 09141-18005 Nut (18mm)
SKU: 09141-18005 Weight: 0.140000 Brand: Price: $ 10.32 |
Nut (18mm) | 1 | $ 10.32 | ||
| 23 | 09204-03003 Prop Nut Cotter Pin
SKU: 09204-03003 Weight: 0.060000 Brand: Price: $ 2.44 |
Prop Nut Cotter Pin | 1 | $ 2.44 | ||
| 24 | 09160-18028 Washer (18.5x31x1.0)
SKU: 09160-18028 Weight: 0.060000 Brand: Price: $ 3.69 |
Washer (18.5x31x1.0) | 1 | $ 3.69 | ||
| 25 | 55116-87E00 Gear Case Plug
SKU: 55116-87E00 Weight: 0.100000 Brand: Price: $ 39.04 |
Gear Case Plug | 1 | $ 39.04 | Optional | |
| 26 | 57630-94500 Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 V-Style
SKU: 57630-94500 Weight: 0.500000 Brand: Price: $ 34.42 |
Propeller Hardware Kit DT75 / DT85 / DT90 / DT100 / DT115 / DT140/DF60 / DF70 V-Style | 1 | $ 34.42 | Optional | |
| 27 | 25700-87E00 Gear Case Seal Kit DF60 / DF70 & DT90 / DT100
SKU: 25700-87E00 Weight: 0.180000 Brand: Price: $ 32.39 |
Gear Case Seal Kit DF60 / DF70 & DT90 / DT100 | 1 | $ 32.39 | Opt: Not Shown |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
