Suzuki DF 60 Parts Listings - 1998
S/N 06001F-861001 to 06001F-86XXXX

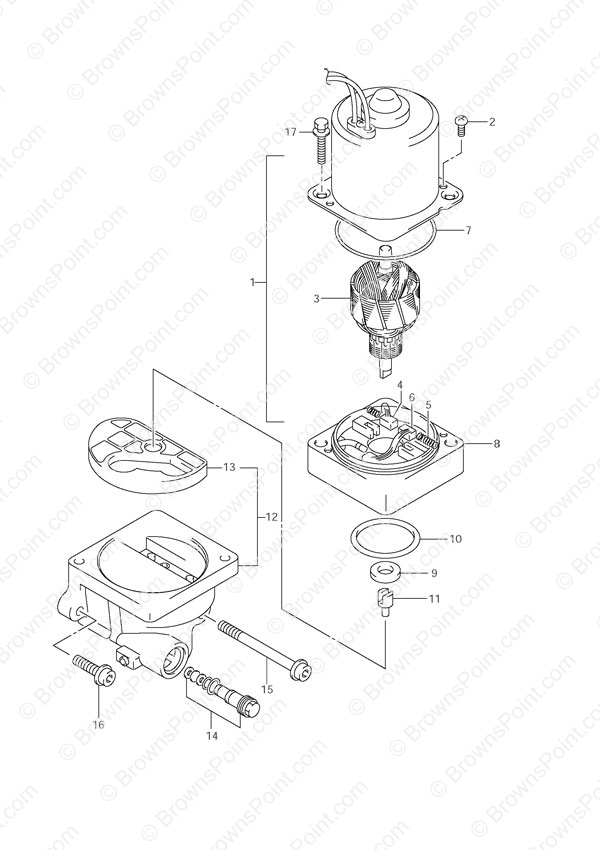

Fig. 39 - Power Unit
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 38100-99E01-0EP PTT Motor Assembly
SKU: 38100-99E01-0EP Weight: 3.200000 Brand: Price: $ 882.26 |
PTT Motor Assembly | 1 | $ 882.26 | ||
| 2 | 31111-94900 Yoke Screw
SKU: 31111-94900 Weight: 0.060000 Brand: Price: $ 4.39 |
Yoke Screw | 2 | $ 4.39 | ||
| 3 | 31311-94900 Armature (NLA)
SKU: 31311-94900 Weight: 5.000000 Brand: Price: $ 311.55 |
Armature (NLA) | 1 | $ 311.55 | ||
| 4 | 31133-94910 Brush
SKU: 31133-94910 Weight: 0.060000 Brand: Price: $ 12.57 |
Brush | 1 | $ 12.57 | ||
| 5 | 31135-94900 Spring
SKU: 31135-94900 Weight: 0.060000 Brand: Price: $ 5.02 |
Spring | 2 | $ 5.02 | ||
| 6 | 31136-94900 Breaker (NLA)
SKU: 31136-94900 Weight: 0.060000 Brand: Price: $ 64.19 |
Breaker (NLA) | 1 | $ 64.19 | ||
| 7 | 31123-87D60 O-Ring
SKU: 31123-87D60 Weight: 0.060000 Brand: Price: $ 12.85 |
O-Ring | 1 | $ 12.85 | ||
| 8 | 31173-94920 Brush Holder Assembly
SKU: 31173-94920 Weight: 1.000000 Brand: Price: $ 339.85 |
Brush Holder Assembly | 1 | $ 339.85 | ||
| 9 | 33799-97E00 Oil Seal
SKU: 33799-97E00 Weight: 0.060000 Brand: Price: $ 23.27 |
Oil Seal | 1 | $ 23.27 | ||
| 10 | 48585-95E00 O-Ring
SKU: 48585-95E00 Weight: 0.060000 Brand: Price: $ 3.96 |
O-Ring | 1 | $ 3.96 | ||
| 11 | 48583-95E00 Drive Joint
SKU: 48583-95E00 Weight: 0.060000 Brand: Price: $ 11.21 |
Drive Joint | 1 | $ 11.21 | ||
| 12 | 48502-94901 PTT Pump Assembly
SKU: 48502-94901 Weight: 1.500000 Brand: Price: $ 449.36 |
PTT Pump Assembly | 1 | $ 449.36 | ||
| 13 | 48582-95E01 Filter
SKU: 48582-95E01 Weight: 0.060000 Brand: Price: $ 38.93 |
Filter | 1 | $ 38.93 | ||
| 14 | 48864-94911 Manual Valve Set
SKU: 48864-94911 Weight: 0.250000 Brand: Price: $ 140.40 |
Manual Valve Set | 1 | $ 140.40 | ||
| 15 | 48862-95E00 Bolt
SKU: 48862-95E00 Weight: 0.100000 Brand: Price: $ 11.40 |
Bolt | 1 | $ 11.40 | ||
| 16 | 48862-95E10 Bolt
SKU: 48862-95E10 Weight: 0.060000 Brand: Price: $ 13.20 |
Bolt | 3 | $ 13.20 | ||
| 17 | 31281-95E00 Through Bolt
SKU: 31281-95E00 Weight: 0.060000 Brand: Price: $ 8.95 |
Through Bolt | 2 | $ 8.95 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
