Suzuki DF 60 Parts Listings - 1998
S/N 06001F-861001 to 06001F-86XXXX

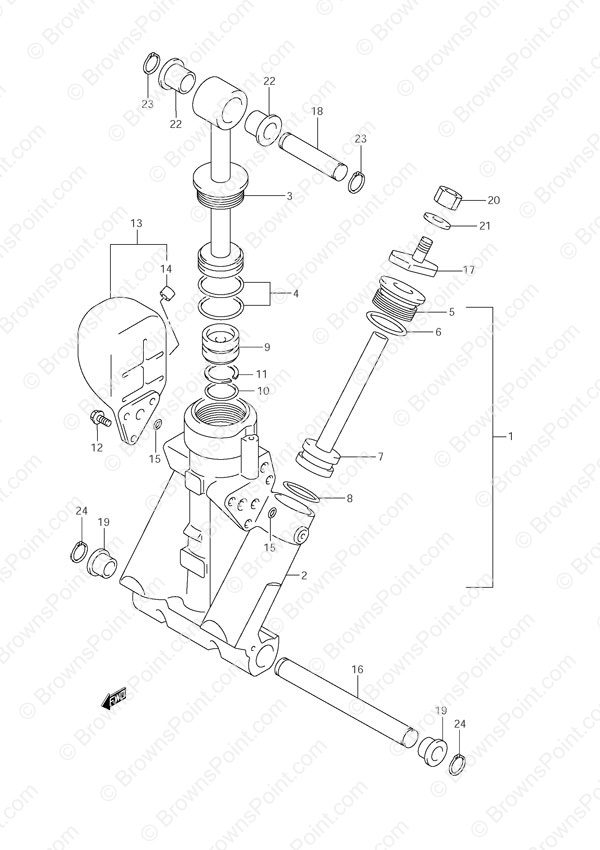

Fig. 37 - Trim Cylinder
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 48503-94900-0EP Manifold Sub Assembly (NLA)
SKU: 48503-94900-0EP Weight: 10.000000 Brand: Price: $ 2,558.63 |
Manifold Sub Assembly (NLA) | 1 | $ 2,558.63 | ||
| 2 | 48641-94900-0EP PTT Manifold (NLA)
SKU: 48641-94900-0EP Weight: 0.100000 Brand: Price: $ 881.87 |
PTT Manifold (NLA) | 1 | $ 881.87 | ||
| 3 | 48401-94900 Piston Assembly (NLA)
SKU: 48401-94900 Weight: 2.500000 Brand: Price: $ 294.78 |
Piston Assembly (NLA) | 1 | $ 294.78 | ||
| 4 | 48627-95E00 O-Ring Set
SKU: 48627-95E00 Weight: 0.060000 Brand: Price: $ 7.63 |
O-Ring Set | 1 | $ 7.63 | ||
| 5 | 48630-94900 Trim Cylinder Head
SKU: 48630-94900 Weight: 0.250000 Brand: Price: $ 62.50 |
Trim Cylinder Head | 2 | $ 62.50 | ||
| 6 | 48633-94900 O-Ring Set (Pack of 2)
SKU: 48633-94900 Weight: 0.060000 Brand: Price: $ 5.49 |
O-Ring Set (Pack of 2) | 2 | $ 5.49 | ||
| 7 | 48601-94900 Piston & Ram Assembly
SKU: 48601-94900 Weight: 1.000000 Brand: Price: $ 229.26 |
Piston & Ram Assembly | 2 | $ 229.26 | ||
| 8 | 48627-95E00 O-Ring Set
SKU: 48627-95E00 Weight: 0.060000 Brand: Price: $ 7.63 |
O-Ring Set | 2 | $ 7.63 | ||
| 9 | 48650-94900 Free Piston
SKU: 48650-94900 Weight: 0.260000 Brand: Price: $ 79.39 |
Free Piston | 1 | $ 79.39 | ||
| 10 | 48405-87D00 Tilt O-Ring Set
SKU: 48405-87D00 Weight: 0.060000 Brand: Price: $ 5.35 |
Tilt O-Ring Set | 1 | $ 5.35 | ||
| 11 | 48615-97E00 Piston Ring Set
SKU: 48615-97E00 Weight: 0.060000 Brand: Price: $ 8.46 |
Piston Ring Set | 1 | $ 8.46 | ||
| 12 | 48861-95E00 Reservoir Bolt (NLA)
SKU: 48861-95E00 Weight: 0.100000 Brand: Price: $ 7.86 |
Reservoir Bolt (NLA) | 3 | $ 7.86 | ||
| 13 | 48570-95E01 Reservoir Assembly
SKU: 48570-95E01 Weight: 0.340000 Brand: Price: $ 174.79 |
Reservoir Assembly | 1 | $ 174.79 | ||
| 14 | 48572-95E00 Cap
SKU: 48572-95E00 Weight: 0.060000 Brand: Price: $ 19.06 |
Cap | 1 | $ 19.06 | ||
| 15 | 48588-94900 O-Ring (Pack of 6)
SKU: 48588-94900 Weight: 0.060000 Brand: Price: $ 4.95 |
O-Ring (Pack of 6) | 6 | $ 4.95 | ||
| 16 | 48121-95E00 Tilt Cylinder Shaft (NLA)
SKU: 48121-95E00 Weight: 1.400000 Brand: Price: $ 75.20 |
Tilt Cylinder Shaft (NLA) | 1 | $ 75.20 | ||
| 17 | 48311-94501 Trim Cylinder Ram Pad
SKU: 48311-94501 Weight: 0.200000 Brand: Price: $ 49.72 |
Trim Cylinder Ram Pad | 2 | $ 49.72 | ||
| 18 | 48321-87D03 Tilt Cylinder Upper Shaft
SKU: 48321-87D03 Weight: 0.500000 Brand: Price: $ 23.89 |
Tilt Cylinder Upper Shaft | 1 | $ 23.89 | ||
| 19 | 48326-95E00 Tilt Cylinder Lower Bushing
SKU: 48326-95E00 Weight: 0.060000 Brand: Price: $ 5.18 |
Tilt Cylinder Lower Bushing | 2 | $ 5.18 | ||
| 20 | 09140-08023-XC0 Nut (8mm)
SKU: 09140-08023-XC0 Weight: 0.060000 Brand: Price: $ 2.52 |
Nut (8mm) | 2 | $ 2.52 | ||
| 21 | 09162-08007 Lock Washer (8.2x15.4x2.0)
SKU: 09162-08007 Weight: 0.060000 Brand: Price: $ 1.49 |
Lock Washer (8.2x15.4x2.0) | 2 | $ 1.49 | ||
| 22 | 09306-17001 Bushing
SKU: 09306-17001 Weight: 0.060000 Brand: Price: $ 2.81 |
Bushing | 2 | $ 2.81 | ||
| 23 | 09380-17009 Circlip
SKU: 09380-17009 Weight: 0.060000 Brand: Price: $ 2.07 |
Circlip | 2 | $ 2.07 | ||
| 24 | 09380-22015 Circlip
SKU: 09380-22015 Weight: 0.060000 Brand: Price: $ 3.96 |
Circlip | 2 | $ 3.96 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
