Suzuki DF 60 Parts Listings - 1998
S/N 06001F-861001 to 06001F-86XXXX

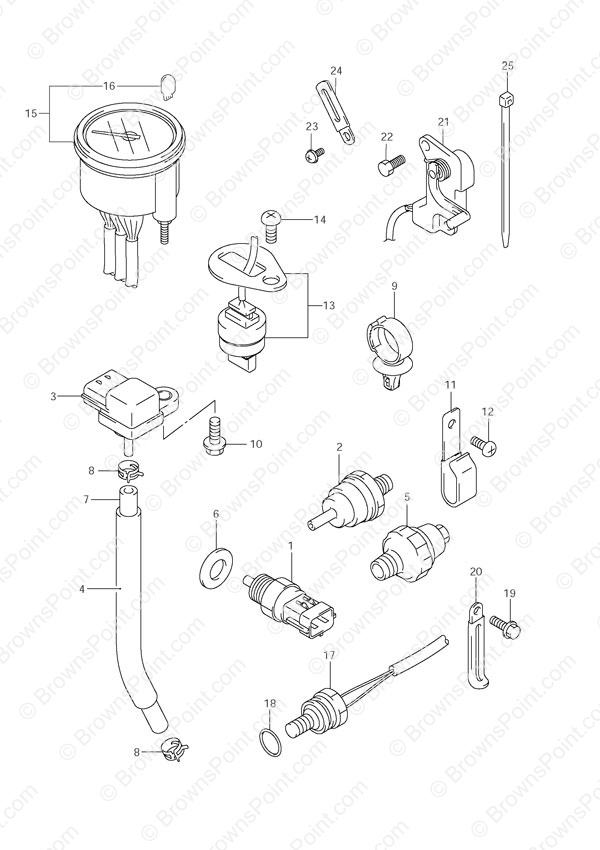

Fig. 32 - Sensor
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 13650-56B00 Inlet Air Sensor
SKU: 13650-56B00 Weight: 0.200000 Brand: Price: $ 82.70 |
Inlet Air Sensor | 1 | $ 82.70 | ||
| 2 | 18133-61A01 Gas Filter
SKU: 18133-61A01 Weight: 0.100000 Brand: Price: $ 30.52 |
Gas Filter | 1 | $ 30.52 | ||
| 3 | 18590-80C40 MAP Sensor
SKU: 18590-80C40 Weight: 0.080000 Brand: Price: $ 330.56 |
MAP Sensor | 1 | $ 330.56 | ||
| 4 | 33834-99E00 Hose Protector (NLA)
SKU: 33834-99E00 Weight: 0.100000 Brand: Price: $ 1.19 |
Hose Protector (NLA) | 1 | $ 1.19 | ||
| 5 | 37820-99E02 Oil Pressure Switch
SKU: 37820-99E02 Weight: 0.125000 Brand: Price: $ 24.10 |
Oil Pressure Switch | 1 | $ 24.10 | ||
| 6 | 09168-12016 Gasket
SKU: 09168-12016 Weight: 0.100000 Brand: Price: $ 1.99 |
Gasket | 1 | $ 1.99 | ||
| 7 | 09355-35006-601 Hose (3.5x7.5x601)
SKU: 09355-35006-601 Weight: 1.000000 Brand: Price: $ 7.94 |
Hose (3.5x7.5x601) | 1 | $ 7.94 | L:601->130 | |
| 8 | 09401-06406 Clip
SKU: 09401-06406 Weight: 0.100000 Brand: Price: $ 2.26 |
Clip | 2 | $ 2.26 | ||
| 9 | 09403-20308 Clip
SKU: 09403-20308 Weight: 0.060000 Brand: Price: $ 3.61 |
Clip | 1 | $ 3.61 | ||
| 10 | 01550-06167 BOLT
SKU: 01550-06167 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 11 | 09403-17304 Clamp
SKU: 09403-17304 Weight: 0.100000 Brand: Price: $ 3.11 |
Clamp | 1 | $ 3.11 | ||
| 12 | 03542-06129 SCREW
SKU: 03542-06129 Weight: 0.100000 Brand: Price: $ 2.24 |
SCREW | 1 | $ 2.24 | ||
| 13 | 34830-92E10 Cylinder Temp Sensor
SKU: 34830-92E10 Weight: 0.060000 Brand: Price: $ 51.45 |
Cylinder Temp Sensor | 1 | $ 51.45 | ||
| 14 | 02142-06127 SCREW 6X12
SKU: 02142-06127 Weight: 0.060000 Brand: Price: $ 1.38 |
SCREW 6X12 | 1 | $ 1.38 | ||
| 15 | 34200-99E01 Tachometer (NLA)
SKU: 34200-99E01 Weight: 0.100000 Brand: Price: $ 175.60 |
Tachometer (NLA) | 1 | $ 175.60 | ||
| 16 | 09471-12179 Bulb (Red)
SKU: 09471-12179 Weight: 0.060000 Brand: Price: $ 6.52 |
Bulb (Red) | 1 | $ 6.52 | ||
| 17 | 34830-87JA0 Temp Sensor Assy
SKU: 34830-87JA0 Weight: 0.060000 Brand: Price: $ 79.78 |
Temp Sensor Assy | 1 | $ 79.78 | Exhaust Temp S/N 861477 to 861XXX | |
| 18 | 09280-09005 O-Ring
SKU: 09280-09005 Weight: 0.060000 Brand: Price: $ 3.76 |
O-Ring | 1 | $ 3.76 | For Ref# 17 | |
| 19 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | S/N 861477 to 861XXX | |
| 20 | 29404-93J11 Clamp (L:65)
SKU: 29404-93J11 Weight: 0.060000 Brand: Price: $ 1.57 |
Clamp (L:65) | 1 | $ 1.57 | S/N 861477 to 861XXX |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
