Suzuki DF 200AP Parts Listings - 2019
S/N 20003P-910001 to 20003P-91XXXX

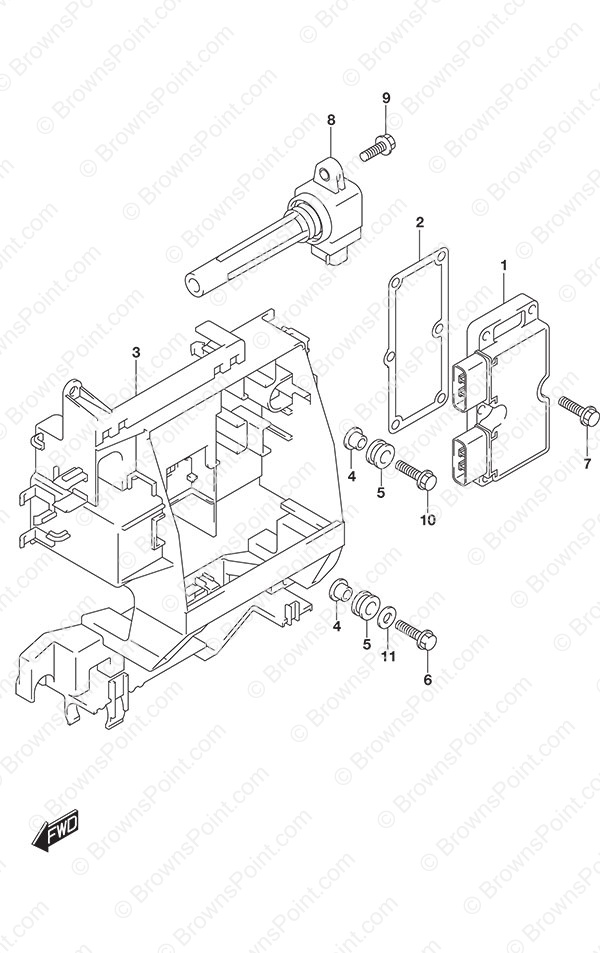

Fig. 310 - Rectifier/Ignition Coil
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 32800-96J00 Rectifier & Regulator Assembly
SKU: 32800-96J00 Weight: 0.500000 Brand: Price: $ 281.04 |
Rectifier & Regulator Assembly | 1 | $ 281.04 | ||
| 2 | 32805-96J00 Rectifier & Regulator Gasket
SKU: 32805-96J00 Weight: 0.060000 Brand: Price: $ 4.43 |
Rectifier & Regulator Gasket | 1 | $ 4.43 | ||
| 3 | 32890-96J20 Electric Parts Holder
SKU: 32890-96J20 Weight: 0.500000 Brand: Price: $ 30.00 |
Electric Parts Holder | 1 | $ 30.00 | ||
| 4 | 09169-06062 Washer (6.3x17x1.6)
SKU: 09169-06062 Weight: 0.060000 Brand: Price: $ 2.52 |
Washer (6.3x17x1.6) | 2 | $ 2.52 | ||
| 5 | 09320-09016 Cushion
SKU: 09320-09016 Weight: 0.125000 Brand: Price: $ 1.97 |
Cushion | 4 | $ 1.97 | ||
| 6 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 | ||
| 7 | 01550-06257 BOLT
SKU: 01550-06257 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 6 | $ 2.33 | ||
| 8 | 33410-96L00 Ignition Coil Assembly
SKU: 33410-96L00 Weight: 0.250000 Brand: Price: $ 126.43 |
Ignition Coil Assembly | 4 | $ 126.43 | ||
| 9 | 01550-06207 BOLT
SKU: 01550-06207 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 4 | $ 2.33 | ||
| 10 | 09116-06202 Bolt w/Washer (6x25)
SKU: 09116-06202 Weight: 0.250000 Brand: Price: $ 3.54 |
Bolt w/Washer (6x25) | 1 | $ 3.54 | ||
| 11 | 09160-06084 Washer (6.5x18x1.6)
SKU: 09160-06084 Weight: 0.060000 Brand: Price: $ 1.78 |
Washer (6.5x18x1.6) | 1 | $ 1.78 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
