Suzuki DF 175AP Parts Listings - 2019
S/N 17503P-910001 to 17503P-91XXXX

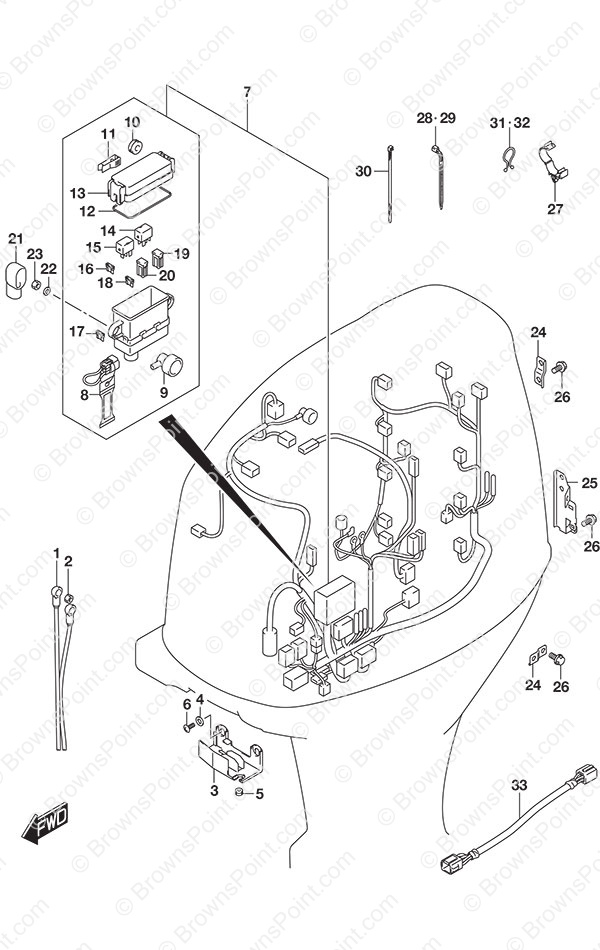

Fig. 322 - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-96L01 Starter Motor Cable Assembly
SKU: 33810-96L01 Weight: 3.000000 Brand: Price: $ 306.67 |
Starter Motor Cable Assembly | 1 | $ 306.67 | ||
| 2 | 08316-10087 Nut
SKU: 08316-10087 Weight: 0.060000 Brand: Price: $ 2.38 |
Nut | 1 | $ 2.38 | ||
| 3 | 36616-96J00 Cable Holder (NLA)
SKU: 36616-96J00 Weight: 0.100000 Brand: Price: $ 5.83 |
Cable Holder (NLA) | 1 | $ 5.83 | ||
| 4 | 09169-06053 Washer (6.3x16x1)
SKU: 09169-06053 Weight: 0.100000 Brand: Price: $ 1.18 |
Washer (6.3x16x1) | 2 | $ 1.18 | ||
| 5 | 09320-04013 Bushing
SKU: 09320-04013 Weight: 0.060000 Brand: Price: $ 1.68 |
Bushing | 2 | $ 1.68 | ||
| 6 | 02142-06167 6 X 16 CROSS SC
SKU: 02142-06167 Weight: 0.060000 Brand: Price: $ 1.45 |
6 X 16 CROSS SC | 2 | $ 1.45 | ||
| 8 | 36612-98J10 Regular Rotation Selector
SKU: 36612-98J10 Weight: 0.125000 Brand: Price: $ 15.17 |
Regular Rotation Selector | 1 | $ 15.17 | ||
| 9 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.75 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.75 | ||
| 10 | 09320-08510 Cushion (8.5x20x8)
SKU: 09320-08510 Weight: 0.060000 Brand: Price: $ 1.80 |
Cushion (8.5x20x8) | 2 | $ 1.80 | ||
| 11 | 36737-98L00 Fuse Puller
SKU: 36737-98L00 Weight: 0.060000 Brand: Price: $ 4.37 |
Fuse Puller | 1 | $ 4.37 | ||
| 12 | 36721-98L00 Upper Cover O-Ring
SKU: 36721-98L00 Weight: 0.060000 Brand: Price: $ 12.30 |
Upper Cover O-Ring | 1 | $ 12.30 | ||
| 13 | 36738-98L00 Fuse Case Upper Cover
SKU: 36738-98L00 Weight: 0.060000 Brand: Price: $ 17.45 |
Fuse Case Upper Cover | 1 | $ 17.45 | ||
| 14 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | Main | |
| 15 | 38860-76F01 Relay
SKU: 38860-76F01 Weight: 0.060000 Brand: Price: $ 38.15 |
Relay | 1 | $ 38.15 | Starter | |
| 16 | 09481-10504 10 Amp Fuse
SKU: 09481-10504 Weight: 0.060000 Brand: Price: $ 2.17 |
10 Amp Fuse | 2 | $ 2.17 | ||
| 17 | 09481-15504 15 Amp Fuse
SKU: 09481-15504 Weight: 0.060000 Brand: Price: $ 2.18 |
15 Amp Fuse | 3 | $ 2.18 | ||
| 18 | 09481-30504 30 Amp Fuse
SKU: 09481-30504 Weight: 0.060000 Brand: Price: $ 2.12 |
30 Amp Fuse | 3 | $ 2.12 | ||
| 19 | 09481-30403 30 Amp Fuse
SKU: 09481-30403 Weight: 0.060000 Brand: Price: $ 4.87 |
30 Amp Fuse | 1 | $ 4.87 | ||
| 20 | 09481-60403 60 Amp Fuse
SKU: 09481-60403 Weight: 0.060000 Brand: Price: $ 5.43 |
60 Amp Fuse | 2 | $ 5.43 | ||
| 21 | 36612-96J01 CAP,TERMINAL
SKU: 36612-96J01 Weight: 0.000000 Brand: Price: $ 5.11 |
CAP,TERMINAL | 1 | $ 5.11 | ||
| 22 | 08310-00067 Nut
SKU: 08310-00067 Weight: 0.060000 Brand: Price: $ 1.95 |
Nut | 1 | $ 1.95 | ||
| 23 | 08321-01067 Lock Washer
SKU: 08321-01067 Weight: 0.060000 Brand: Price: $ 1.95 |
Lock Washer | 1 | $ 1.95 | ||
| 24 | 36617-93J00 Harness Bracket
SKU: 36617-93J00 Weight: 0.125000 Brand: Price: $ 2.12 |
Harness Bracket | 2 | $ 2.12 | ||
| 25 | 36617-96J00 Harness Bracket (NLA)
SKU: 36617-96J00 Weight: 0.100000 Brand: Price: $ 6.48 |
Harness Bracket (NLA) | 1 | $ 6.48 | ||
| 26 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.45 |
BOLT | 4 | $ 2.45 | ||
| 27 | 09403-18409 Clamp
SKU: 09403-18409 Weight: 0.060000 Brand: Price: $ 2.02 |
Clamp | 1 | $ 2.02 | ||
| 28 | 09407-18402 Clamp (L:165)
SKU: 09407-18402 Weight: 0.060000 Brand: Price: $ 2.32 |
Clamp (L:165) | 2 | $ 2.32 | ||
| 29 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.38 |
Clamp (L:125) | 1 | $ 2.38 | ||
| 30 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.25 |
Clamp (L:140) | 4 | $ 3.25 | ||
| 31 | 09408-00008 Clamp
SKU: 09408-00008 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 2 | $ 2.25 | ||
| 32 | 09408-00012 Clamp
SKU: 09408-00012 Weight: 0.100000 Brand: Price: $ 2.25 |
Clamp | 1 | $ 2.25 | ||
| 33 | 36611-92J01 HARNESS ASSY,WI
SKU: 36611-92J01 Weight: 0.000000 Brand: Price: $ 24.71 |
HARNESS ASSY,WI | 1 | $ 24.71 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
