Suzuki DF 50A Parts Listings - 2019
S/N 05004F-910001 to 05004F-91XXXX

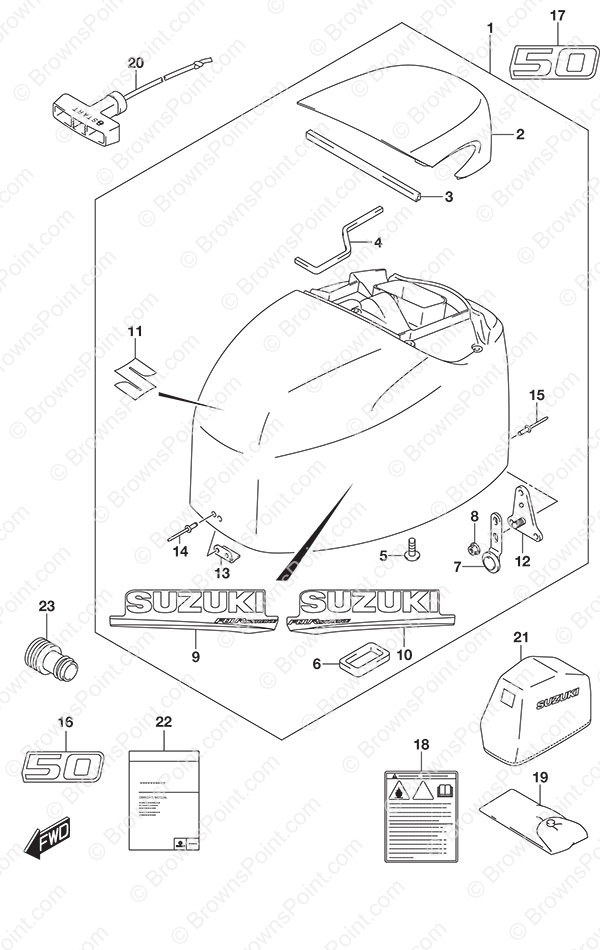

Fig. 420B - Engine Cover High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61400-88821-YAY Engine Cover Set
SKU: 61400-88821-YAY Weight: 22.000000 Brand: Price: $ 772.91 |
Engine Cover Set | 1 | $ 772.91 | ||
| 2 | 61431-88L10-YAY Tilt Up Handle
SKU: 61431-88L10-YAY Weight: 5.000000 Brand: Price: $ 84.77 |
Tilt Up Handle | 1 | $ 84.77 | ||
| 3 | 61438-88L01 Tilt Up Handle Seal No 1
SKU: 61438-88L01 Weight: 0.250000 Brand: Price: $ 6.86 |
Tilt Up Handle Seal No 1 | 1 | $ 6.86 | ||
| 4 | 61439-88L01 Tilt Up Handle Seal No 2
SKU: 61439-88L01 Weight: 0.100000 Brand: Price: $ 10.84 |
Tilt Up Handle Seal No 2 | 1 | $ 10.84 | ||
| 5 | 03542-06169 SCREW
SKU: 03542-06169 Weight: 0.060000 Brand: Price: $ 2.16 |
SCREW | 5 | $ 2.16 | ||
| 6 | 61476-88L00 Air Vent Seal
SKU: 61476-88L00 Weight: 0.250000 Brand: Price: $ 7.24 |
Air Vent Seal | 1 | $ 7.24 | ||
| 7 | 61610-95J00 Rear Fastener
SKU: 61610-95J00 Weight: 0.200000 Brand: Price: $ 29.40 |
Rear Fastener | 1 | $ 29.40 | ||
| 8 | 09159-06084 Nut (NLA)
SKU: 09159-06084 Weight: 0.100000 Brand: Price: $ 1.62 |
Nut (NLA) | 1 | $ 1.62 | ||
| 9 | 61443-88L20 Starboard Engine Cover Stripe
SKU: 61443-88L20 Weight: 0.100000 Brand: Price: $ 18.27 |
Starboard Engine Cover Stripe | 1 | $ 18.27 | ||
| 10 | 61453-88L20 Port Engine Cover Stripe
SKU: 61453-88L20 Weight: 0.250000 Brand: Price: $ 18.27 |
Port Engine Cover Stripe | 1 | $ 18.27 | ||
| 11 | 68111-88L10 Emblem Mark (S)
SKU: 68111-88L10 Weight: 0.060000 Brand: Price: $ 11.30 |
Emblem Mark (S) | 1 | $ 11.30 | ||
| 12 | 61620-95J00 Rear Fastener Bracket
SKU: 61620-95J00 Weight: 0.060000 Brand: Price: $ 10.84 |
Rear Fastener Bracket | 1 | $ 10.84 | ||
| 14 | 09229-04018 Rivet
SKU: 09229-04018 Weight: 0.060000 Brand: Price: $ 1.72 |
Rivet | 2 | $ 1.72 | ||
| 15 | 09229-04005 Rivet
SKU: 09229-04005 Weight: 0.060000 Brand: Price: $ 1.66 |
Rivet | 2 | $ 1.66 | ||
| 16 | 61422-88L40 Front Emblem Mark (50)
SKU: 61422-88L40 Weight: 0.200000 Brand: Price: $ 9.27 |
Front Emblem Mark (50) | 1 | $ 9.27 | ||
| 17 | 61435-88L70 Emblem Mark (50)
SKU: 61435-88L70 Weight: 0.200000 Brand: Price: $ 10.03 |
Emblem Mark (50) | 1 | $ 10.03 | ||
| 18 | 61458-90J01 Engine Cover Label
SKU: 61458-90J01 Weight: 0.125000 Brand: Price: $ 4.27 |
Engine Cover Label | 1 | $ 4.27 | ||
| 19 | 09800-81812 Tool Set
SKU: 09800-81812 Weight: 1.600000 Brand: Price: $ 81.82 |
Tool Set | 1 | $ 81.82 | ||
| 20 | 18210-88L00 Starter Knob Assembly
SKU: 18210-88L00 Weight: 0.500000 Brand: Price: $ 13.57 |
Starter Knob Assembly | 1 | $ 13.57 | ||
| 21 | 990C0-65024 DF40A / DF50A / DF60A Genuine Engine Cover
SKU: 990C0-65024 Weight: 1.000000 Brand: Price: $ 103.49 |
DF40A / DF50A / DF60A Genuine Engine Cover | 1 | $ 103.49 | Optional | |
| 22 | 99011-88L80-03B Owners Manual DF40A/DF50A/DF60A - 2019
SKU: 99011-88L80-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF40A/DF50A/DF60A - 2019 | 1 | $ 20.00 | ||
| 23 | 17917-87L00 Water Flush Connector
SKU: 17917-87L00 Weight: 0.060000 Brand: Price: $ 10.07 |
Water Flush Connector | 1 | $ 10.07 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
