Suzuki DF 50A Parts Listings - 2019
S/N 05004F-910001 to 05004F-91XXXX

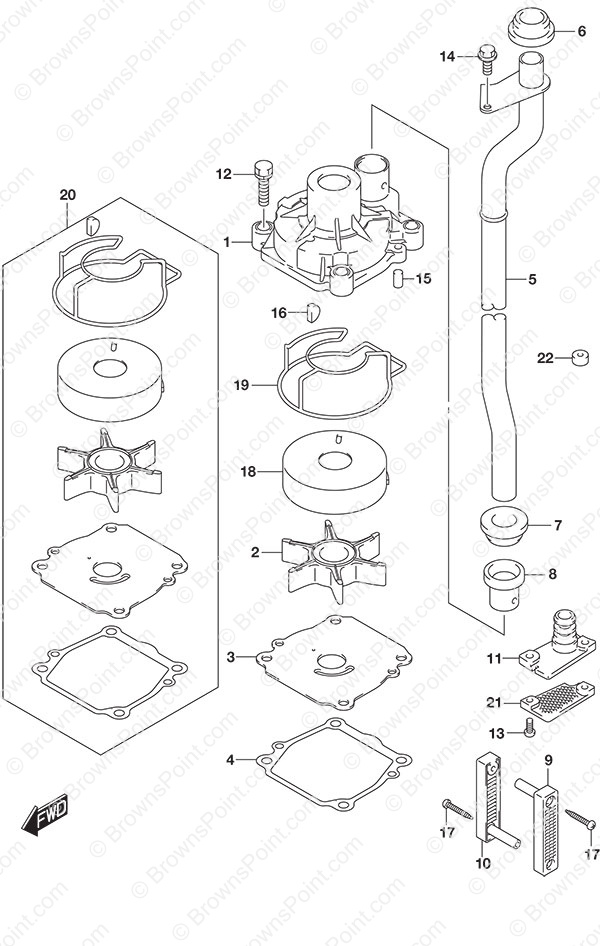

Fig. 160B - Water Pump High Thrust
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 17410-99E10 Water Pump Case
SKU: 17410-99E10 Weight: 0.500000 Brand: Price: $ 74.53 |
Water Pump Case | 1 | $ 74.53 | ||
| 2 | 17461-87E12 Water Pump Impeller
SKU: 17461-87E12 Weight: 0.120000 Brand: Price: $ 53.08 |
Water Pump Impeller | 1 | $ 53.08 | ||
| 3 | 17471-99E00 Water Pump Plate
SKU: 17471-99E00 Weight: 0.187500 Brand: Price: $ 12.72 |
Water Pump Plate | 1 | $ 12.72 | ||
| 4 | 17472-87E10 Water Pump Plate Gasket
SKU: 17472-87E10 Weight: 0.060000 Brand: Price: $ 6.07 |
Water Pump Plate Gasket | 1 | $ 6.07 | ||
| 5 | 17560-88L30 Water Tube (L)
SKU: 17560-88L30 Weight: 0.500000 Brand: Price: $ 65.96 |
Water Tube (L) | 1 | $ 65.96 | ||
| 6 | 17562-87L00 Replaced by 17562-87L01
SKU: 17562-87L00 Weight: 0.060000 Brand: Price: $ 3.46 |
Replaced by 17562-87L01 | 1 | $ 3.46 | ||
| 7 | 17562-87L00 Replaced by 17562-87L01
SKU: 17562-87L00 Weight: 0.060000 Brand: Price: $ 3.46 |
Replaced by 17562-87L01 | 1 | $ 3.46 | ||
| 8 | 17564-87D00 Water Pump Case Bushing
SKU: 17564-87D00 Weight: 0.060000 Brand: Price: $ 11.80 |
Water Pump Case Bushing | 1 | $ 11.80 | ||
| 9 | 17631-90J00 Port Side Water Filter
SKU: 17631-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Port Side Water Filter | 1 | $ 9.21 | ||
| 10 | 17632-90J00 Starboard Side Water Filter
SKU: 17632-90J00 Weight: 0.060000 Brand: Price: $ 9.21 |
Starboard Side Water Filter | 1 | $ 9.21 | ||
| 11 | 17635-90J00 Sub Water Tube Plug
SKU: 17635-90J00 Weight: 0.060000 Brand: Price: $ 5.43 |
Sub Water Tube Plug | 1 | $ 5.43 | ||
| 12 | 29116-93J10 Bolt (8x35)
SKU: 29116-93J10 Weight: 0.060000 Brand: Price: $ 2.90 |
Bolt (8x35) | 4 | $ 2.90 | ||
| 13 | 09125-05046 Screw (5x12)
SKU: 09125-05046 Weight: 0.060000 Brand: Price: $ 1.82 |
Screw (5x12) | 2 | $ 1.82 | ||
| 14 | 09116-06236 Bolt (6x16)
SKU: 09116-06236 Weight: 0.060000 Brand: Price: $ 1.78 |
Bolt (6x16) | 1 | $ 1.78 | ||
| 15 | 09202-06031 Knock Pin (6x12)
SKU: 09202-06031 Weight: 0.060000 Brand: Price: $ 2.07 |
Knock Pin (6x12) | 2 | $ 2.07 | ||
| 16 | 09420-04009 Water Pump Key
SKU: 09420-04009 Weight: 0.060000 Brand: Price: $ 5.94 |
Water Pump Key | 1 | $ 5.94 | ||
| 17 | 09132-04034 Screw (4x18)
SKU: 09132-04034 Weight: 0.060000 Brand: Price: $ 2.21 |
Screw (4x18) | 2 | $ 2.21 | ||
| 18 | 17413-99E11 Water Pump Case Sleeve
SKU: 17413-99E11 Weight: 0.160000 Brand: Price: $ 34.88 |
Water Pump Case Sleeve | 1 | $ 34.88 | ||
| 19 | 17416-99E11 Water Pump Case Seal No. 1
SKU: 17416-99E11 Weight: 0.060000 Brand: Price: $ 6.56 |
Water Pump Case Seal No. 1 | 1 | $ 6.56 | ||
| 20 | 17400-99E12 Water Pump Repair Kit DF50AV/60AV
SKU: 17400-99E12 Weight: 0.340000 Brand: Price: $ 73.69 |
Water Pump Repair Kit DF50AV/60AV | 1 | $ 73.69 | Optional | |
| 21 | 17635-87E10 Gear Case Plate
SKU: 17635-87E10 Weight: 0.250000 Brand: Price: $ 109.56 |
Gear Case Plate | 1 | $ 109.56 | Optional | |
| 22 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | Opt: Fresh Water Use Only |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
