Suzuki DF 150A Parts Listings - 2019
S/N 15003F-910001 to 15003F-91XXXX
S/N 15003Z-910001 to 15003Z-91XXXX

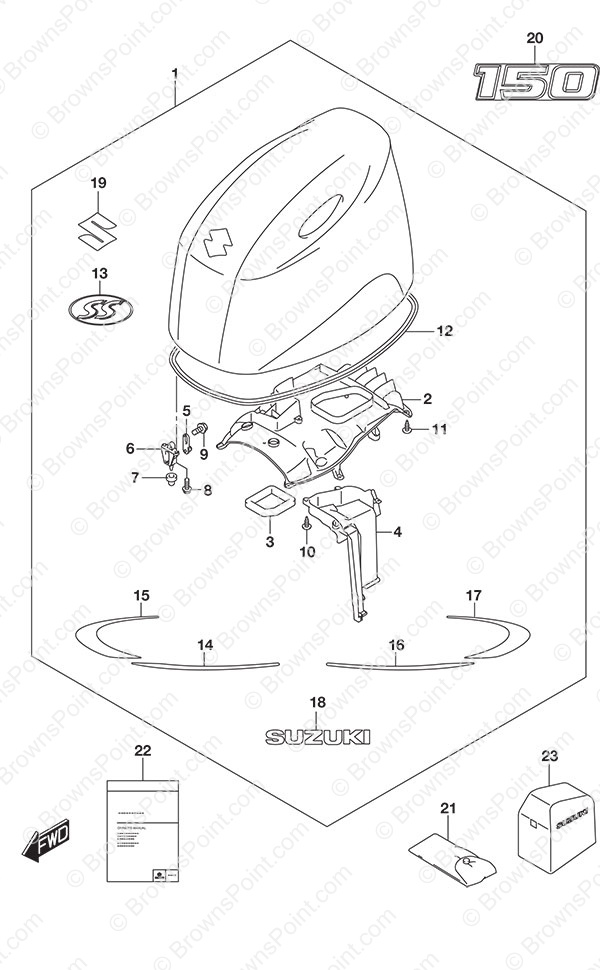

Fig. 420B - Engine Cover SS Model
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 61404-96800-YKV Engine Cover Set
SKU: 61404-96800-YKV Weight: 40.000000 Brand: Price: $ 1,339.97 |
Engine Cover Set | 1 | $ 1,339.97 | Matte Black | |
| 2 | 61433-96L10 Air Intake Inner Cover
SKU: 61433-96L10 Weight: 1.000000 Brand: Price: $ 338.36 |
Air Intake Inner Cover | 1 | $ 338.36 | ||
| 3 | 61476-96J10 Air Vent Seal
SKU: 61476-96J10 Weight: 0.250000 Brand: Price: $ 10.22 |
Air Vent Seal | 1 | $ 10.22 | ||
| 4 | 61565-96L00 Air Intake Duct
SKU: 61565-96L00 Weight: 1.000000 Brand: Price: $ 39.45 |
Air Intake Duct | 1 | $ 39.45 | ||
| 5 | 61610-93J01 FASTENER COMP
SKU: 61610-93J01 Weight: 0.000000 Brand: Price: $ 12.24 |
FASTENER COMP | 3 | $ 12.24 | ||
| 6 | 61621-93J01 Fastener Bracket
SKU: 61621-93J01 Weight: 0.125000 Brand: Price: $ 18.75 |
Fastener Bracket | 3 | $ 18.75 | ||
| 7 | 09329-10024 Cushion
SKU: 09329-10024 Weight: 0.060000 Brand: Price: $ 4.06 |
Cushion | 3 | $ 4.06 | ||
| 8 | 01547-06167 BOLT 6X16
SKU: 01547-06167 Weight: 0.060000 Brand: Price: $ 1.66 |
BOLT 6X16 | 6 | $ 1.66 | ||
| 9 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 3 | $ 2.33 | ||
| 10 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 5 | $ 1.70 | ||
| 11 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.70 |
SCREW | 11 | $ 1.70 | ||
| 12 | 61112-96L00 Engine Cover Seal
SKU: 61112-96L00 Weight: 1.000000 Brand: Price: $ 47.41 |
Engine Cover Seal | 1 | $ 47.41 | ||
| 13 | 61424-93J00 Emblem Mark (SS)
SKU: 61424-93J00 Weight: 0.100000 Brand: Price: $ 38.23 |
Emblem Mark (SS) | 1 | $ 38.23 | ||
| 14 | 61443-96L00 Starboard Engine Cover Stripe
SKU: 61443-96L00 Weight: 0.250000 Brand: Price: $ 26.37 |
Starboard Engine Cover Stripe | 1 | $ 26.37 | ||
| 15 | 61444-96L00 Starboard Upper Engine Cover Stripe
SKU: 61444-96L00 Weight: 0.250000 Brand: Price: $ 32.01 |
Starboard Upper Engine Cover Stripe | 1 | $ 32.01 | ||
| 16 | 61453-96L00 Port Engine Cover Stripe
SKU: 61453-96L00 Weight: 0.250000 Brand: Price: $ 26.37 |
Port Engine Cover Stripe | 1 | $ 26.37 | ||
| 17 | 61454-96L00 Port Upper Engine Cover Stripe
SKU: 61454-96L00 Weight: 0.250000 Brand: Price: $ 32.01 |
Port Upper Engine Cover Stripe | 1 | $ 32.01 | ||
| 18 | 61441-98L00 Suzuki Mark
SKU: 61441-98L00 Weight: 0.250000 Brand: Price: $ 109.21 |
Suzuki Mark | 2 | $ 109.21 | ||
| 19 | 77811-54GC0-0PG Chrome S Emblem
SKU: 77811-54GC0-0PG Weight: 0.250000 Brand: Price: $ 20.13 |
Chrome S Emblem | 1 | $ 20.13 | ||
| 20 | 61435-96J60 Emblem Mark (150)
SKU: 61435-96J60 Weight: 0.125000 Brand: Price: $ 29.99 |
Emblem Mark (150) | 1 | $ 29.99 | ||
| 21 | 09800-81850 Tool Set
SKU: 09800-81850 Weight: 1.060000 Brand: Price: $ 55.30 |
Tool Set | 1 | $ 55.30 | ||
| 22 | 99011-96L90-03B Owners Manual DF150A/175A/200A - 2019
SKU: 99011-96L90-03B Weight: 0.250000 Brand: Price: $ 20.00 |
Owners Manual DF150A/175A/200A - 2019 | 1 | $ 20.00 | ||
| 23 | 990C0-65031 DF 150AP/175AP/200A/200AP Genuine Engine Cover
SKU: 990C0-65031 Weight: 3.500000 Brand: Price: $ 142.09 |
DF 150AP/175AP/200A/200AP Genuine Engine Cover | 1 | $ 142.09 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
