Suzuki DF 25A Parts Listings - 2019
S/N 02504F-910001 to 02504F-91XXXX

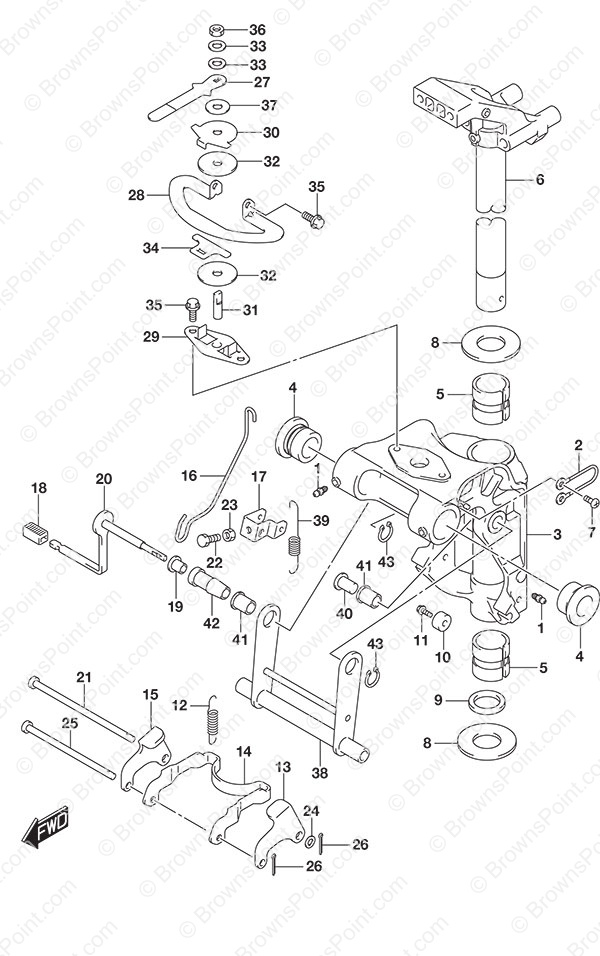

Fig. 336A - Swivel Bracket Non-Remote Control
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 22511-99011 Grease Nipple
SKU: 22511-99011 Weight: 0.060000 Brand: Price: $ 3.36 |
Grease Nipple | 4 | $ 3.36 | ||
| 2 | 36894-87D00 Wire Lead (L:195)
SKU: 36894-87D00 Weight: 0.060000 Brand: Price: $ 12.66 |
Wire Lead (L:195) | 1 | $ 12.66 | ||
| 3-1 | 43111-94L00-YAY Swivel Bracket (S)
SKU: 43111-94L00-YAY Weight: 5.000000 Brand: Price: $ 122.99 |
Swivel Bracket (S) | 1 | $ 122.99 | w/Transom (S) | |
| 3-2 | 43111-94L10-YAY Swivel Bracket (L)
SKU: 43111-94L10-YAY Weight: 5.000000 Brand: Price: $ 143.32 |
Swivel Bracket (L) | 1 | $ 143.32 | w/Transom (L) | |
| 4 | 43211-87JL0 Swivel Bracket Bushing
SKU: 43211-87JL0 Weight: 0.100000 Brand: Price: $ 33.39 |
Swivel Bracket Bushing | 2 | $ 33.39 | ||
| 5 | 43711-94L00 Steering Bushing
SKU: 43711-94L00 Weight: 0.250000 Brand: Price: $ 5.77 |
Steering Bushing | 2 | $ 5.77 | ||
| 6-1 | 43750-94L00-YAY Steering Bracket (S)
SKU: 43750-94L00-YAY Weight: 5.000000 Brand: Price: $ 133.37 |
Steering Bracket (S) | 1 | $ 133.37 | w/Transom (S) | |
| 6-2 | 43750-94L10-YAY Steering Bracket (L)
SKU: 43750-94L10-YAY Weight: 5.000000 Brand: Price: $ 143.32 |
Steering Bracket (L) | 1 | $ 143.32 | w/Transom (L) | |
| 7 | 09125-06063 Screw (6x10)
SKU: 09125-06063 Weight: 0.060000 Brand: Price: $ 1.96 |
Screw (6x10) | 2 | $ 1.96 | ||
| 8 | 09160-30057 Washer
SKU: 09160-30057 Weight: 0.125000 Brand: Price: $ 5.08 |
Washer | 2 | $ 5.08 | ||
| 9 | 09282-30008 Seal
SKU: 09282-30008 Weight: 0.200000 Brand: Price: $ 9.02 |
Seal | 1 | $ 9.02 | ||
| 10-1 | 55321-87J01 Aluminum Anode
SKU: 55321-87J01 Weight: 0.125000 Brand: Price: $ 7.36 |
Aluminum Anode | 1 | $ 7.36 | w/Transom (L) | |
| 10-2 | 55321-87J11 Magnesium Anode
SKU: 55321-87J11 Weight: 0.125000 Brand: Price: $ 13.01 |
Magnesium Anode | 1 | $ 13.01 | w/Transom (L) Opt: Fresh Water Use Only | |
| 11 | 09103-06281 Bolt (6x14)
SKU: 09103-06281 Weight: 0.060000 Brand: Price: $ 2.99 |
Bolt (6x14) | 1 | $ 2.99 | w/Transom (L) | |
| 12 | 45211-94L00 Reverse Lock Arm Spring
SKU: 45211-94L00 Weight: 0.125000 Brand: Price: $ 3.93 |
Reverse Lock Arm Spring | 2 | $ 3.93 | ||
| 13 | 45221-94L00 Reverse Lock Arm Port Link
SKU: 45221-94L00 Weight: 0.125000 Brand: Price: $ 19.97 |
Reverse Lock Arm Port Link | 1 | $ 19.97 | ||
| 14 | 45231-94L00 Reverse Lock Arm
SKU: 45231-94L00 Weight: 0.125000 Brand: Price: $ 21.75 |
Reverse Lock Arm | 1 | $ 21.75 | ||
| 15 | 45241-94L00 Reverse Lock Arm Starboard Link
SKU: 45241-94L00 Weight: 0.125000 Brand: Price: $ 19.97 |
Reverse Lock Arm Starboard Link | 1 | $ 19.97 | ||
| 16 | 45252-94L00 Reverse Lever Link
SKU: 45252-94L00 Weight: 0.125000 Brand: Price: $ 3.35 |
Reverse Lever Link | 1 | $ 3.35 | ||
| 17 | 45253-94L00 Release Arm
SKU: 45253-94L00 Weight: 0.060000 Brand: Price: $ 5.26 |
Release Arm | 1 | $ 5.26 | ||
| 18 | 45255-94L00 Release Lever Rubber
SKU: 45255-94L00 Weight: 0.125000 Brand: Price: $ 2.67 |
Release Lever Rubber | 1 | $ 2.67 | ||
| 19 | 45257-94L00 Release Lever Bushing
SKU: 45257-94L00 Weight: 0.125000 Brand: Price: $ 12.06 |
Release Lever Bushing | 1 | $ 12.06 | ||
| 20 | 45260-94L00 Release Lever
SKU: 45260-94L00 Weight: 0.125000 Brand: Price: $ 17.78 |
Release Lever | 1 | $ 17.78 | ||
| 21 | 59211-94L00 Reverse Lock Arm Link Pin
SKU: 59211-94L00 Weight: 0.125000 Brand: Price: $ 15.47 |
Reverse Lock Arm Link Pin | 1 | $ 15.47 | ||
| 22 | 09100-06113 Bolt (6x16)
SKU: 09100-06113 Weight: 0.200000 Brand: Price: $ 1.93 |
Bolt (6x16) | 1 | $ 1.93 | ||
| 23 | 09140-06020 Nut (6mm)
SKU: 09140-06020 Weight: 0.060000 Brand: Price: $ 1.82 |
Nut (6mm) | 1 | $ 1.82 | ||
| 24 | 09160-06082 Washer (6.5x13x1.0)
SKU: 09160-06082 Weight: 0.060000 Brand: Price: $ 1.44 |
Washer (6.5x13x1.0) | 1 | $ 1.44 | ||
| 25 | 09200-06072 Pin
SKU: 09200-06072 Weight: 0.500000 Brand: Price: $ 12.48 |
Pin | 1 | $ 12.48 | ||
| 26 | 09204-01002 Cotter Pin
SKU: 09204-01002 Weight: 0.060000 Brand: Price: $ 1.70 |
Cotter Pin | 2 | $ 1.70 | ||
| 27 | 43411-89L00 Steering Adjuster Lever
SKU: 43411-89L00 Weight: 0.250000 Brand: Price: $ 19.48 |
Steering Adjuster Lever | 1 | $ 19.48 | ||
| 28 | 43415-94L01 Steering Adjust Plate (H)
SKU: 43415-94L01 Weight: 0.150000 Brand: Price: $ 12.14 |
Steering Adjust Plate (H) | 1 | $ 12.14 | ||
| 29 | 43420-89L00 Steering Adjust Friction Plate
SKU: 43420-89L00 Weight: 0.250000 Brand: Price: $ 12.75 |
Steering Adjust Friction Plate | 1 | $ 12.75 | ||
| 30 | 43425-89L00 Steering Adjust Upper Plate
SKU: 43425-89L00 Weight: 0.250000 Brand: Price: $ 9.14 |
Steering Adjust Upper Plate | 1 | $ 9.14 | ||
| 31 | 43512-89L00 Steering Adjust Thread Shaft
SKU: 43512-89L00 Weight: 0.250000 Brand: Price: $ 5.87 |
Steering Adjust Thread Shaft | 1 | $ 5.87 | ||
| 32 | 43515-88L00 Steering Adjust Friction Washer Plate
SKU: 43515-88L00 Weight: 0.250000 Brand: Price: $ 14.42 |
Steering Adjust Friction Washer Plate | 2 | $ 14.42 | ||
| 33 | 43516-89J00 Steering Adjuster Washer
SKU: 43516-89J00 Weight: 0.100000 Brand: Price: $ 15.32 |
Steering Adjuster Washer | 2 | $ 15.32 | ||
| 34 | 43517-89L00 Steering Adjuster Spacer
SKU: 43517-89L00 Weight: 0.100000 Brand: Price: $ 15.20 |
Steering Adjuster Spacer | 1 | $ 15.20 | ||
| 35 | 09116-06225 Bolt (6x16)
SKU: 09116-06225 Weight: 0.100000 Brand: Price: $ 2.60 |
Bolt (6x16) | 4 | $ 2.60 | ||
| 36 | 09159-08L02 Nut
SKU: 09159-08L02 Weight: 0.060000 Brand: Price: $ 3.70 |
Nut | 1 | $ 3.70 | ||
| 37 | 09161-08019 Washer (8.2x18x1.2)
SKU: 09161-08019 Weight: 0.250000 Brand: Price: $ 1.72 |
Washer (8.2x18x1.2) | 1 | $ 1.72 | ||
| 38 | 45710-94L00 Shallow Water Drive Arm
SKU: 45710-94L00 Weight: 0.500000 Brand: Price: $ 71.21 |
Shallow Water Drive Arm | 1 | $ 71.21 | ||
| 39 | 45722-94L00 Shallow Water Drive Arm Spring
SKU: 45722-94L00 Weight: 0.125000 Brand: Price: $ 1.80 |
Shallow Water Drive Arm Spring | 1 | $ 1.80 | ||
| 40 | 45741-94L00 Shallow Water Drive Arm Pin
SKU: 45741-94L00 Weight: 0.125000 Brand: Price: $ 10.92 |
Shallow Water Drive Arm Pin | 1 | $ 10.92 | ||
| 41 | 45751-94L00 Shallow Water Drive Arm Bushing
SKU: 45751-94L00 Weight: 0.125000 Brand: Price: $ 8.03 |
Shallow Water Drive Arm Bushing | 2 | $ 8.03 | ||
| 42 | 45761-94L00 Shallow Water Drive Arm Spacer
SKU: 45761-94L00 Weight: 0.125000 Brand: Price: $ 10.63 |
Shallow Water Drive Arm Spacer | 1 | $ 10.63 | ||
| 43 | 09380-12002 Snap Ring
SKU: 09380-12002 Weight: 0.060000 Brand: Price: $ 1.52 |
Snap Ring | 2 | $ 1.52 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
