Suzuki DF 25A Parts Listings - 2019
S/N 02504F-910001 to 02504F-91XXXX

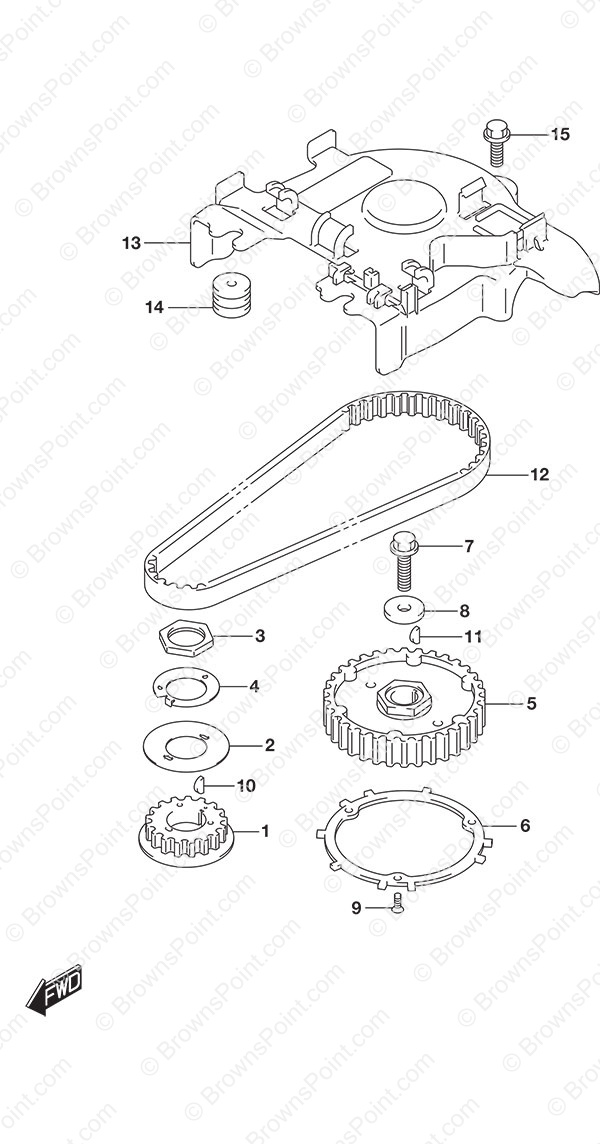

Fig. 120 - Timing Belt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 12631-94L00 Crankshaft Pulley
SKU: 12631-94L00 Weight: 1.000000 Brand: Price: $ 58.60 |
Crankshaft Pulley | 1 | $ 58.60 | ||
| 2 | 12635-89L00 Timing Belt Guide
SKU: 12635-89L00 Weight: 0.250000 Brand: Price: $ 7.82 |
Timing Belt Guide | 1 | $ 7.82 | ||
| 3 | 12637-89L00 Timing Pulley Nut
SKU: 12637-89L00 Weight: 0.250000 Brand: Price: $ 9.18 |
Timing Pulley Nut | 1 | $ 9.18 | ||
| 4 | 12638-89L00 Pulley Nut Lock Washer
SKU: 12638-89L00 Weight: 0.250000 Brand: Price: $ 4.03 |
Pulley Nut Lock Washer | 1 | $ 4.03 | ||
| 5 | 12741-94L00 Camshaft Pulley
SKU: 12741-94L00 Weight: 0.500000 Brand: Price: $ 73.93 |
Camshaft Pulley | 1 | $ 73.93 | ||
| 6 | 12744-94L00 Sensing Plate
SKU: 12744-94L00 Weight: 0.250000 Brand: Price: $ 12.82 |
Sensing Plate | 1 | $ 12.82 | ||
| 7 | 09103-08458 Bolt (8x30)
SKU: 09103-08458 Weight: 0.200000 Brand: Price: $ 4.38 |
Bolt (8x30) | 1 | $ 4.38 | ||
| 8 | 09160-09020 Washer
SKU: 09160-09020 Weight: 0.125000 Brand: Price: $ 3.87 |
Washer | 1 | $ 3.87 | ||
| 9 | 02122-04127 SCREW
SKU: 02122-04127 Weight: 0.100000 Brand: Price: $ 1.97 |
SCREW | 3 | $ 1.97 | ||
| 10 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 11 | 08341-31039 Woodruff Key
SKU: 08341-31039 Weight: 0.060000 Brand: Price: $ 1.91 |
Woodruff Key | 1 | $ 1.91 | ||
| 12 | 12761-94L00 Timing Belt
SKU: 12761-94L00 Weight: 1.000000 Brand: Price: $ 23.52 |
Timing Belt | 1 | $ 23.52 | ||
| 13 | 12764-94L00 Timing Belt Cover
SKU: 12764-94L00 Weight: 1.000000 Brand: Price: $ 16.63 |
Timing Belt Cover | 1 | $ 16.63 | ||
| 14 | 09320-05019 Cushion
SKU: 09320-05019 Weight: 0.200000 Brand: Price: $ 4.13 |
Cushion | 2 | $ 4.13 | ||
| 15 | 01550-0620C BOLT
SKU: 01550-0620C Weight: 0.060000 Brand: Price: $ 1.68 |
BOLT | 1 | $ 1.68 |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
