Suzuki DF 20A Parts Listings - 2019
S/N 02002F-910001 to 02002F-91XXXX

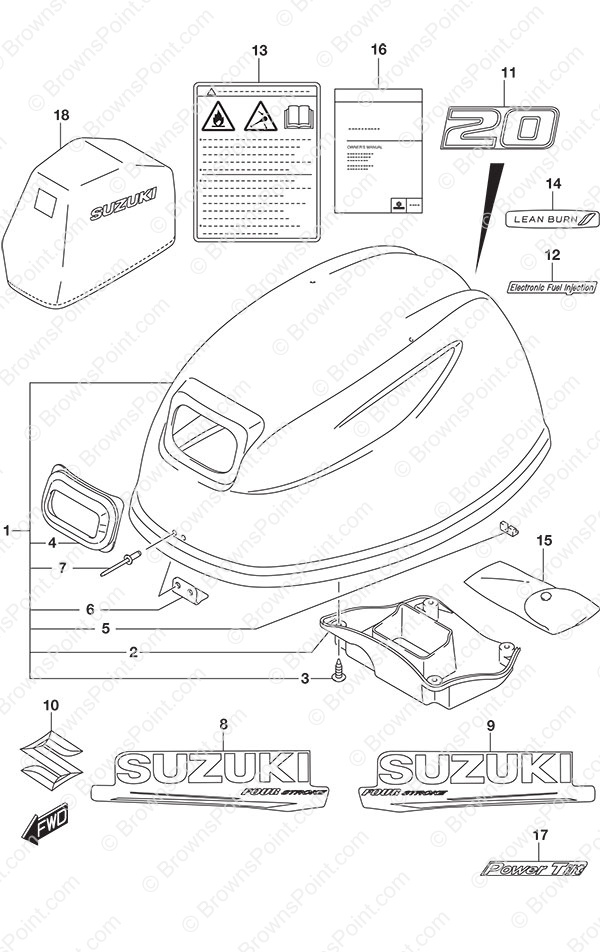

Fig. 420B - Engine Cover w/Power Tilt
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1-1 | 61400-89L40-YAY Engine Cover Assembly
SKU: 61400-89L40-YAY Weight: 6.000000 Brand: Price: $ 241.46 |
Engine Cover Assembly | 1 | $ 241.46 | Black | |
| 1-2 | 61400-89L40-Y5S Engine Cover Assembly
SKU: 61400-89L40-Y5S Weight: 6.000000 Brand: Price: $ 249.62 |
Engine Cover Assembly | 1 | $ 249.62 | White | |
| 2 | 61433-89L01 Air Intake Inner Cover
SKU: 61433-89L01 Weight: 1.000000 Brand: Price: $ 15.32 |
Air Intake Inner Cover | 1 | $ 15.32 | ||
| 3 | 03542-05169 SCREW
SKU: 03542-05169 Weight: 0.060000 Brand: Price: $ 1.76 |
SCREW | 4 | $ 1.76 | ||
| 4 | 61622-90L00 Recoil Starter Seal
SKU: 61622-90L00 Weight: 0.250000 Brand: Price: $ 26.13 |
Recoil Starter Seal | 1 | $ 26.13 | ||
| 5 | 61619-89L00 Engine Cover Fastener Cushion
SKU: 61619-89L00 Weight: 0.125000 Brand: Price: $ 4.75 |
Engine Cover Fastener Cushion | 1 | $ 4.75 | ||
| 6 | 61631-99J00 Engine Cover Hook
SKU: 61631-99J00 Weight: 0.060000 Brand: Price: $ 10.68 |
Engine Cover Hook | 1 | $ 10.68 | ||
| 7 | 09229-04005 Rivet
SKU: 09229-04005 Weight: 0.060000 Brand: Price: $ 1.71 |
Rivet | 1 | $ 1.71 | ||
| 8-1 | 61443-97L01-YAY Engine Cover Starboard Stripe
SKU: 61443-97L01-YAY Weight: 0.250000 Brand: Price: $ 8.46 |
Engine Cover Starboard Stripe | 1 | $ 8.46 | Black | |
| 8-2 | 61443-97L00-Y5S Engine Cover Starboard Stripe
SKU: 61443-97L00-Y5S Weight: 0.250000 Brand: Price: $ 9.37 |
Engine Cover Starboard Stripe | 1 | $ 9.37 | White | |
| 9-1 | 61453-97L01-YAY Engine Cover Port Stripe
SKU: 61453-97L01-YAY Weight: 0.250000 Brand: Price: $ 8.75 |
Engine Cover Port Stripe | 1 | $ 8.75 | Black | |
| 9-2 | 61453-97L00-Y5S Engine Cover Port Stripe
SKU: 61453-97L00-Y5S Weight: 0.250000 Brand: Price: $ 9.37 |
Engine Cover Port Stripe | 1 | $ 9.37 | White | |
| 10 | 77811-54GB0-0PG Chrome S Emblem
SKU: 77811-54GB0-0PG Weight: 0.250000 Brand: Price: $ 13.76 |
Chrome S Emblem | 1 | $ 13.76 | ||
| 11-1 | 61435-89L30-YAY Rear Emblem Mark (20)
SKU: 61435-89L30-YAY Weight: 0.060000 Brand: Price: $ 2.87 |
Rear Emblem Mark (20) | 1 | $ 2.87 | Black | |
| 11-2 | 61435-89L30-Y5S Rear Emblem Mark (20)
SKU: 61435-89L30-Y5S Weight: 0.060000 Brand: Price: $ 2.87 |
Rear Emblem Mark (20) | 1 | $ 2.87 | White | |
| 12-1 | 61446-89L10-YAY EFI Decal
SKU: 61446-89L10-YAY Weight: 0.060000 Brand: Price: $ 1.84 |
EFI Decal | 1 | $ 1.84 | Black | |
| 12-2 | 61446-89L10-Y5S EFI Decal
SKU: 61446-89L10-Y5S Weight: 0.060000 Brand: Price: $ 1.90 |
EFI Decal | 1 | $ 1.90 | White | |
| 13 | 61458-89L30 Engine Cover Label
SKU: 61458-89L30 Weight: 0.125000 Brand: Price: $ 3.66 |
Engine Cover Label | 1 | $ 3.66 | ||
| 14 | 61471-89L00 Lean Burn Decal
SKU: 61471-89L00 Weight: 0.125000 Brand: Price: $ 10.05 |
Lean Burn Decal | 1 | $ 10.05 | ||
| 15 | 59800-89L10 Tool Set
SKU: 59800-89L10 Weight: 1.000000 Brand: Price: $ 86.43 |
Tool Set | 1 | $ 86.43 | ||
| 16 | 99011-89L70-03B Owners Manual DF9.9B/15A/20A - 2019
SKU: 99011-89L70-03B Weight: 0.250000 Brand: Price: $ 17.49 |
Owners Manual DF9.9B/15A/20A - 2019 | 1 | $ 17.49 | ||
| 17-1 | 61447-89L00-YAY Power Tilt Emblem Mark
SKU: 61447-89L00-YAY Weight: 0.060000 Brand: Price: $ 2.42 |
Power Tilt Emblem Mark | 1 | $ 2.42 | Black | |
| 17-2 | 61447-89L00-Y5S Power Tilt Emblem Mark
SKU: 61447-89L00-Y5S Weight: 0.060000 Brand: Price: $ 2.46 |
Power Tilt Emblem Mark | 1 | $ 2.46 | White | |
| 18 | 990C0-65022 DF9.9A / DF9.9B / DF15A / DF20A Genuine Engine Cover
SKU: 990C0-65022 Weight: 1.500000 Brand: Price: $ 88.20 |
DF9.9A / DF9.9B / DF15A / DF20A Genuine Engine Cover | 1 | $ 88.20 | Optional |
Req Qty* is the total number of parts on the assembly. It is not the package quantity.
All Pricing is for each.
The information on this page is specific to the model and year and/or serial number shown in the header above.
Please verify your model and serial number before placing your order.
