Suzuki DF 15A Parts Listings - 2019
S/N 01504F-910001 to 01504F-91XXXX

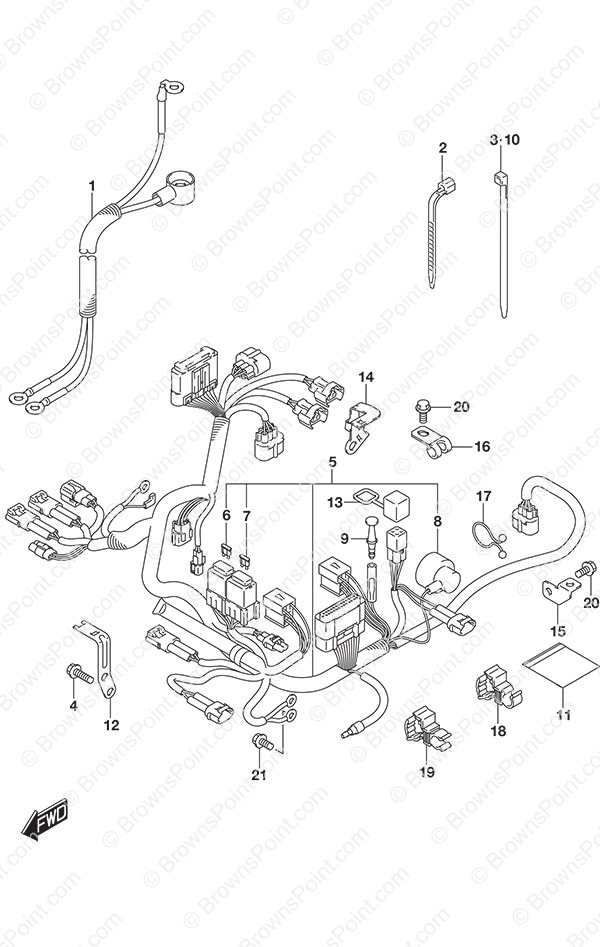

Fig. 322A - Harness
| Ref# | Part Number | Description | Req Qty* | Price Each | Order | Remarks |
|---|---|---|---|---|---|---|
| 1 | 33810-89L10 Starter Cable
SKU: 33810-89L10 Weight: 2.000000 Brand: Price: $ 59.57 |
Starter Cable | 1 | $ 59.57 | w/Electric Starter | |
| 2 | 09407-14403 Clamp (L:125)
SKU: 09407-14403 Weight: 0.060000 Brand: Price: $ 2.27 |
Clamp (L:125) | 1 | $ 2.27 | w/Electric Starter | |
| 3 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 1 | $ 3.09 | w/Electric Starter | |
| 4 | 01547-0616C BOLT,HARNESS B
SKU: 01547-0616C Weight: 0.060000 Brand: Price: $ 1.58 |
BOLT,HARNESS B | 2 | $ 1.58 | w/Electric Starter | |
| 5-1 | 36610-89LB0 Wiring Harness Assembly
SKU: 36610-89LB0 Weight: 2.000000 Brand: Price: $ 262.60 |
Wiring Harness Assembly | 1 | $ 262.60 | Up to Prodution Dec 2018 w/Electric Starter | |
| 5-2 | 36610-89LG2 HARNESS ASSY,WI
SKU: 36610-89LG2 Weight: 0.000000 Brand: Price: $ 179.85 |
HARNESS ASSY,WI | 1 | $ 179.85 | From Production Jan 2019 w/Electric Starter | |
| 5-3 | 36610-89LC1 HARNESS ASSY,WI
SKU: 36610-89LC1 Weight: 0.000000 Brand: Price: $ 143.90 |
HARNESS ASSY,WI | 1 | $ 143.90 | w/Manual Starter | |
| 6 | 09481-10501 10 Amp Fuse
SKU: 09481-10501 Weight: 0.062500 Brand: Price: $ 2.06 |
10 Amp Fuse | 1 | $ 2.06 | w/Electric Starter | |
| 7 | 09481-30501 30 Amp Fuse
SKU: 09481-30501 Weight: 0.060000 Brand: Price: $ 2.33 |
30 Amp Fuse | 1 | $ 2.33 | w/Electric Starter | |
| 8 | 36618-43410 Oil Pressure Switch Cap (NLA)
SKU: 36618-43410 Weight: 0.250000 Brand: Price: $ 2.60 |
Oil Pressure Switch Cap (NLA) | 1 | $ 2.60 | ||
| 9 | 36615-96300 Resin Terminal
SKU: 36615-96300 Weight: 0.060000 Brand: Price: $ 1.31 |
Resin Terminal | 1 | $ 1.31 | ||
| 10-1 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 4 | $ 3.09 | w/Electric Starter | |
| 10-2 | 09407-14407 Clamp (L:140)
SKU: 09407-14407 Weight: 0.060000 Brand: Price: $ 3.09 |
Clamp (L:140) | 5 | $ 3.09 | w/Manual Starter | |
| 11 | 32916-89L00 Connector Cover
SKU: 32916-89L00 Weight: 0.250000 Brand: Price: $ 7.30 |
Connector Cover | 1 | $ 7.30 | w/Electric Starter | |
| 12 | 36617-89L10 Harness Bracket (NLA)
SKU: 36617-89L10 Weight: 0.250000 Brand: Price: $ 5.23 |
Harness Bracket (NLA) | 1 | $ 5.23 | w/Electric Starter | |
| 13 | 33634-96J00 Service Connector Cap
SKU: 33634-96J00 Weight: 0.125000 Brand: Price: $ 7.28 |
Service Connector Cap | 1 | $ 7.28 | ||
| 14 | 36617-89L01 Harness Bracket
SKU: 36617-89L01 Weight: 0.060000 Brand: Price: $ 0.00 |
Harness Bracket | 1 | $ 0.00 | ||
| 15 | 36617-91J00 Switch Lead Bracket (NLA)
SKU: 36617-91J00 Weight: 0.250000 Brand: Price: $ 2.58 |
Switch Lead Bracket (NLA) | 1 | $ 2.58 | ||
| 16 | 09403-08417 Clamp
SKU: 09403-08417 Weight: 0.100000 Brand: Price: $ 2.48 |
Clamp | 1 | $ 2.48 | ||
| 17 | 09408-00340 Clamp
SKU: 09408-00340 Weight: 0.060000 Brand: Price: $ 0.00 |
Clamp | 1 | $ 0.00 | ||
| 18 | 09408-00252 Clamp (NLA)
SKU: 09408-00252 Weight: 0.250000 Brand: Price: $ 2.16 |
Clamp (NLA) | 1 | $ 2.16 | ||
| 19 | 09408-00338 Clamp
SKU: 09408-00338 Weight: 0.060000 Brand: Price: $ 0.00 |
Clamp | 1 | $ 0.00 | ||
| 20 | 01550-0612C BOLT
SKU: 01550-0612C Weight: 0.060000 Brand: Price: $ 1.73 |
BOLT | 2 | $ 1.73 | ||
| 21 | 01550-06127 BOLT
SKU: 01550-06127 Weight: 0.060000 Brand: Price: $ 2.33 |
BOLT | 1 | $ 2.33 |
